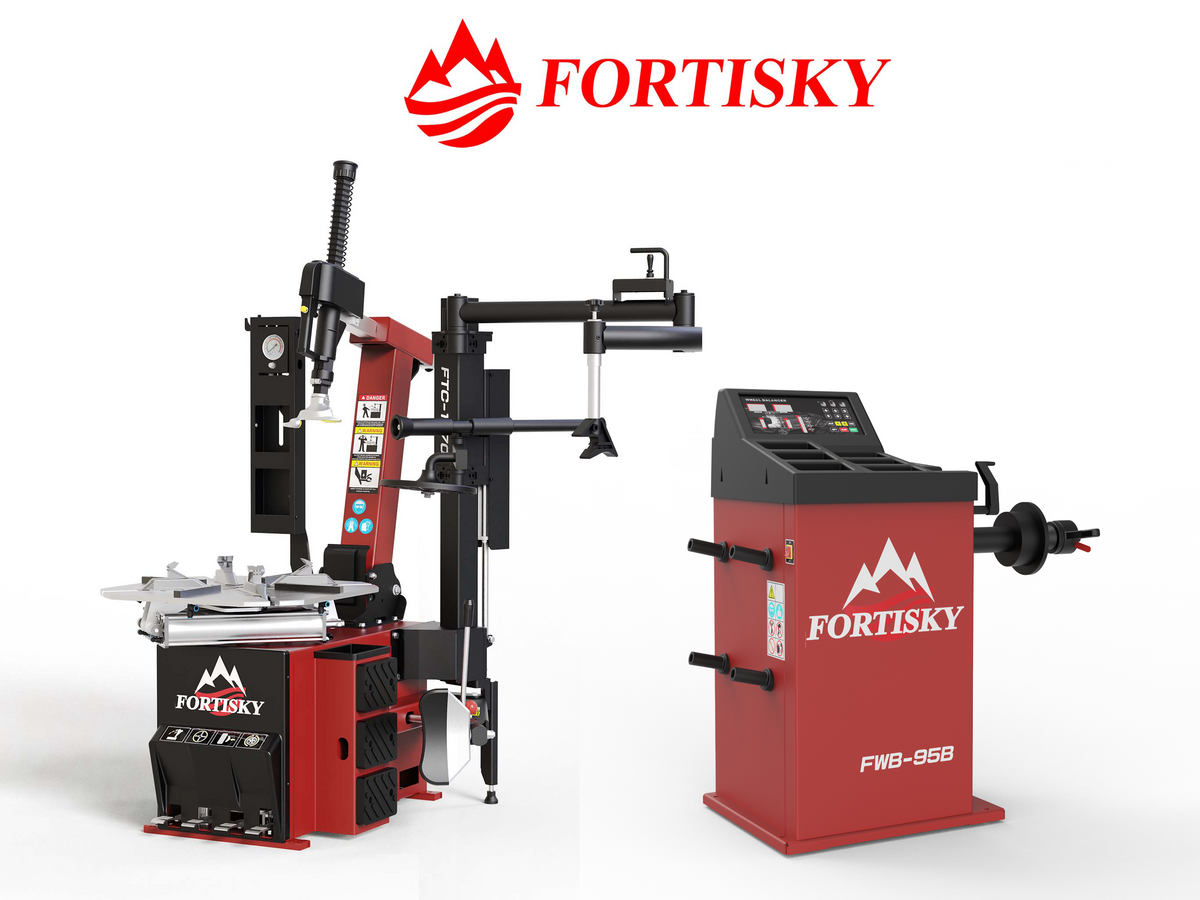

Fortisky | Tilt Back Tire Changer & Wheel Balancer Combo FTC-1670 + FWB-95B

Stiff sidewalls, low profiles and big rims are where tire day turns into a wrestling match: knee on the tire, bar in both hands, one slip away from a gouged wheel. The FTC-1670's helper arm pushes the tire down for you and its tilt-back column swings out of the way, so you're running the machine instead of fighting the tire. The FWB-95B balancer finishes the job.

Both machines run on regular 110V power, and the pair is $606 less than buying both machines separately on our site. One note: the FWB-95B balances up to 26 inches, so if you run 27 or 28 inch wheels, go with the FTC-1670 + FWB-8823 combo. SKU: 1670-95B

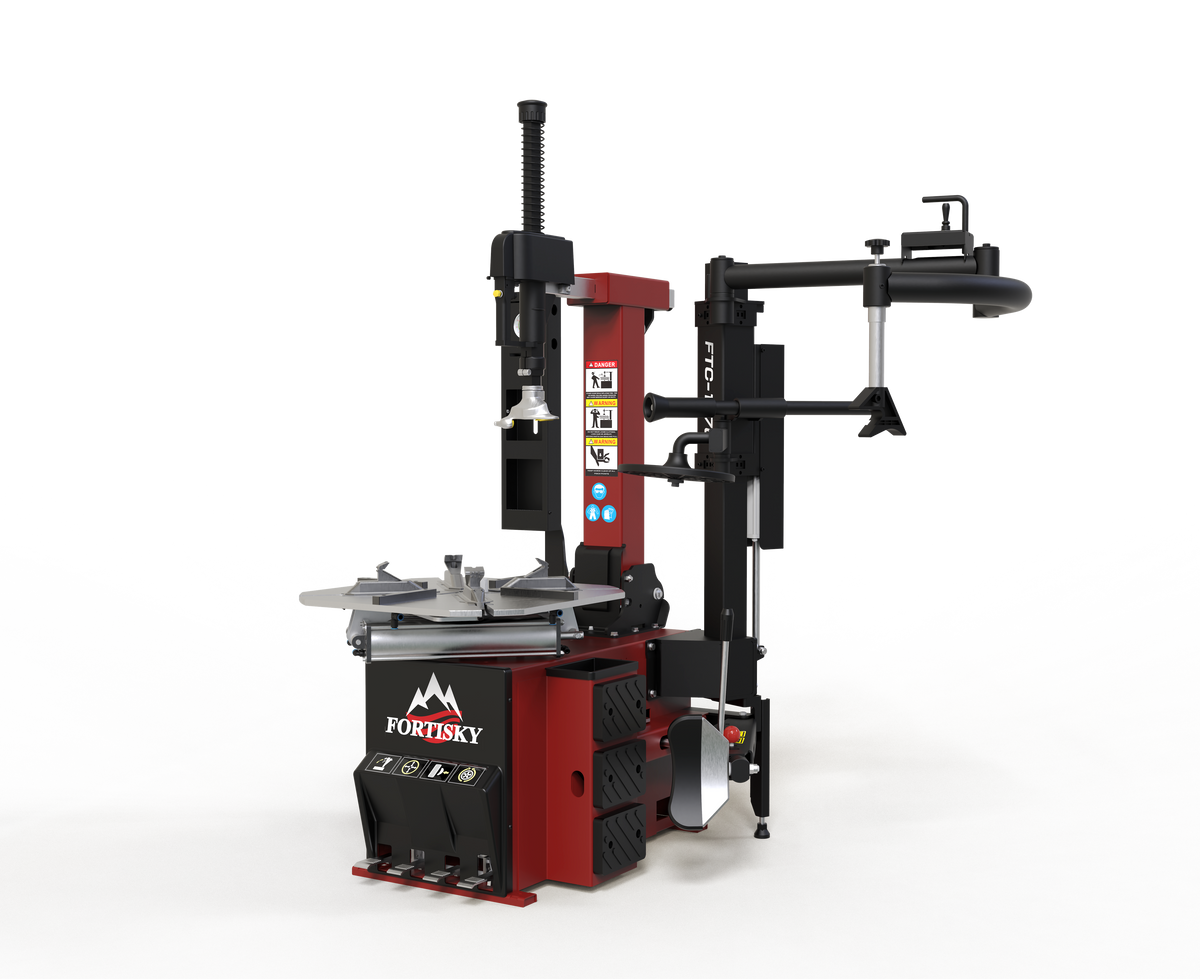

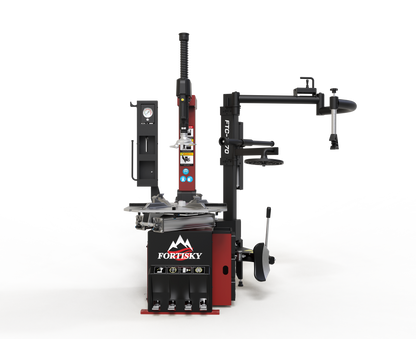

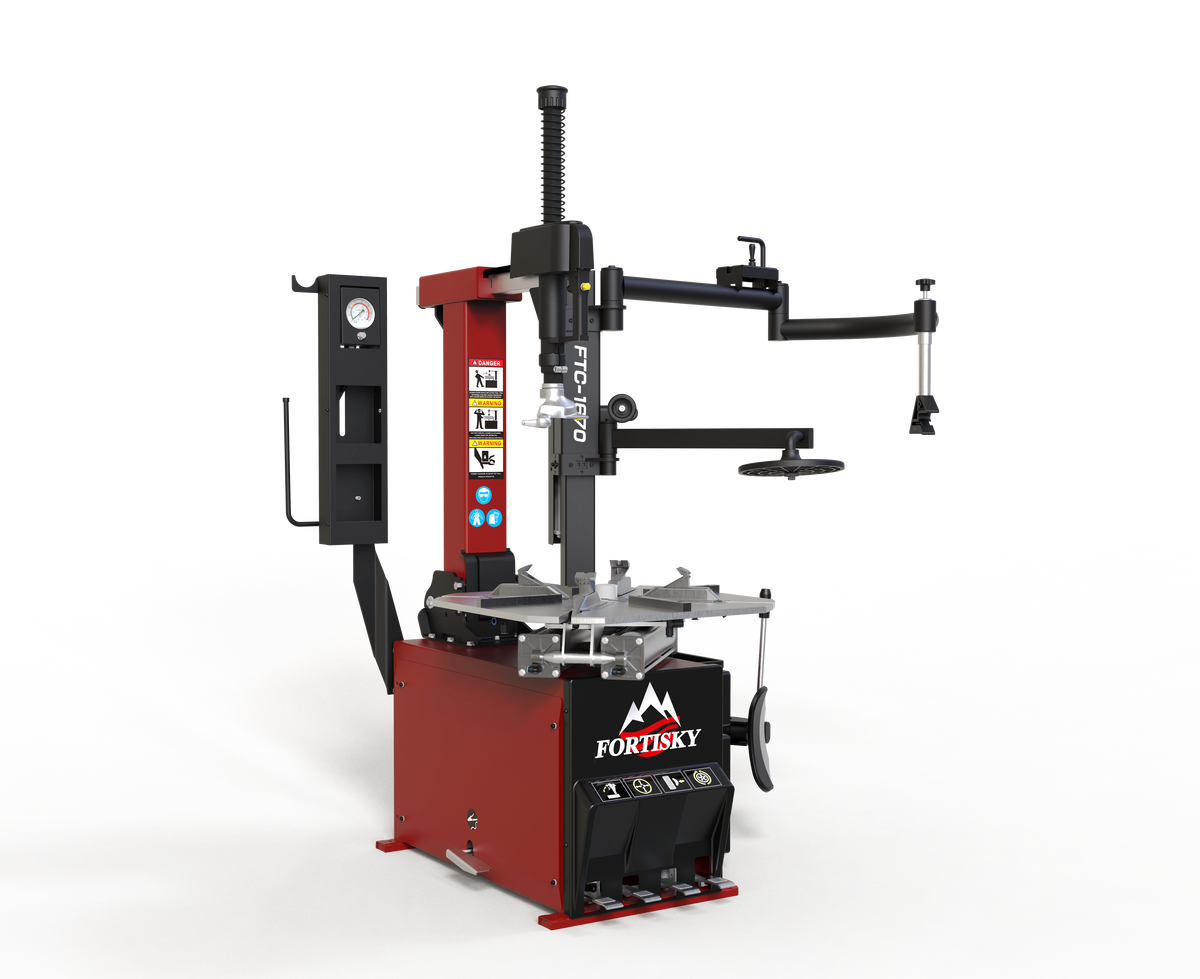

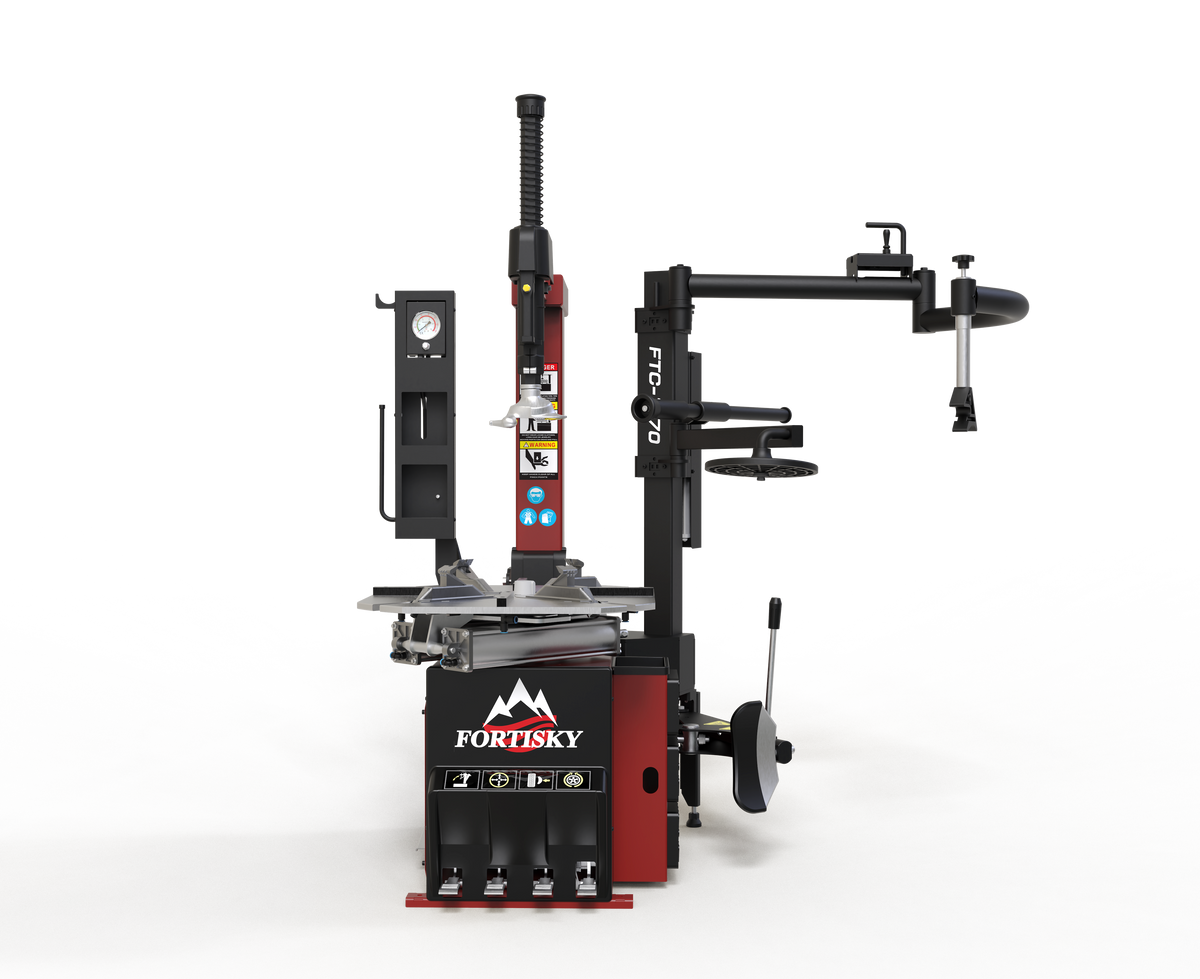

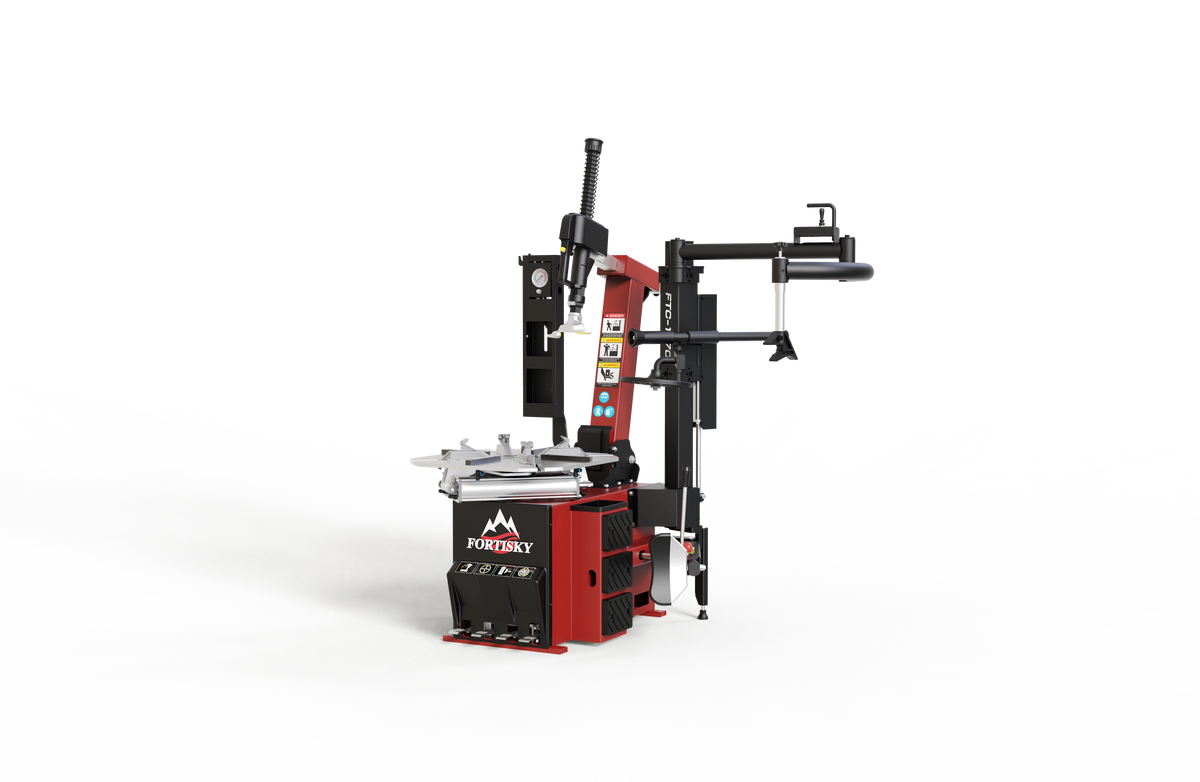

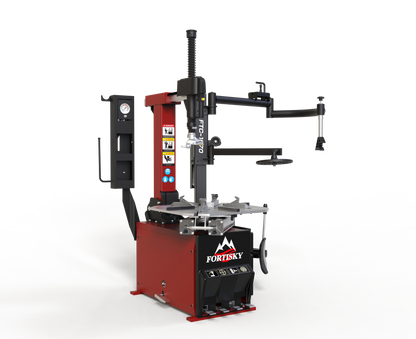

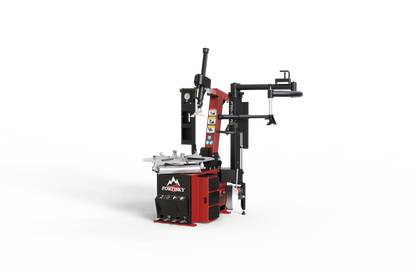

FTC-1670 Tire Changer

• Pneumatic tilt-back column pivots out of the way for maximum workspace clearance during mount and demount
• Automatic push-pull locking holds the column securely in both the working and open positions
• Included helper arm connects to the column for three-point tire push on large or stiff sidewall tires

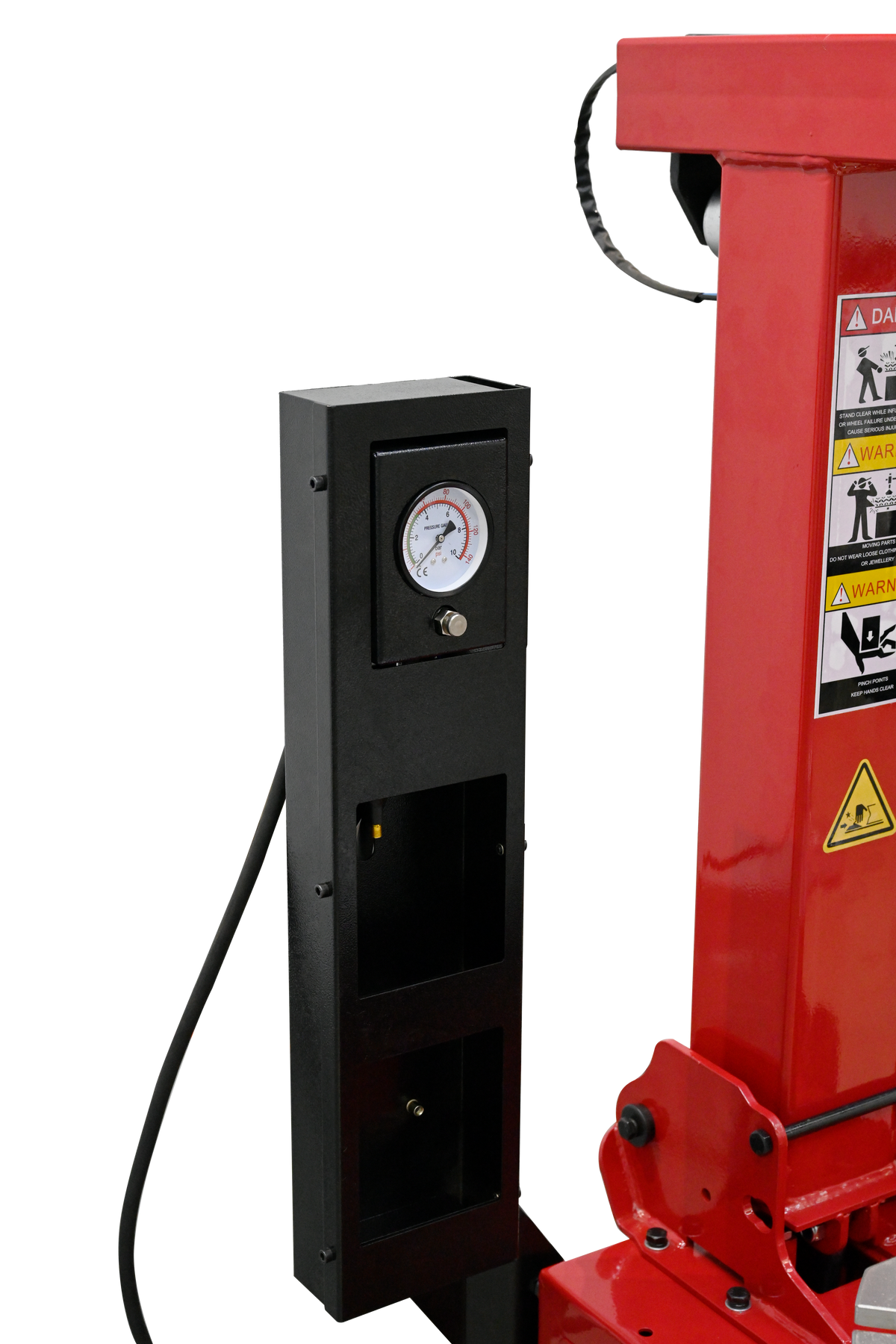

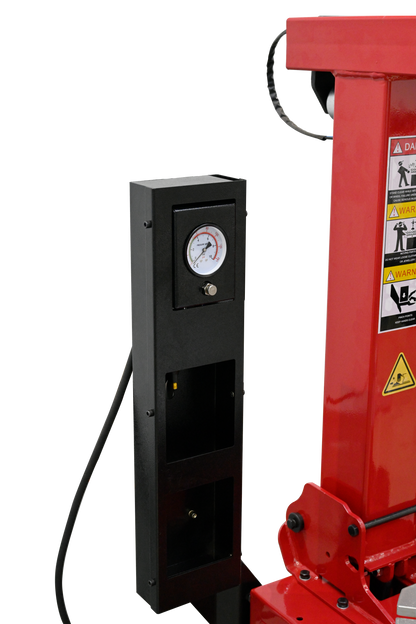

• Turbo blast inflation feeds directly through the machine for fast, powerful bead seating
• Double-button bead blast design prevents accidental activation

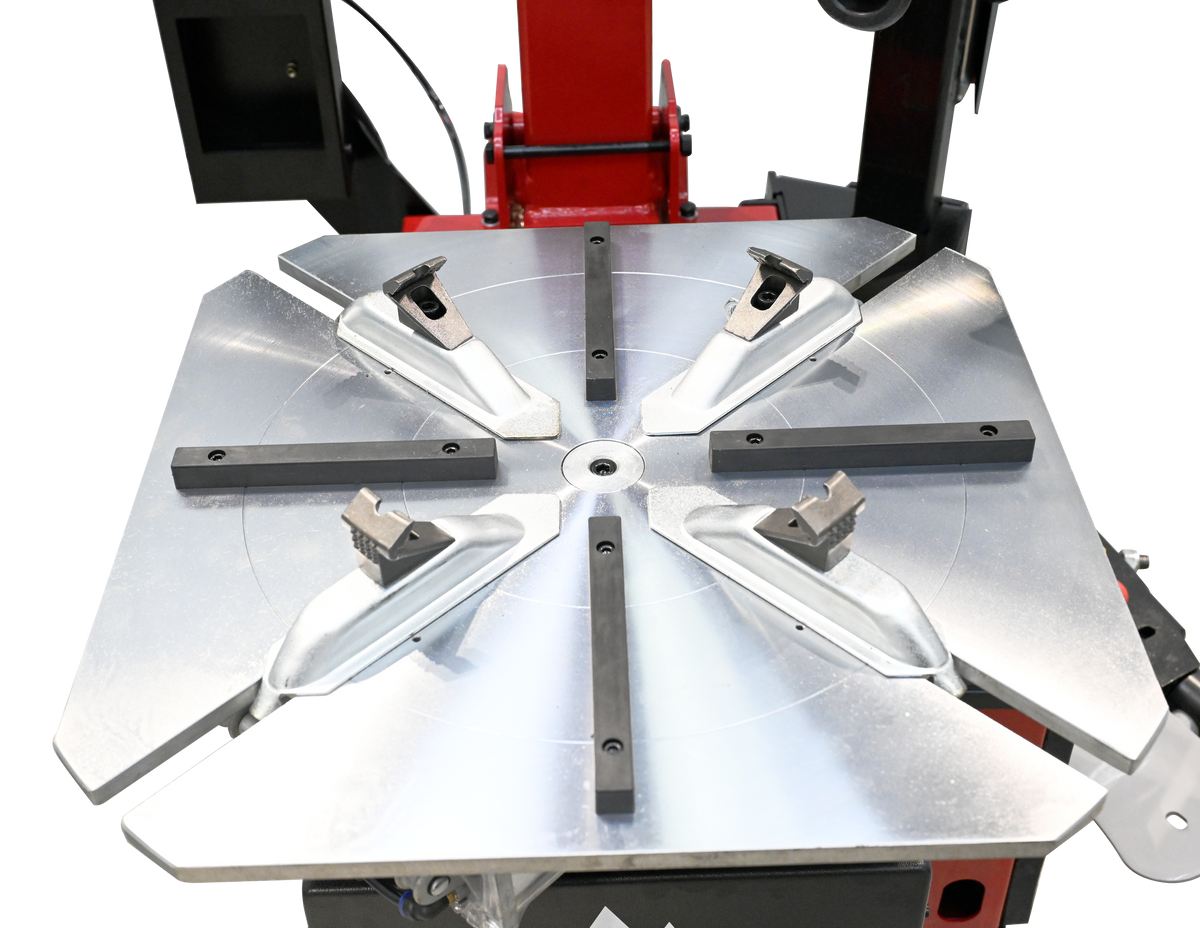

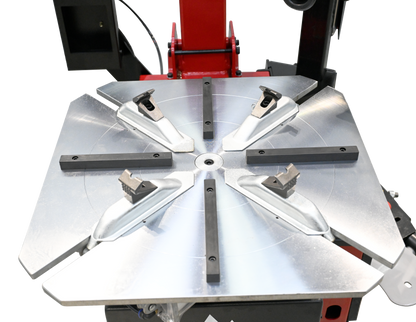

• Central bead pressing system rapidly clamps the rim with the four-jaw auto-centering turntable
• Synchronized linkage turntable grips consistently from the outside in

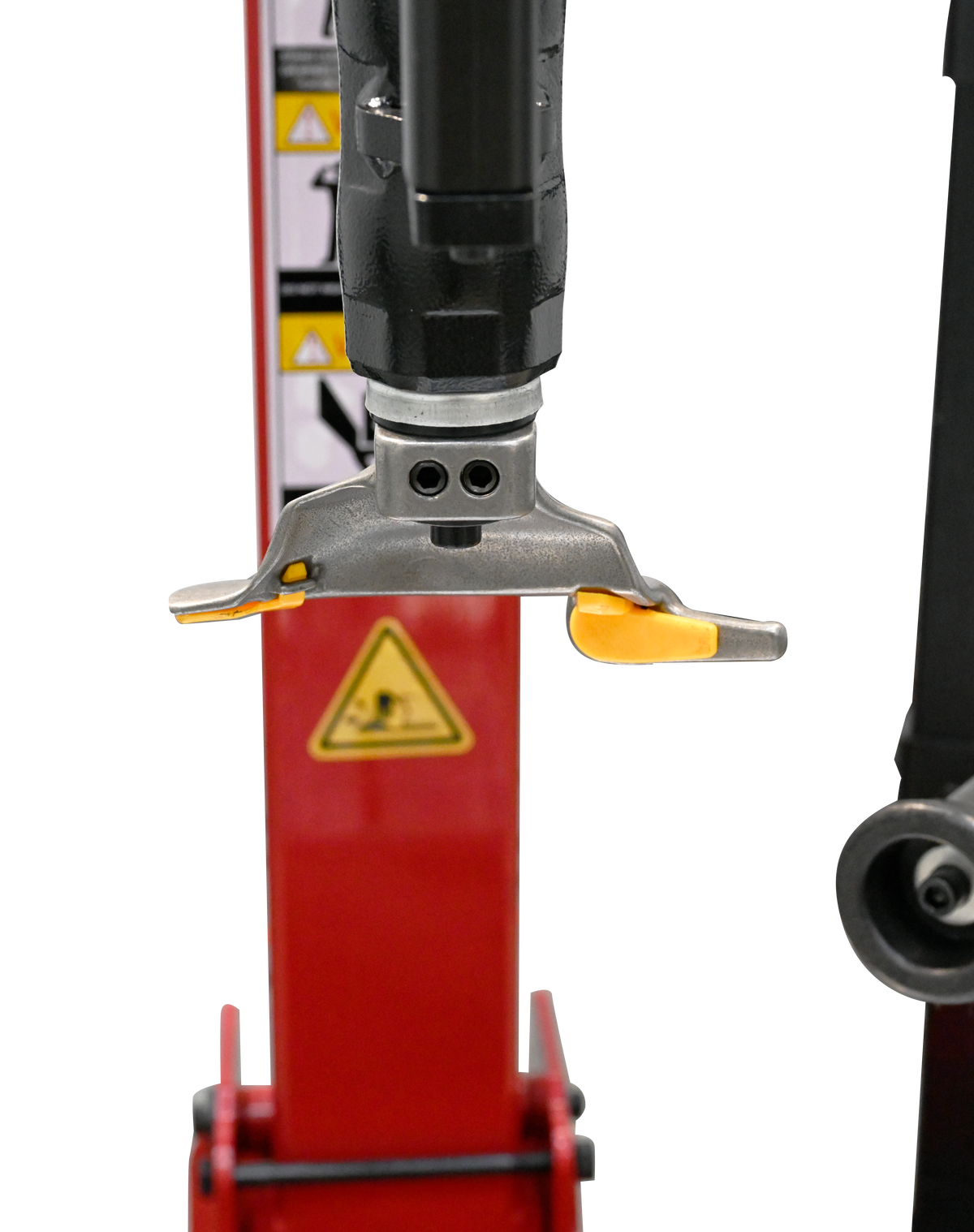

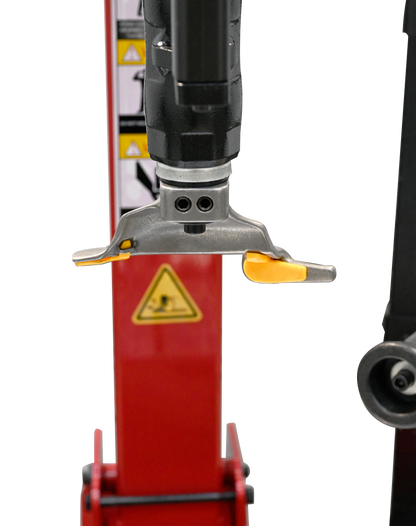

• Detachable swing arm head is precisely positioned for bead work and comes apart easily for maintenance
• Working head is high-frequency quenched and hard chrome plated for strength and wear resistance
• Protective covers and pads on the working head, jaws, lever, and bead breaker prevent rim damage
• One-piece machined chuck base prevents long-term deformation and keeps rigidity consistent

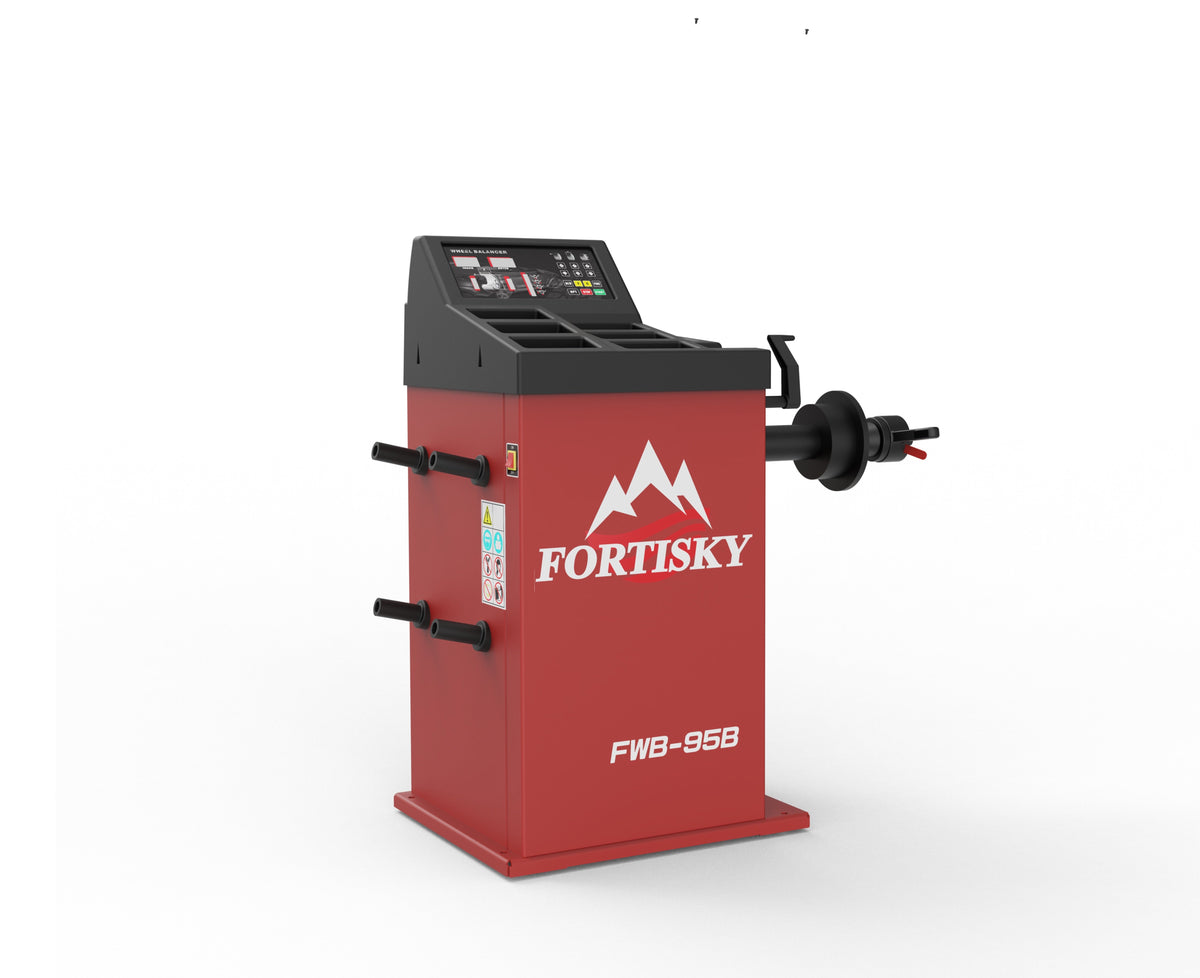

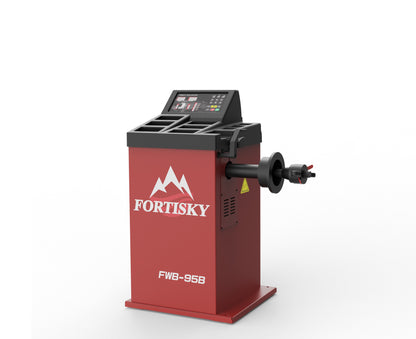

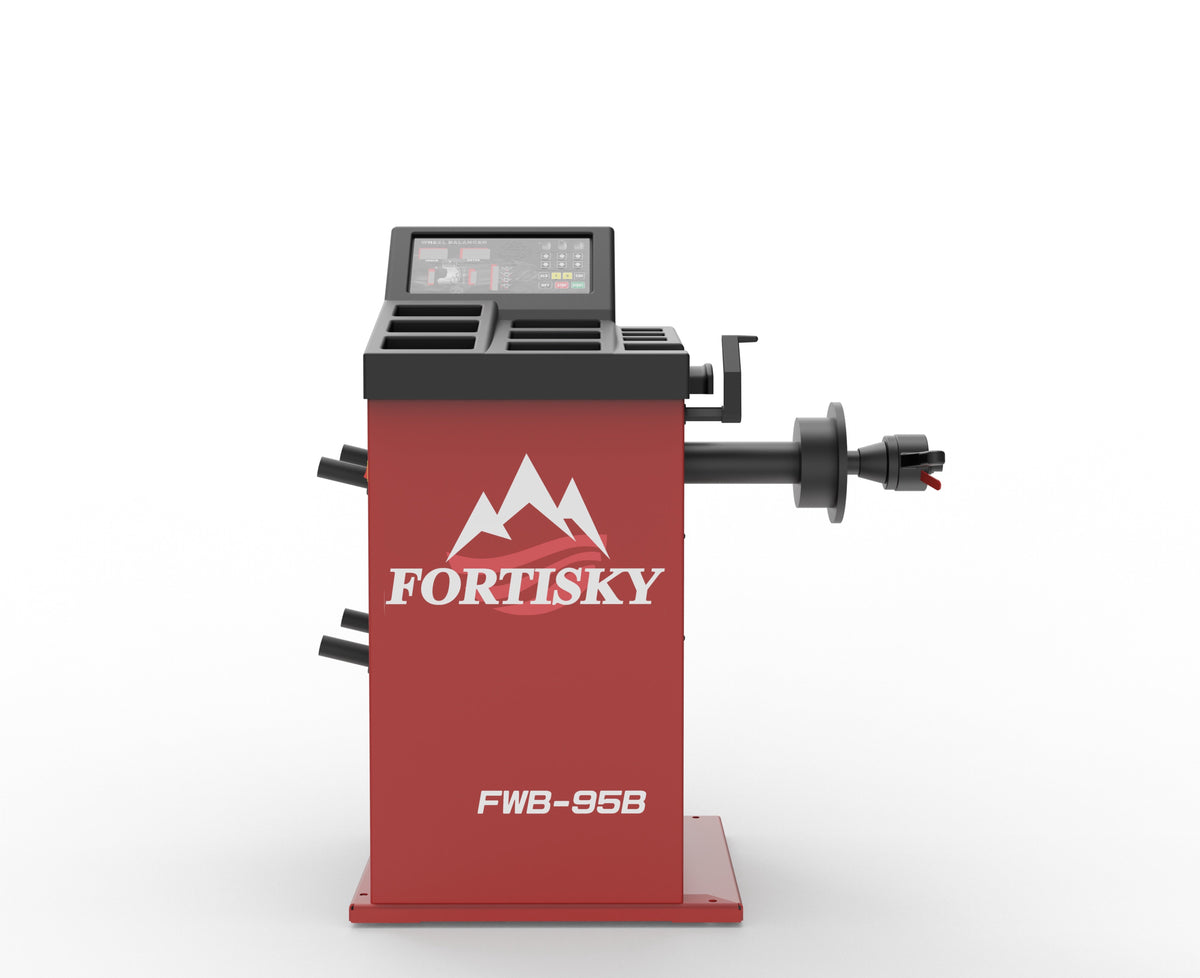

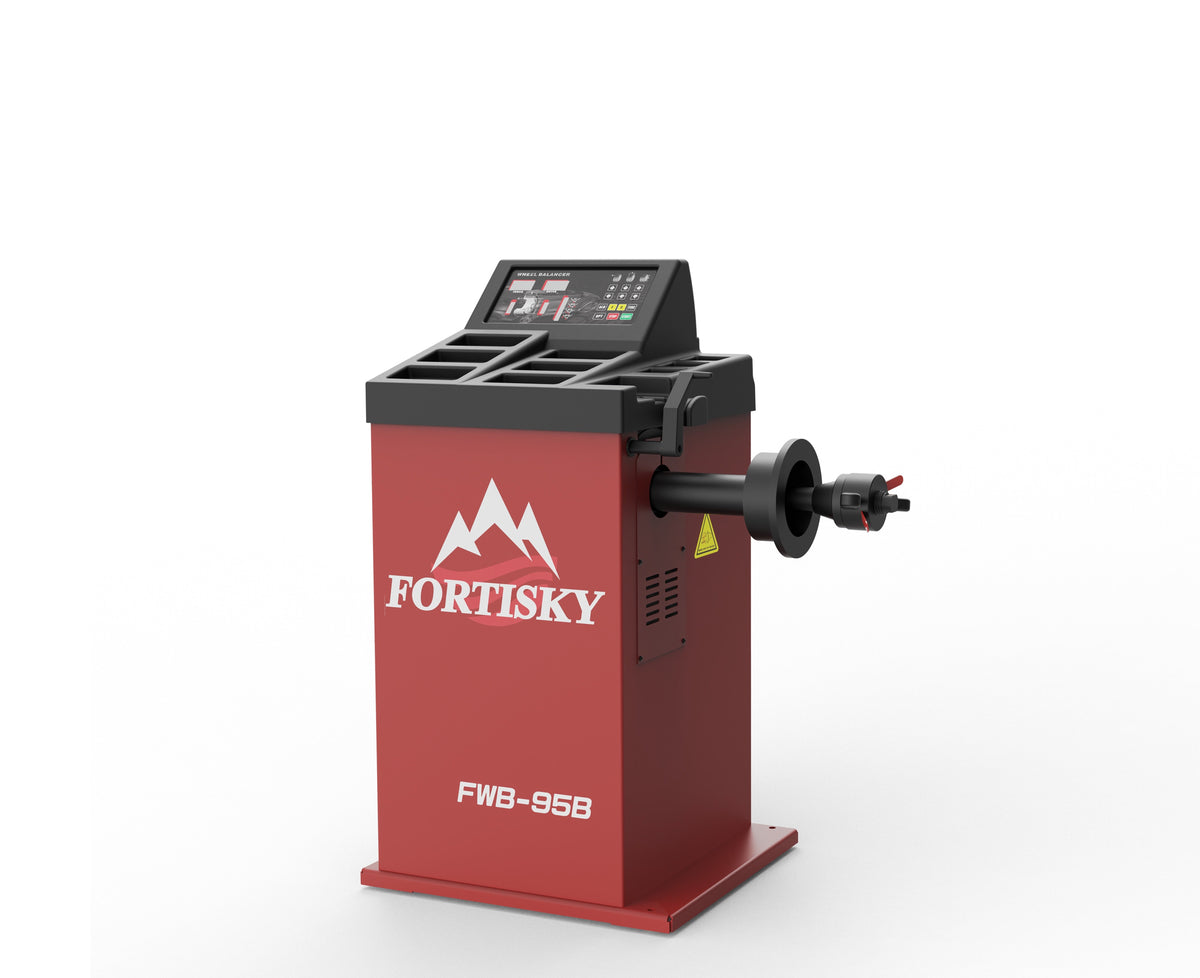

FWB-95B Wheel Balancer

• Advanced sensors provide high-accuracy measurement
• Clean, easy-to-read LED screen
• Anti-slip, wear-resistant, corrosion-resistant keypad
• Multiple balance modes cover different rim types
• Electronic brake holds the wheel still while you apply weights
• Auto-start engages the moment you lower the wheel guard
• Fully automatic dynamic and static balancing functions built in
• Self-calibration without tools or external references
• Complete wheel guard ships with the unit

FTC-1670 Tire Changer

• Model: FTC-1670
• Applicable rim size — outer: 14 inches – 26 inches
• Applicable rim size — inner: 16 inches – 28 inches
• Maximum tire diameter: 1,200mm (47.2 in)
• Maximum tire width: 380mm (15 in)
• Pressing force at 10 bar: 2,500kg (5,511 lbs)
• Operating air pressure: 8 bar – 10 bar (116 – 145 psi)
• Maximum charge (inflation) pressure: 3.5 bar (50 psi)
• Motor power: 1.5 kW
• Column design: Pneumatic tilt-back with automatic push-pull locking
• Helper arm: Included — three-point tire push system
• Turbo blast: Direct-connect high-pressure inflation — double-button safety activation
• Turntable: Four-jaw synchronized linkage — auto-centering from outside in
• Working head: High-frequency quenched, hard chrome plated
• Chuck base: One-piece machined construction
• Rim protection: Full coverage on all contact surfaces — head, jaws, lever, and bead breaker

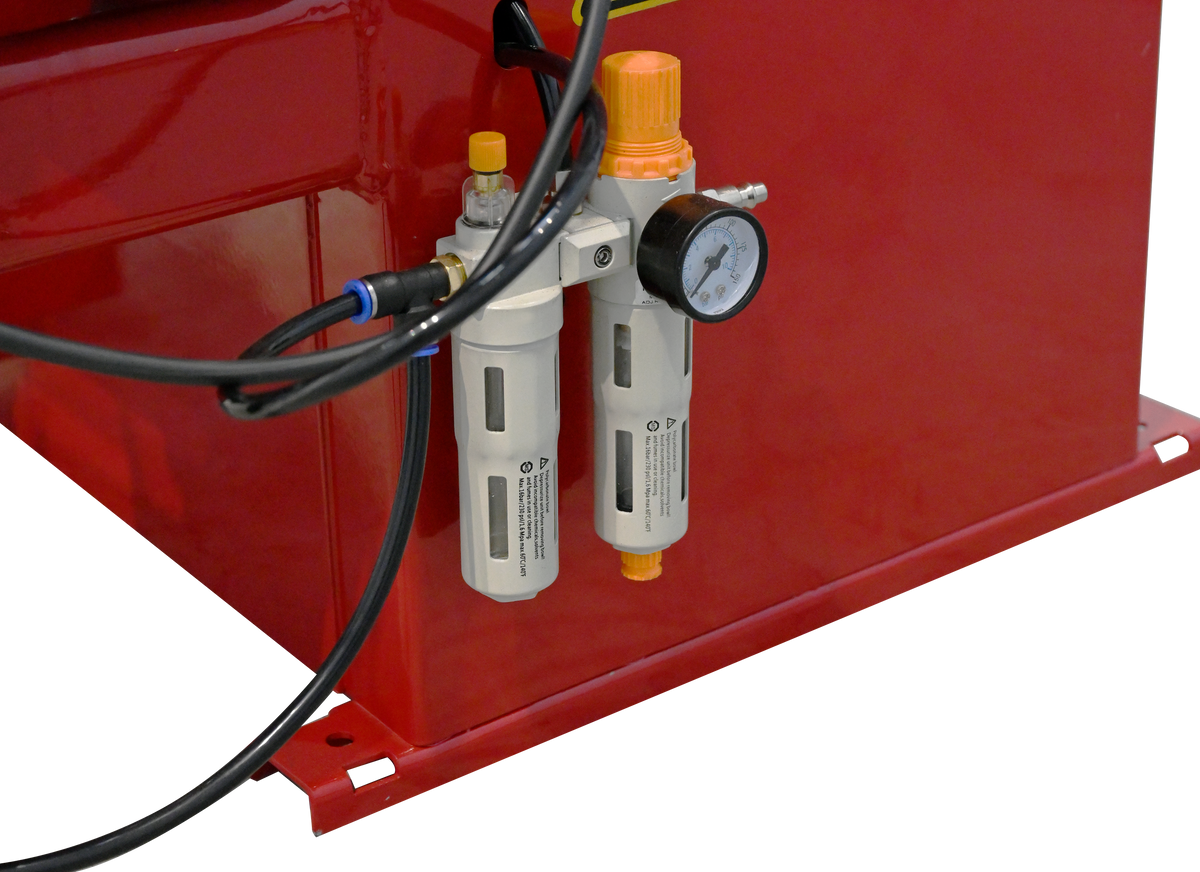

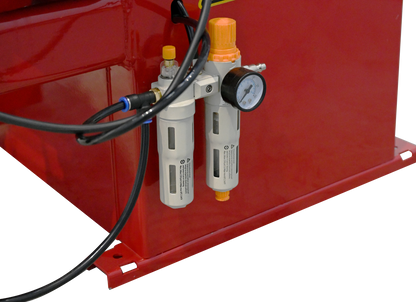

• Water and oil filter: High-pressure resistant
• Power supply: 110V single phase / 220V 3-phase
• Net weight: 220kg (485 lbs)
• Noise level: Less than 70dB (A)
• Outline dimension: Ctn.1: 1130*1020*900 / Ctn.2: 1270*530*420

FWB-95B Wheel Balancer

• Model: FWB-95B
• Applicable rim size: up to 26 inches
• Wheel width range: 1.5 inches – 14 inches
• Maximum wheel diameter: 1,000mm (39.4 in)
• Maximum wheel weight: 70kg (154 lbs)
• Balance accuracy: ±1g
• Main shaft speed: 200 RPM
• Balance modes: Static, dynamic, and ALU (alloy rim) modes — fully automatic
• Sensor technology: Advanced sensors for high-accuracy measurement
• Display: LED screen
• Electronic brake: Yes — holds wheel stationary during weight application
• Auto-start: Yes — activates when wheel guard is lowered
• Self-calibration: Yes
• Keypad: Anti-slip, wear-resistant, and corrosion-resistant
• Wheel guard: Included
• Noise level: Less than 70dB (A)
• Power supply: 110V | 60Hz | Single phase
• Net weight: 84kg (185 lbs)

Let the Machine Do the Heavy Part.

This is the upgrade for the guy whose back is done with tire day. The helper arm does the pushing, the turbo blast seats stubborn beads, and covers on the head, jaws, lever and bead breaker keep metal off your rims. Then the 95B balances it to within a gram, right there in the same bay. Questions before or after the sale? Call us at 862-356-6869.

FTC-1670 Manual (PDF)

FWB-95B Manual (PDF)
