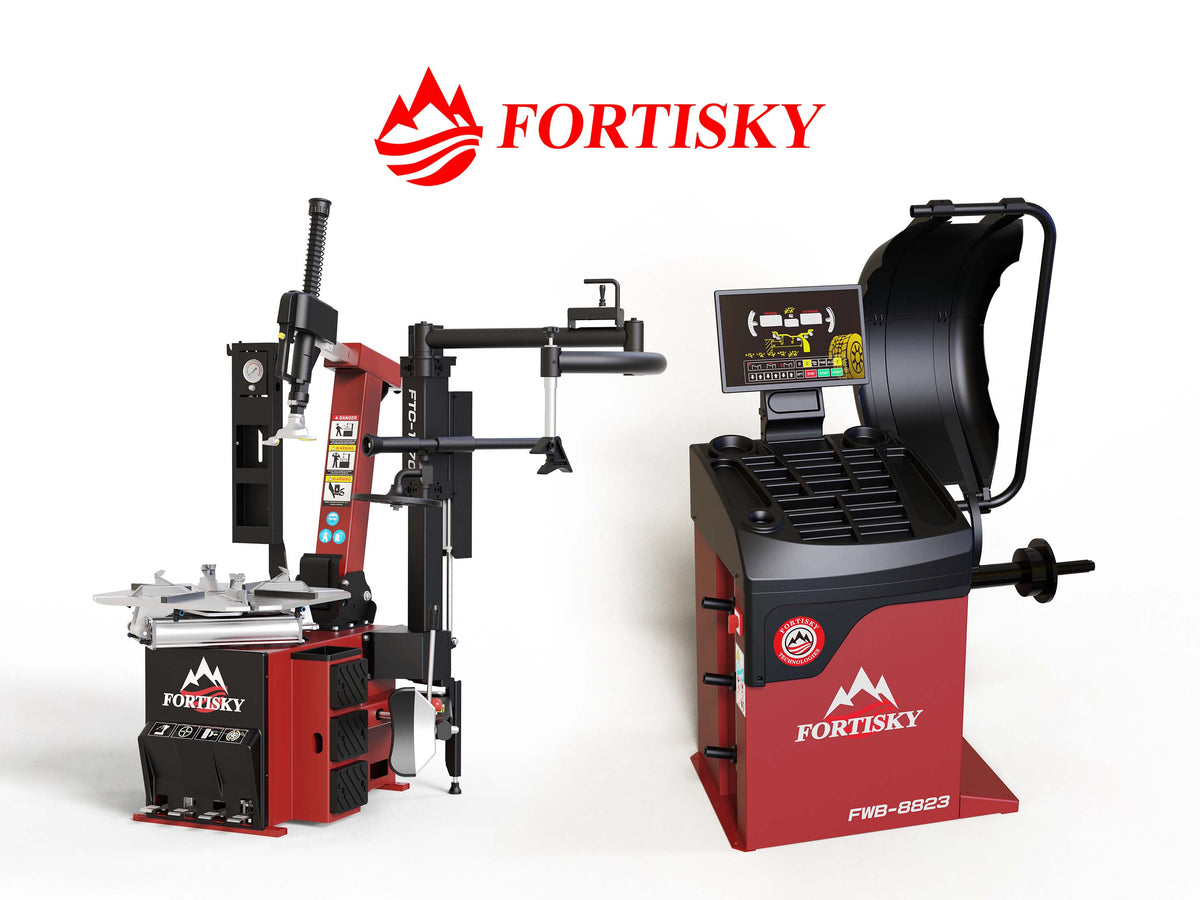

Fortisky | Tilt Back Tire Changer & Wheel Balancer Combo FTC-1670 + FWB-8823

Lifted trucks, big rims, low-profile rubber. If that's what rolls into your garage, you need a changer and a balancer that can both handle the size. This combo is built for it: the FTC-1670 tilt-back changer with helper arm clamps rims up to 28 inches, and the FWB-8823 laser balancer takes rims up to 30 inches.

Both machines run on regular 110V power. It's also the biggest savings in our combo lineup: $1,171 less than buying the two machines separately on our site. SKU: 1670-8823

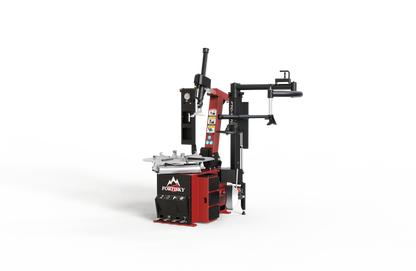

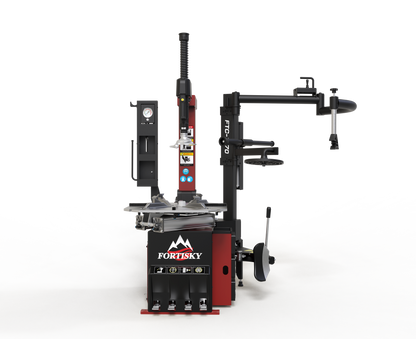

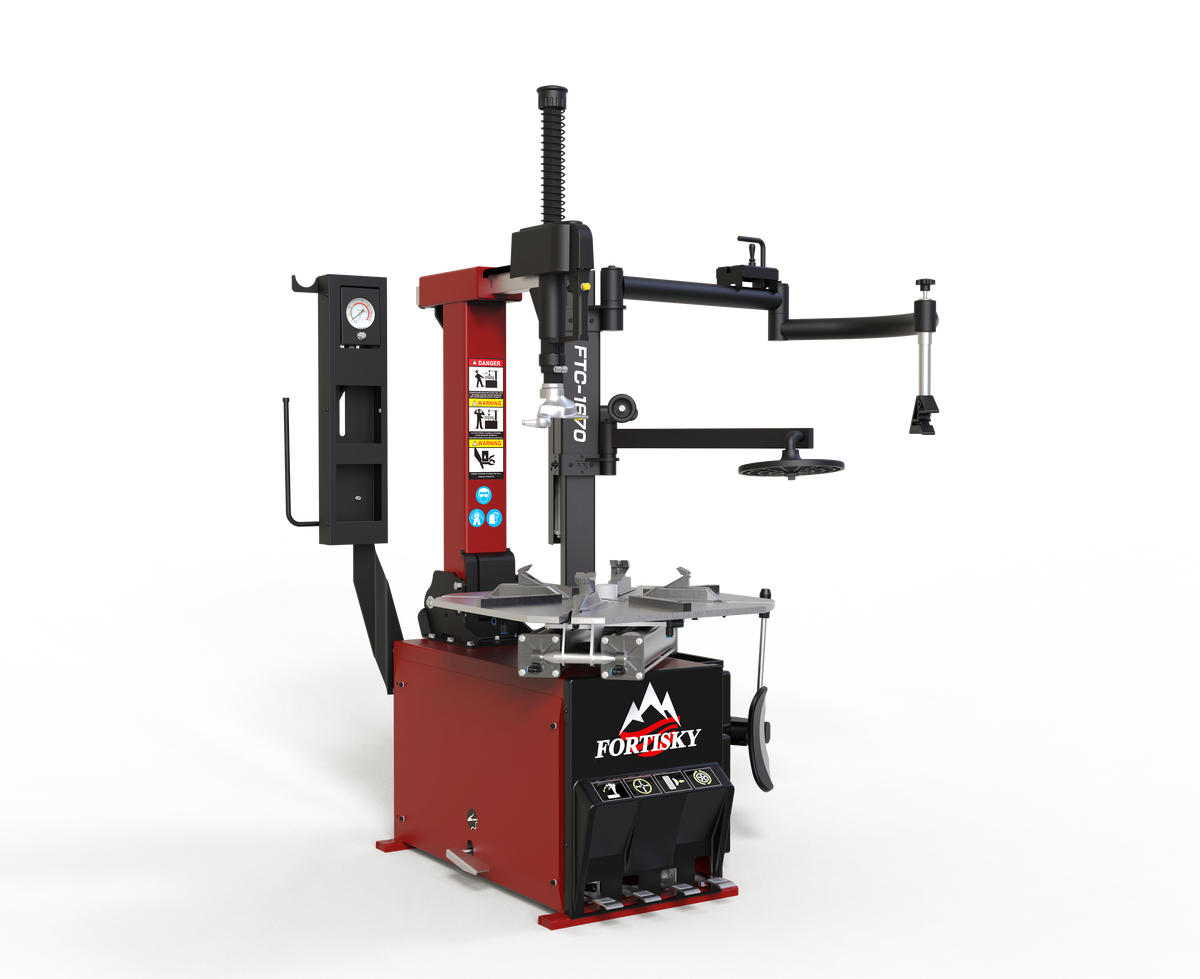

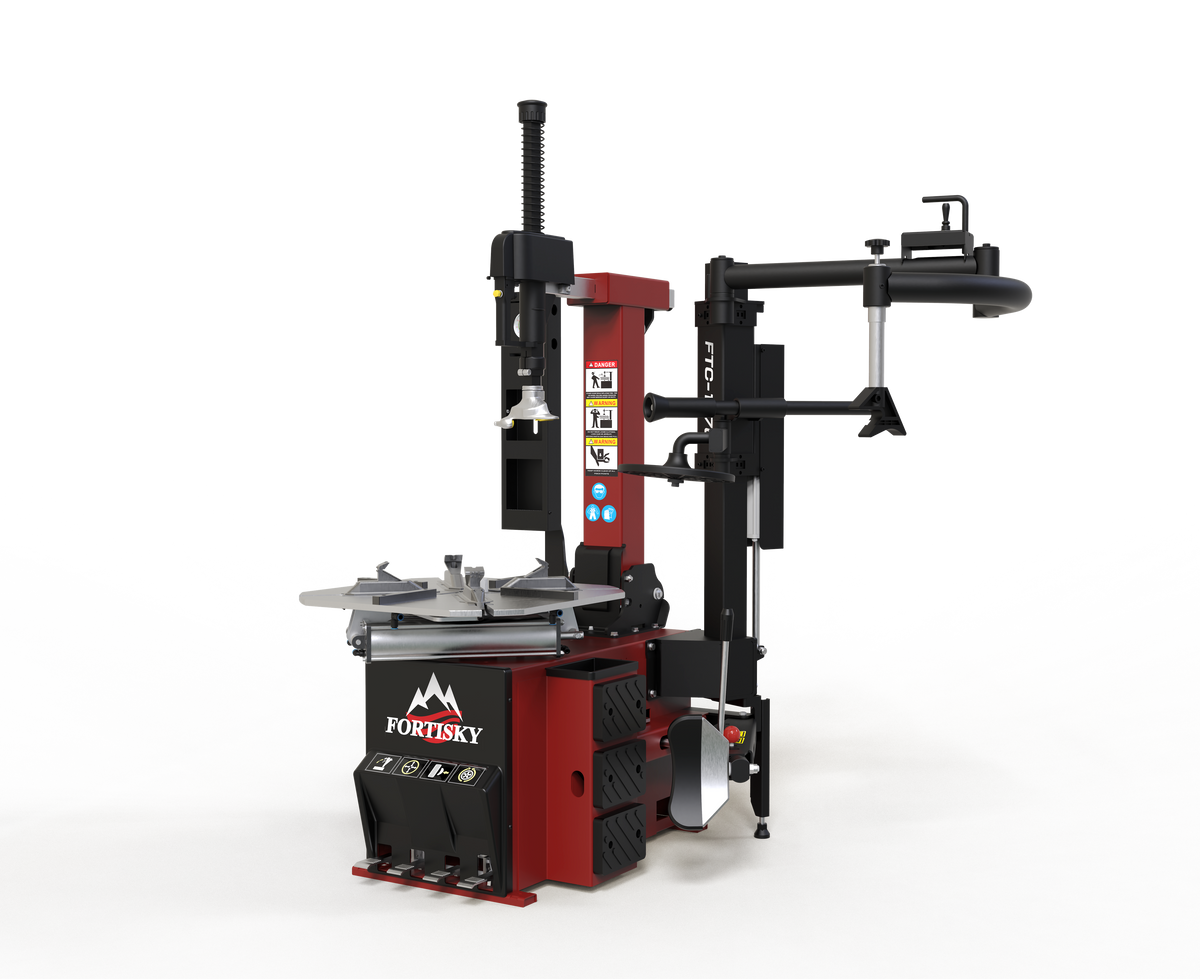

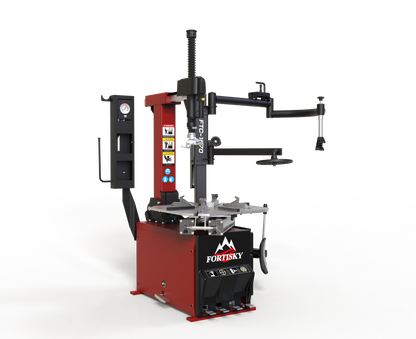

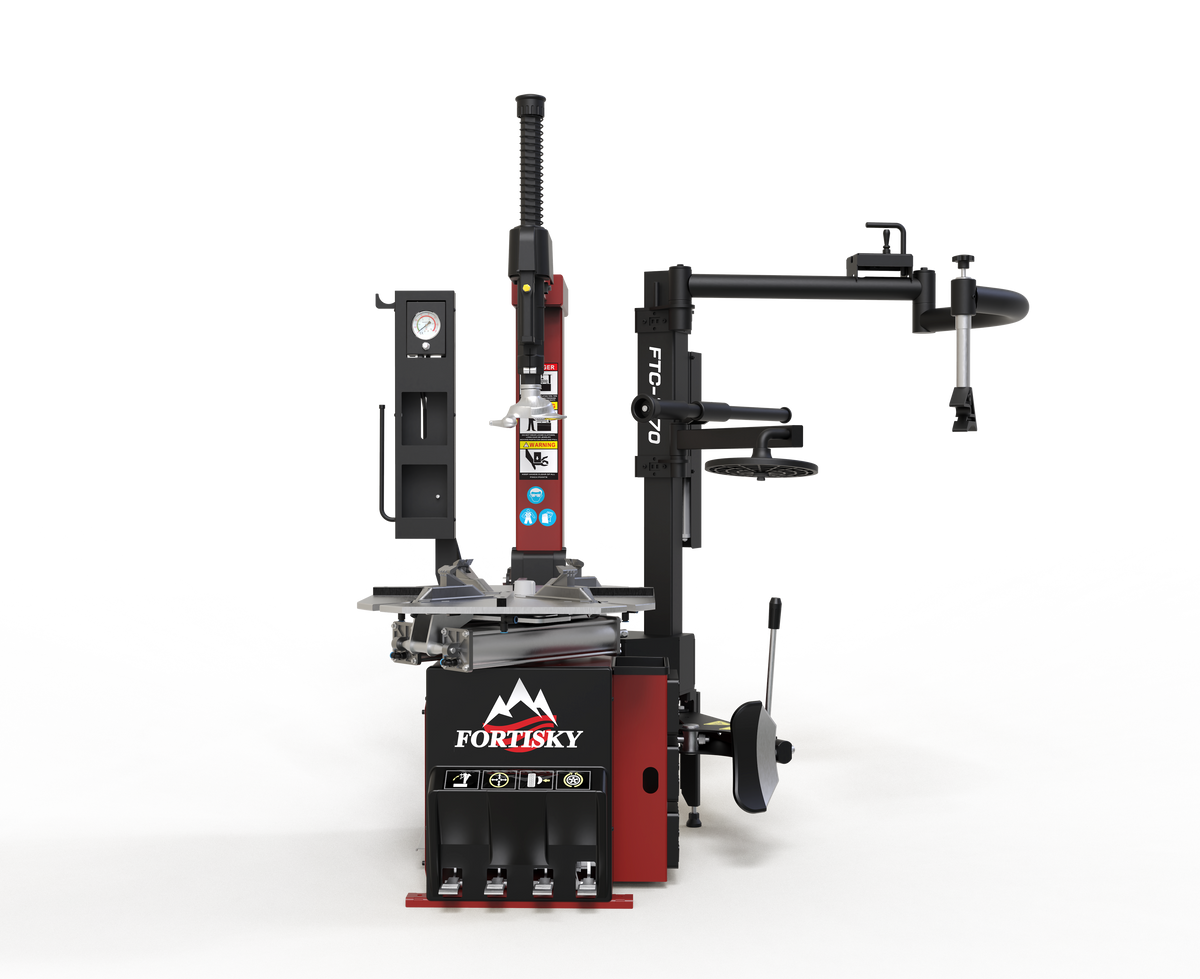

FTC-1670 Tire Changer

• Pneumatic tilt-back column pivots out of the way for maximum workspace clearance during mount and demount
• Automatic push-pull locking holds the column securely in both the working and open positions
• Included helper arm connects to the column for three-point tire push on large or stiff sidewall tires

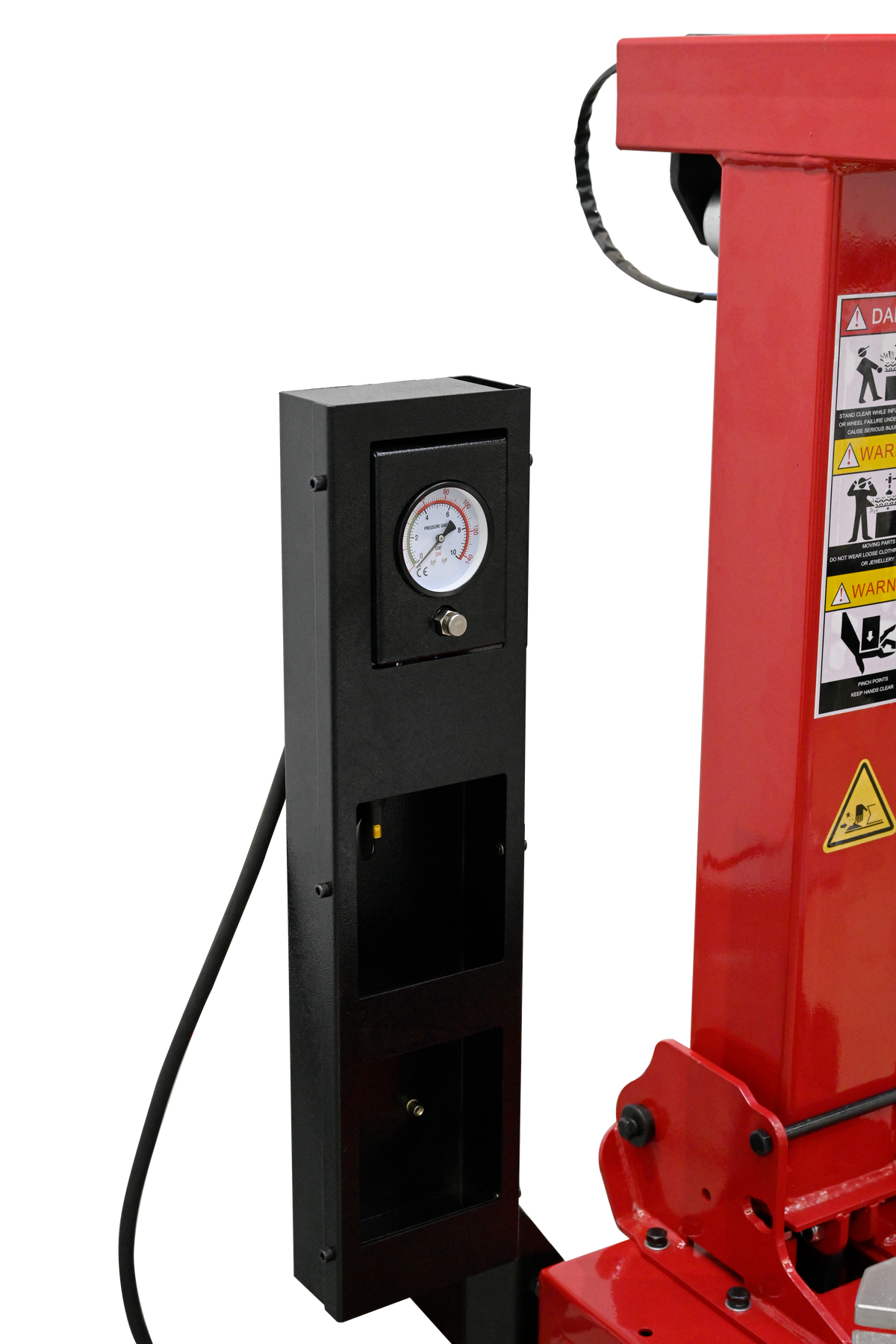

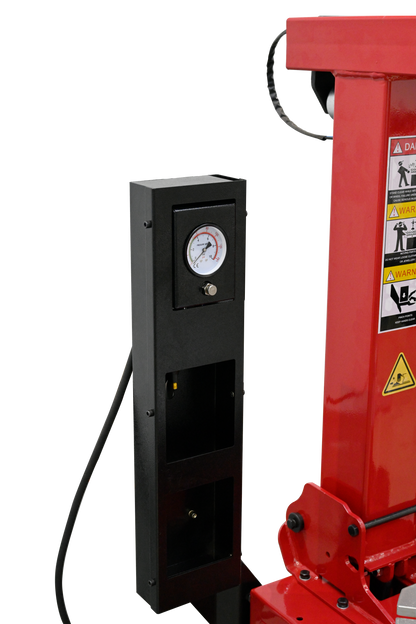

• Turbo blast inflation feeds directly through the machine for fast, powerful bead seating
• Double-button bead blast design prevents accidental activation

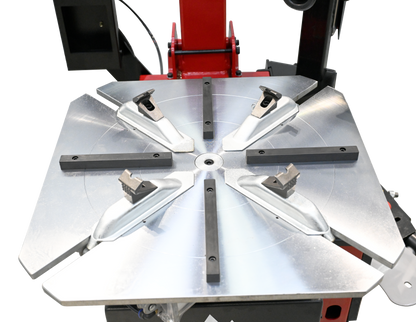

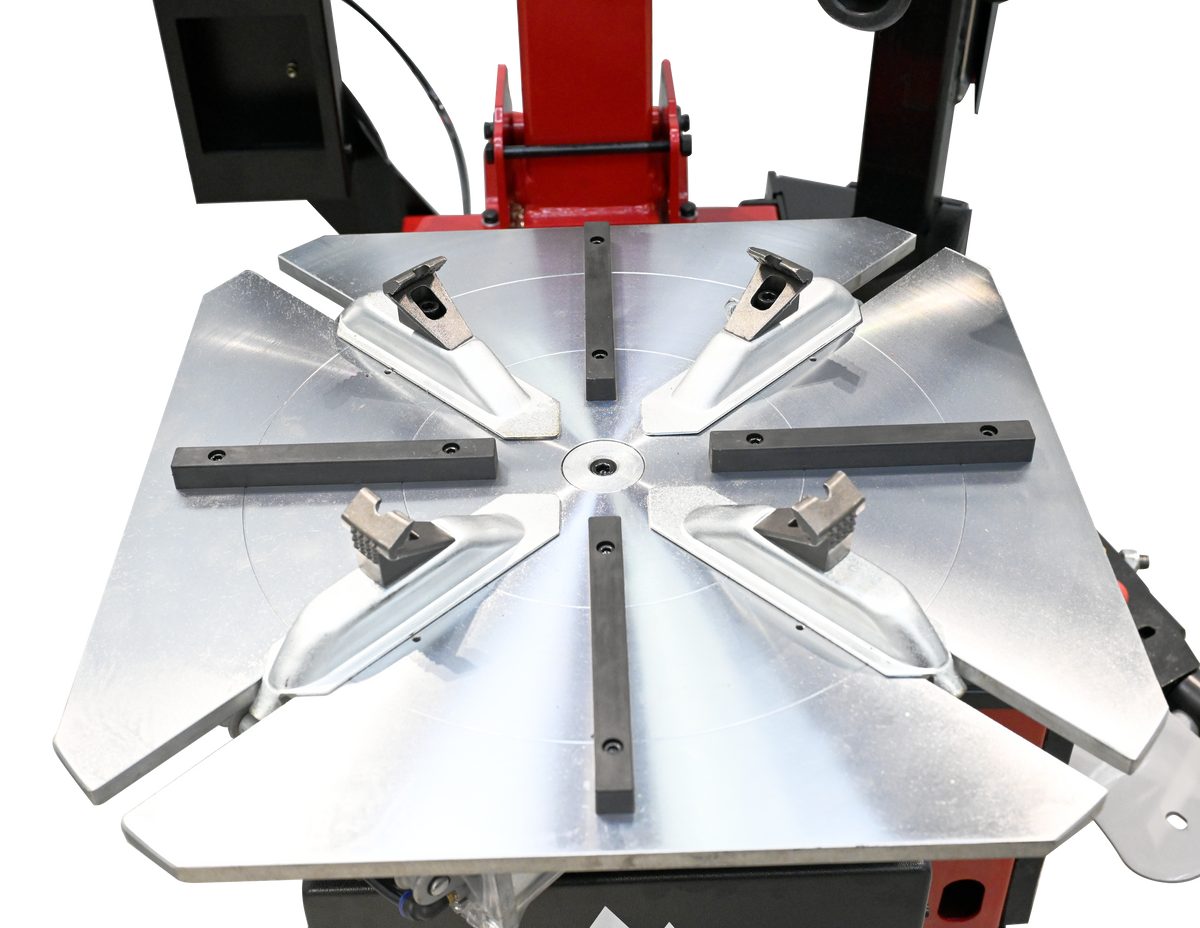

• Central bead pressing system rapidly clamps the rim with the four-jaw auto-centering turntable
• Synchronized linkage turntable grips consistently from the outside in

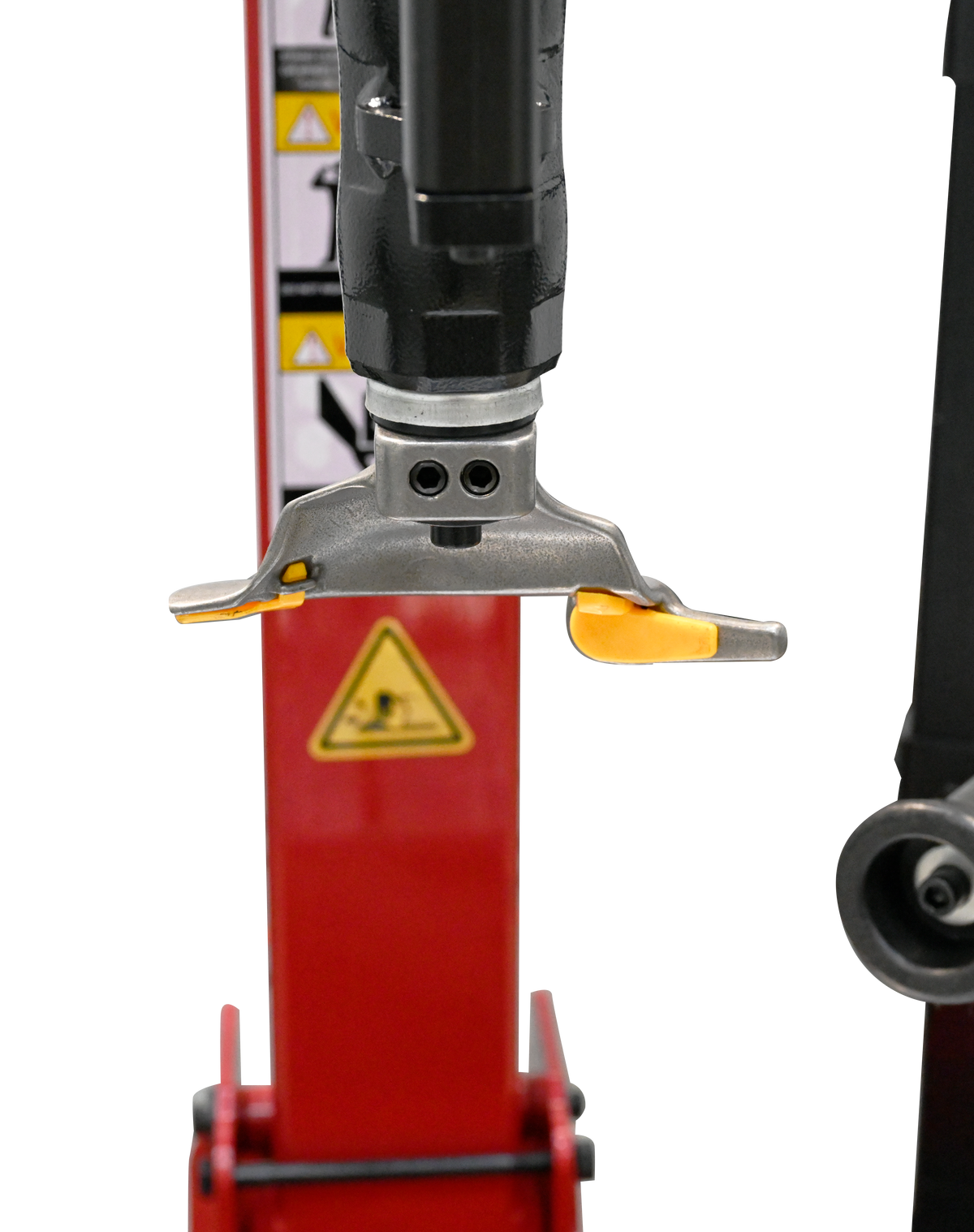

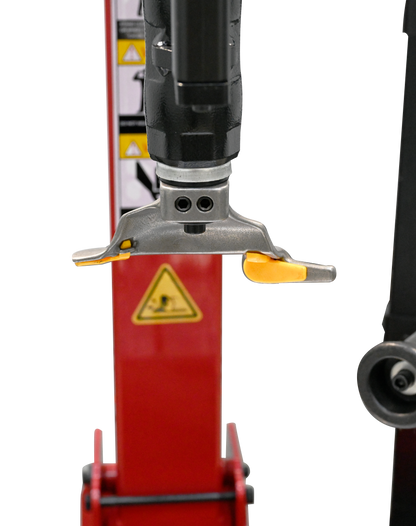

• Detachable swing arm head is precisely positioned for bead work and comes apart easily for maintenance
• Working head is high-frequency quenched and hard chrome plated for strength and wear resistance
• Protective covers and pads on the working head, jaws, lever, and bead breaker prevent rim damage
• One-piece machined chuck base prevents long-term deformation and keeps rigidity consistent

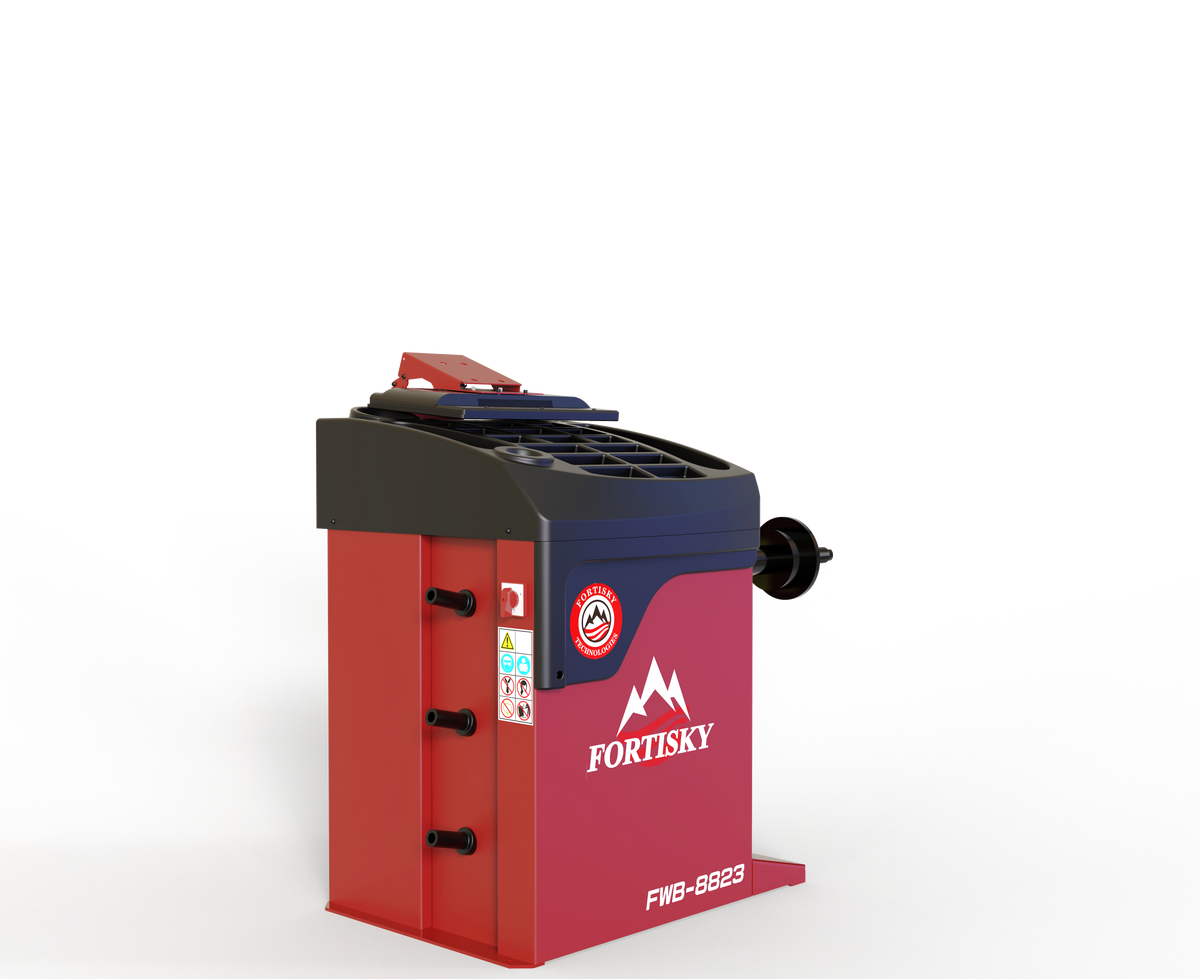

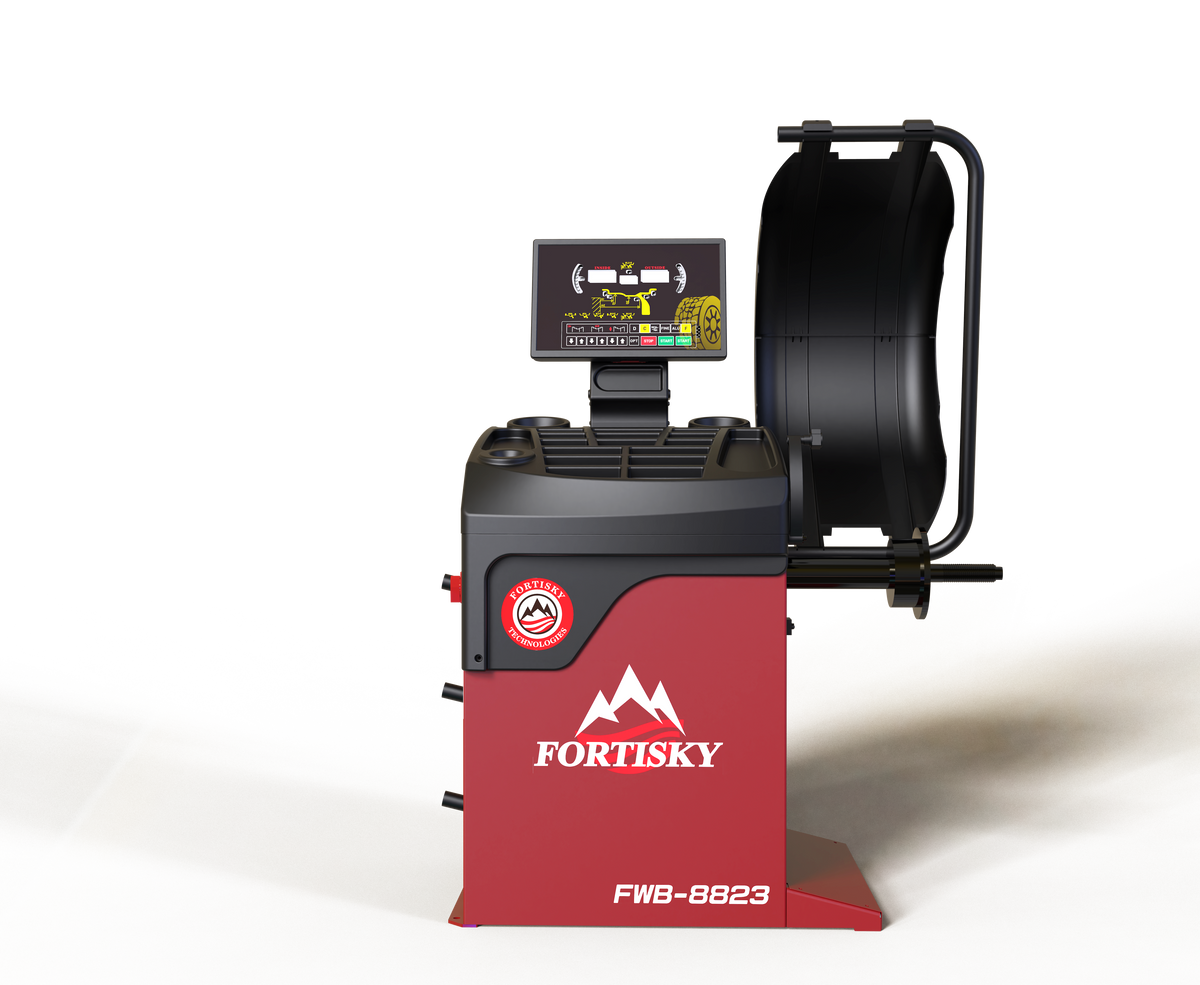

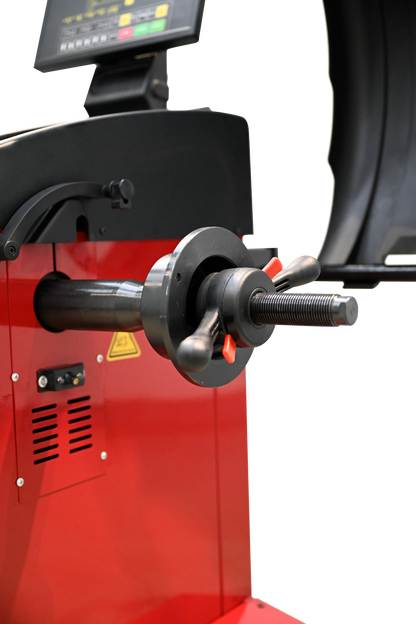

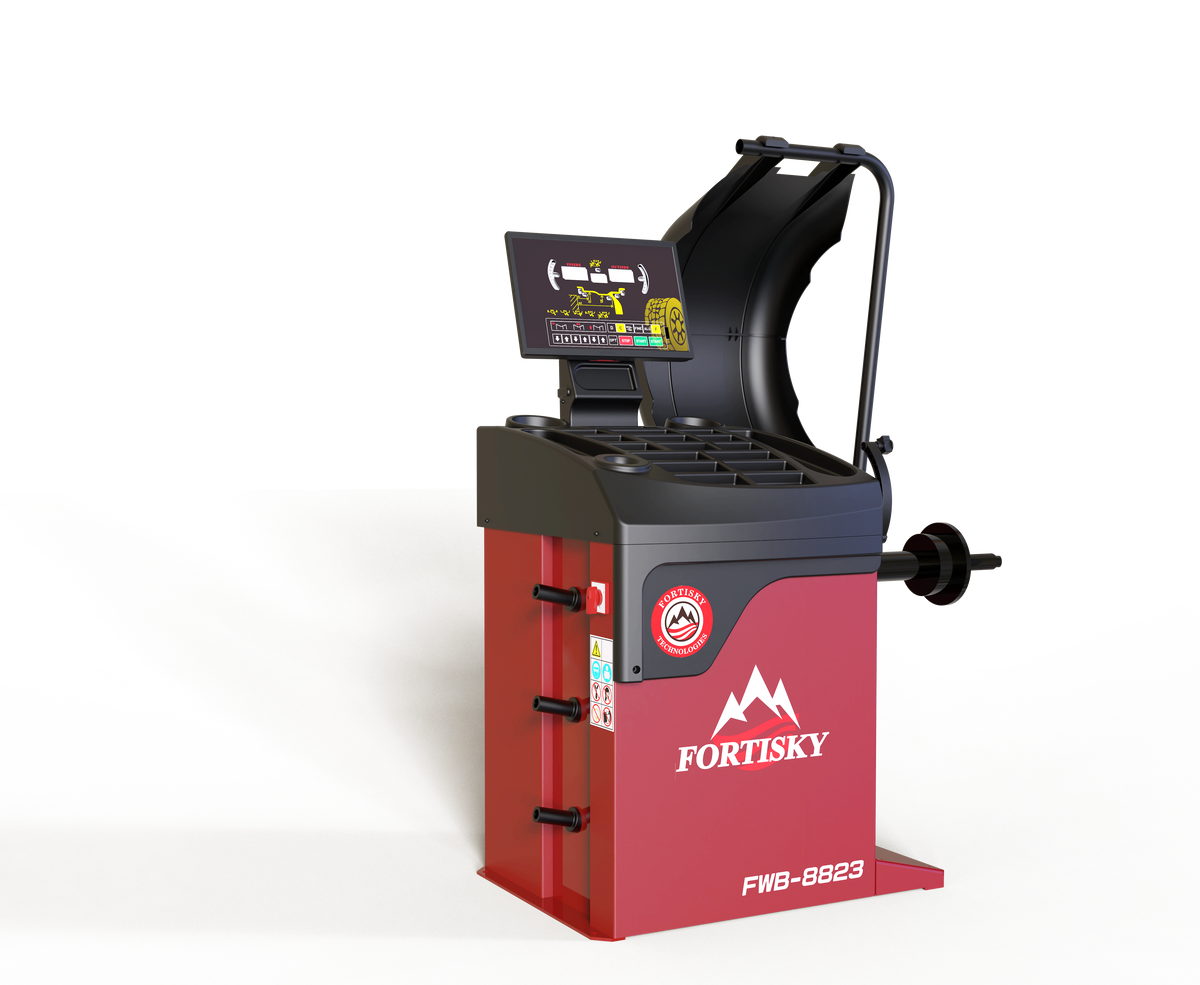

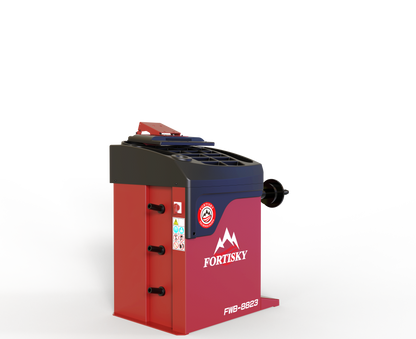

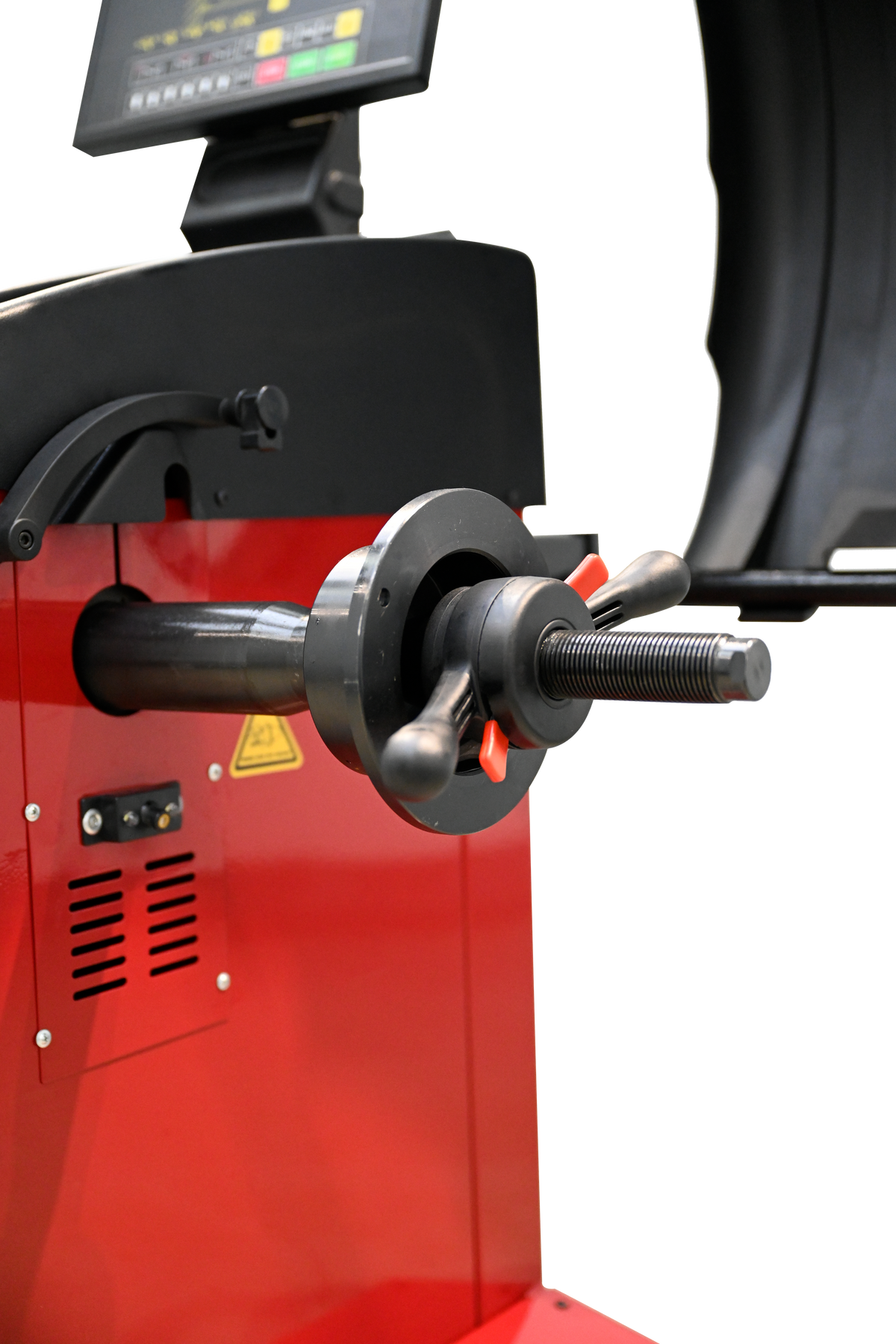

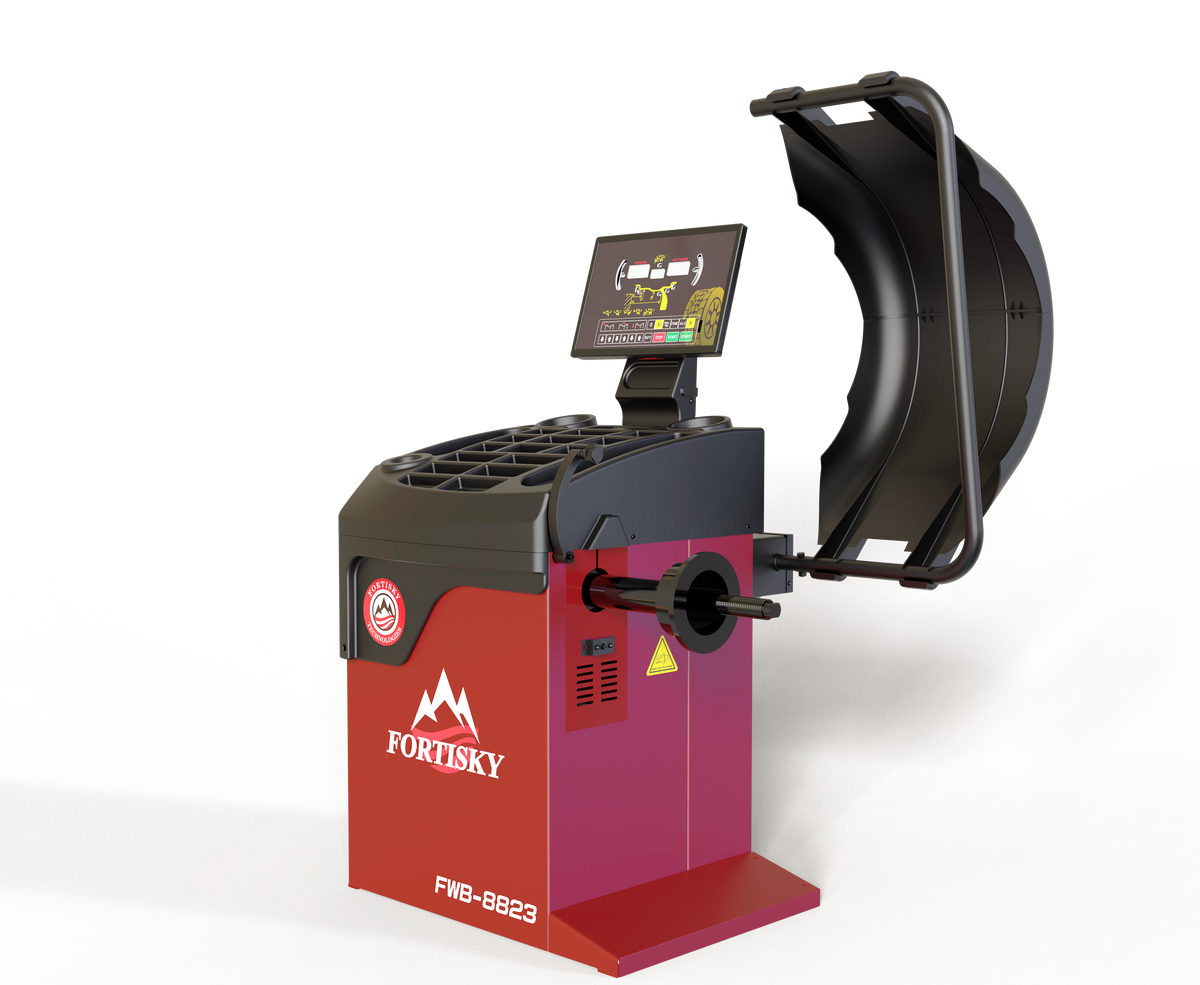

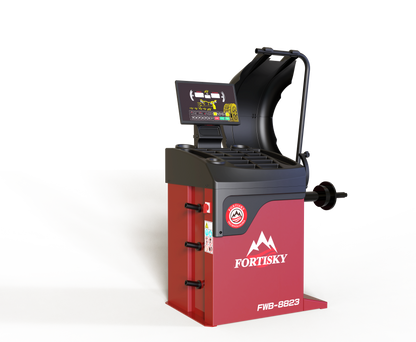

FWB-8823 Wheel Balancer

• 2D fully automatic data entry: gathers rim measurements via a linear grating measurement scale
• No entering diameter or distance by hand: drop the guard, press start, and it spins
• Smart balance-point positioning rotates the wheel to the correct position with a single key press
• Built-in visual laser puts a light exactly on the weight placement spot
• Built-in LED fill light for reading the wheel in low-light conditions
• Multiple balance modes for standard steel rims through complex alloy profiles
• Self-calibration keeps readings accurate over time
• Ships complete with the wheel guard

FTC-1670 Tire Changer

• Model: FTC-1670
• Applicable rim size — outer: 14 inches – 26 inches
• Applicable rim size — inner: 16 inches – 28 inches
• Maximum tire diameter: 1,200mm (47.2 in)
• Maximum tire width: 380mm (15 in)
• Pressing force at 10 bar: 2,500kg (5,511 lbs)
• Operating air pressure: 8 bar – 10 bar (116 – 145 psi)
• Maximum charge (inflation) pressure: 3.5 bar (50 psi)
• Motor power: 1.5 kW
• Column design: Pneumatic tilt-back with automatic push-pull locking
• Helper arm: Included — three-point tire push system
• Turbo blast: Direct-connect high-pressure inflation — double-button safety activation
• Turntable: Four-jaw synchronized linkage — auto-centering from outside in
• Working head: High-frequency quenched, hard chrome plated
• Chuck base: One-piece machined construction
• Rim protection: Full coverage on all contact surfaces — head, jaws, lever, and bead breaker

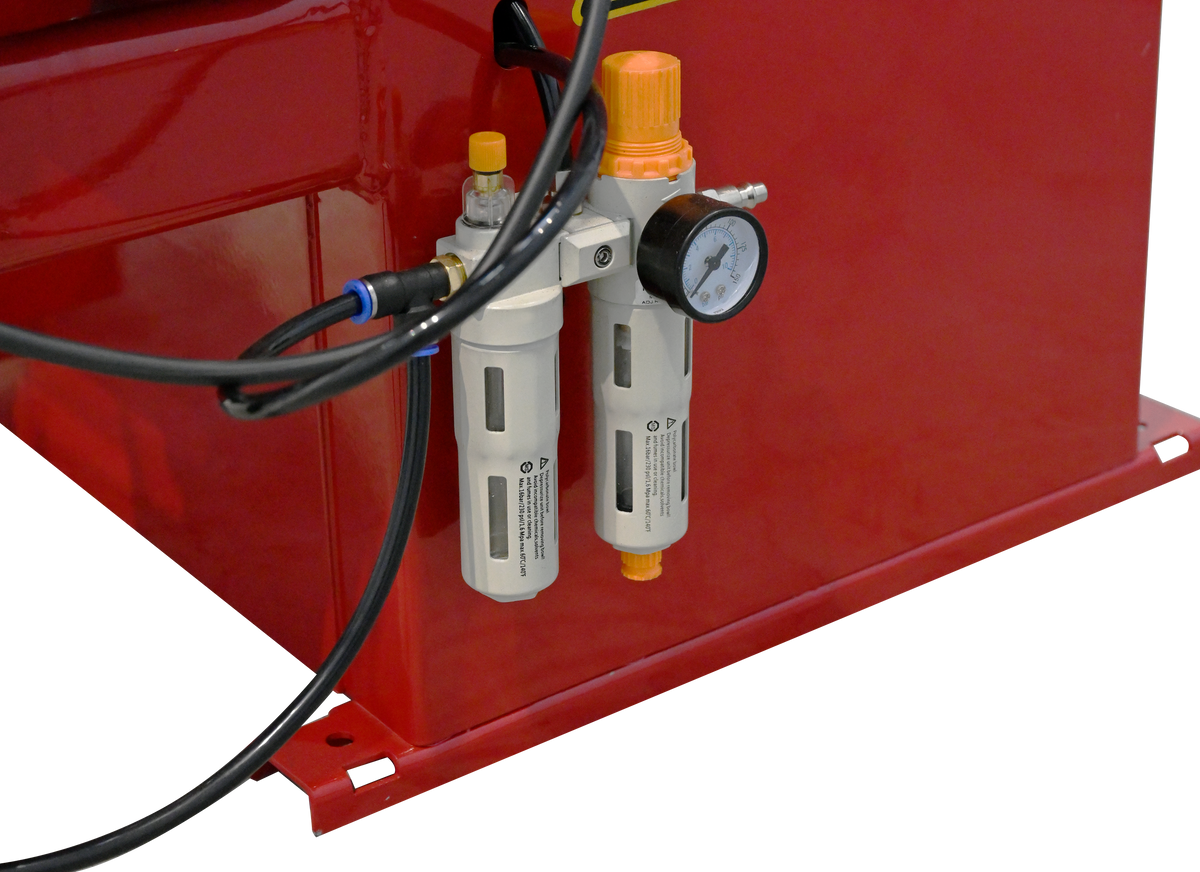

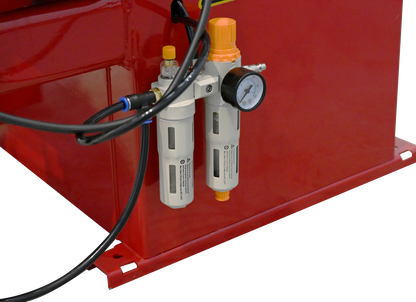

• Water and oil filter: High-pressure resistant
• Power supply: 110V single phase / 220V 3-phase
• Net weight: 220kg (485 lbs)
• Noise level: Less than 70dB (A)
• Outline dimension: Ctn.1: 1130*1020*900 / Ctn.2: 1270*530*420

FWB-8823 Wheel Balancer

• Model: FWB-8823
• Applicable rim size: up to 30 inches
• Wheel width range: 1.5 inches – 15 inches
• Maximum tire weight: 75kg (165 lbs)
• Balance accuracy: ±1g
• Equilibrium speed: 200 RPM
• Equilibrium cycle time: 7 – 10 seconds
• Measurement system: Linear grating scale — auto-captures rim diameter and distance
• Data entry: 2D fully automatic
• Display: LED screen
• Laser guidance: Visual laser pinpoints exact weight placement location
• LED fill light: Built-in — improves visibility in low-light environments
• Balance point positioning: Smart auto-rotate and lock — one key press
• Electronic brake: Yes — holds wheel stationary during weight application
• Auto-start: Yes — activates when wheel guard is lowered
• Self-calibration: Yes

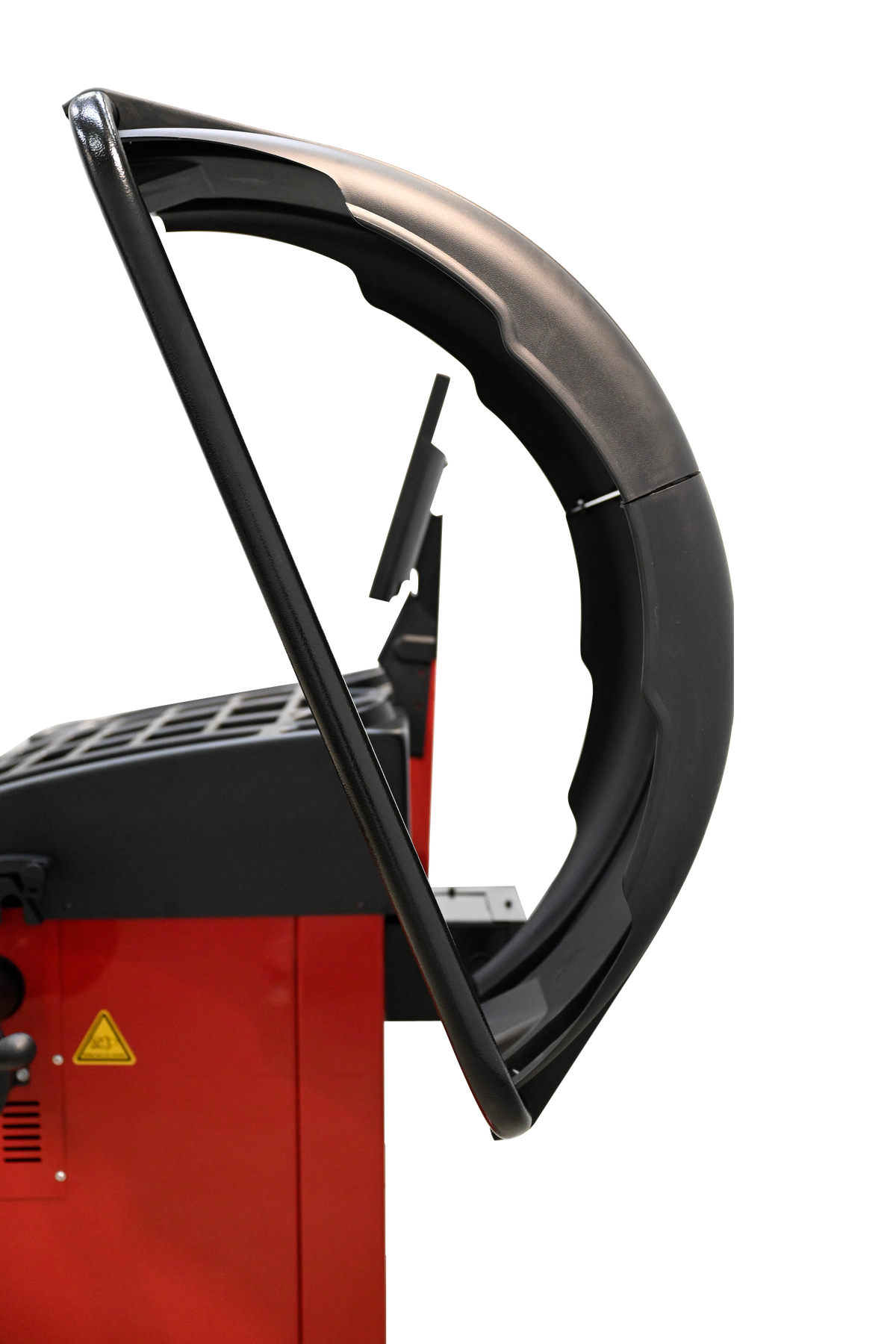

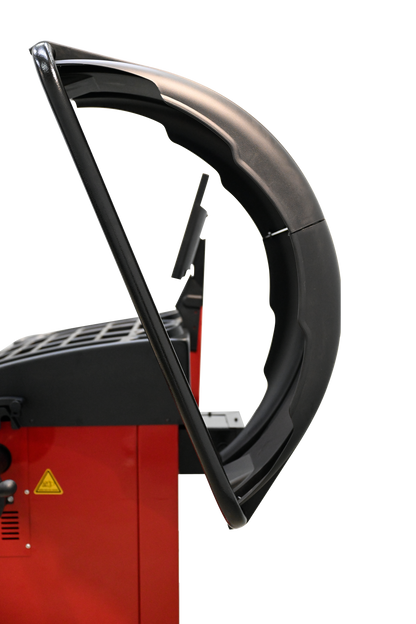

• Wheel guard: Included
• Motor power: 250W
• Power supply: 110V | 60Hz | Single phase
• Noise level: Less than 70dB (A)
• Net weight: 114kg (251 lbs)
• Working environment temperature: 0~50℃

Big Wheels. No Sending Out.

The helper arm and tilt-back column handle the big, stiff stuff on the changer. The 8823 measures the rim itself, rotates to the weight spot and puts a laser on it. Whether it's your own truck or a customer's, the whole mount and balance stays in your bay, and so does the money. Questions before or after the sale? Call us at 862-356-6869.

FTC-1670 Manual (PDF)

FWB-8823 Manual (PDF)
