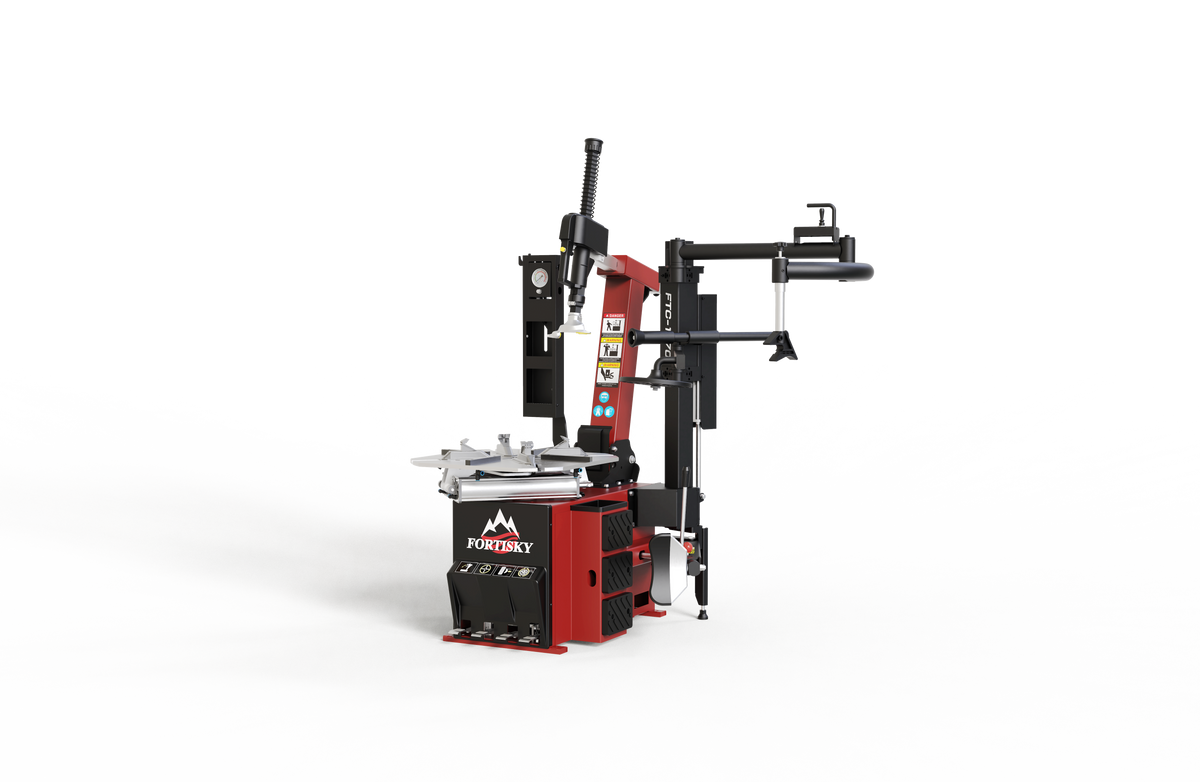

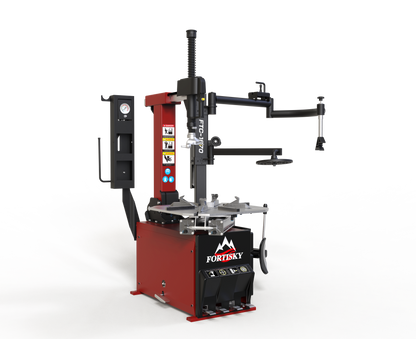

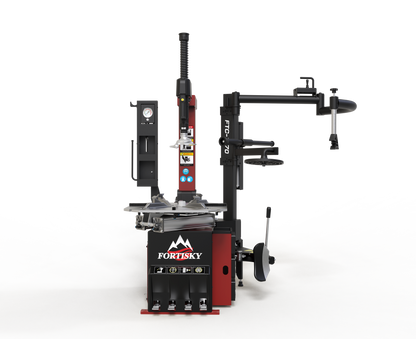

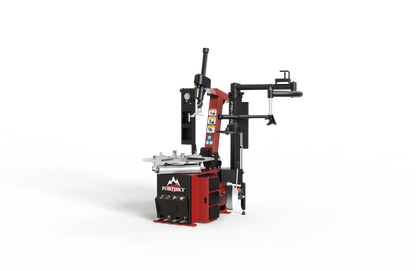

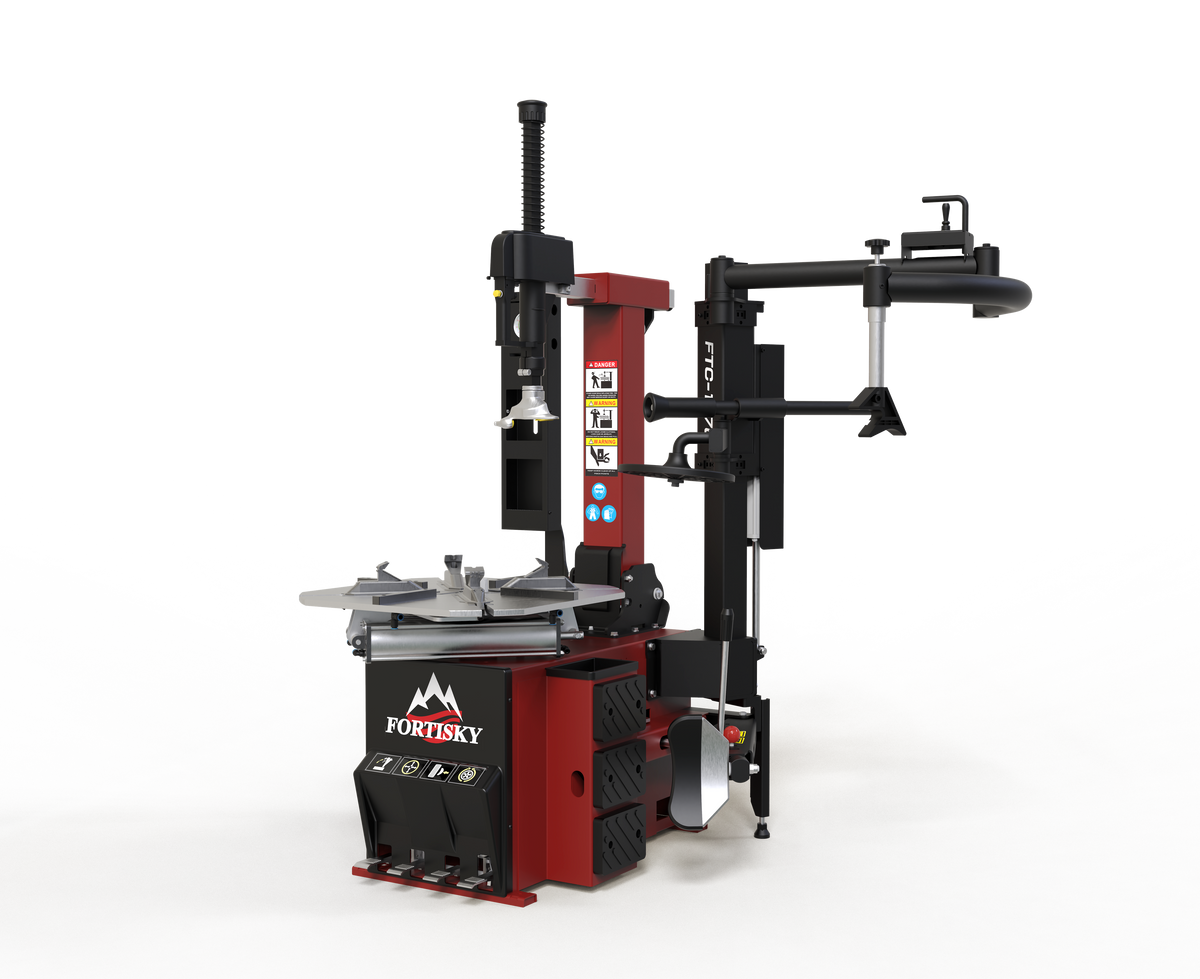

The FTC-1670 is a tilt-back tire changer: when the column tilts back, the whole working area opens up for mounting and demounting. It has a helper arm, turbo blast inflation, and a pneumatic push-pull locking system, and handles 28-inch rims.

For the enthusiast moving up from a basic changer or building out a real shop setup. SKU: FTC-1670

• Pneumatic tilt-back column pivots out of the way for maximum workspace clearance during mount and demount
• Automatic push-pull locking holds the column securely in both the working and open positions
• Included helper arm connects to the column for three-point tire push on large or stiff sidewall tires

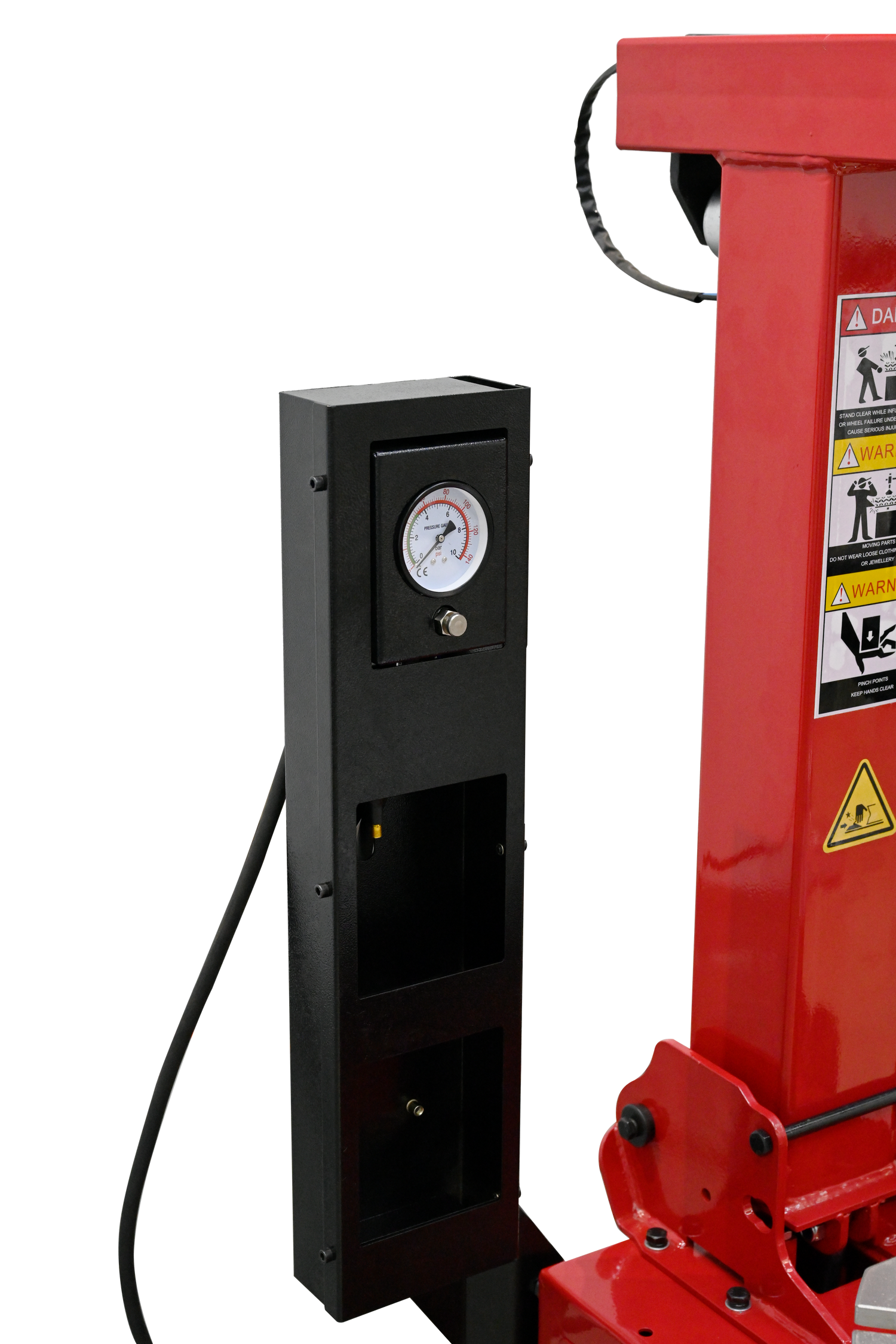

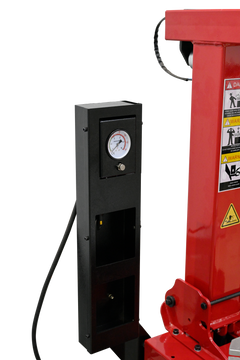

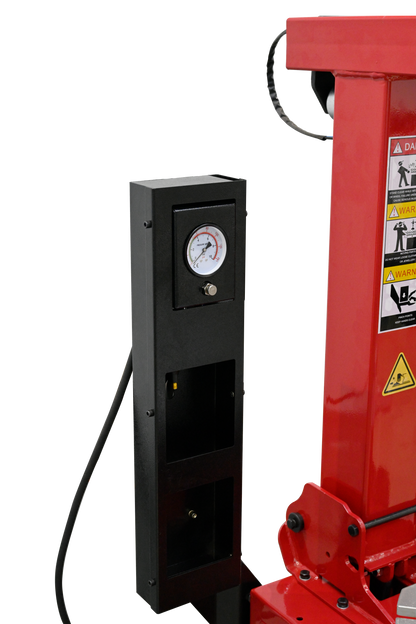

• Turbo blast inflation feeds directly through the machine for fast, powerful bead seating
• Double-button bead blast design prevents accidental activation

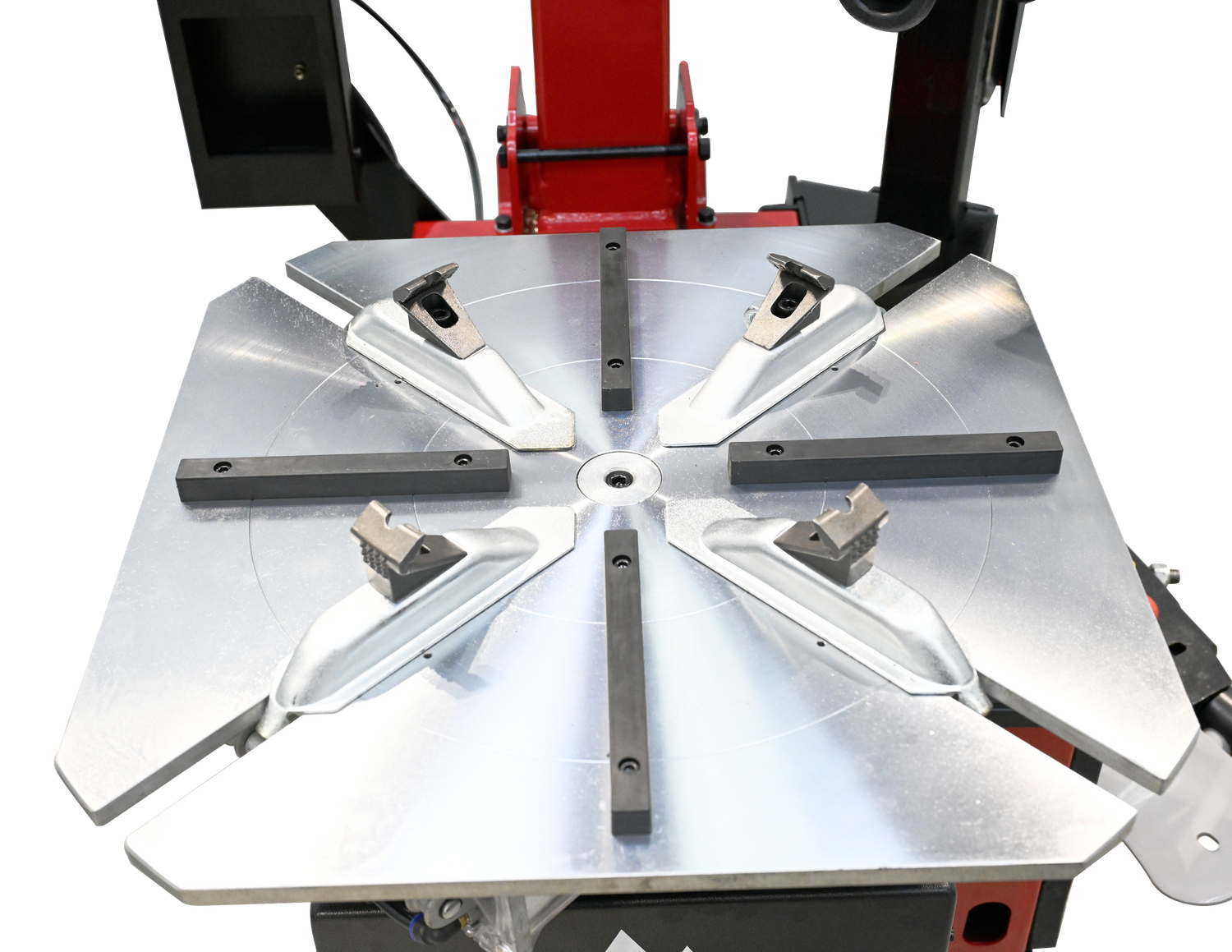

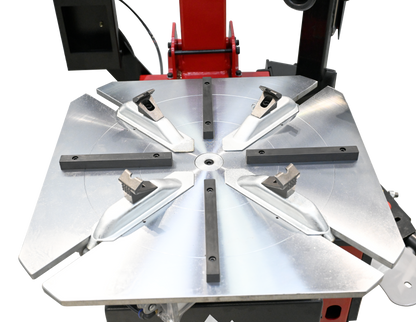

• Central bead pressing system rapidly clamps the rim with the four-jaw auto-centering turntable
• Synchronized linkage turntable grips consistently from the outside in

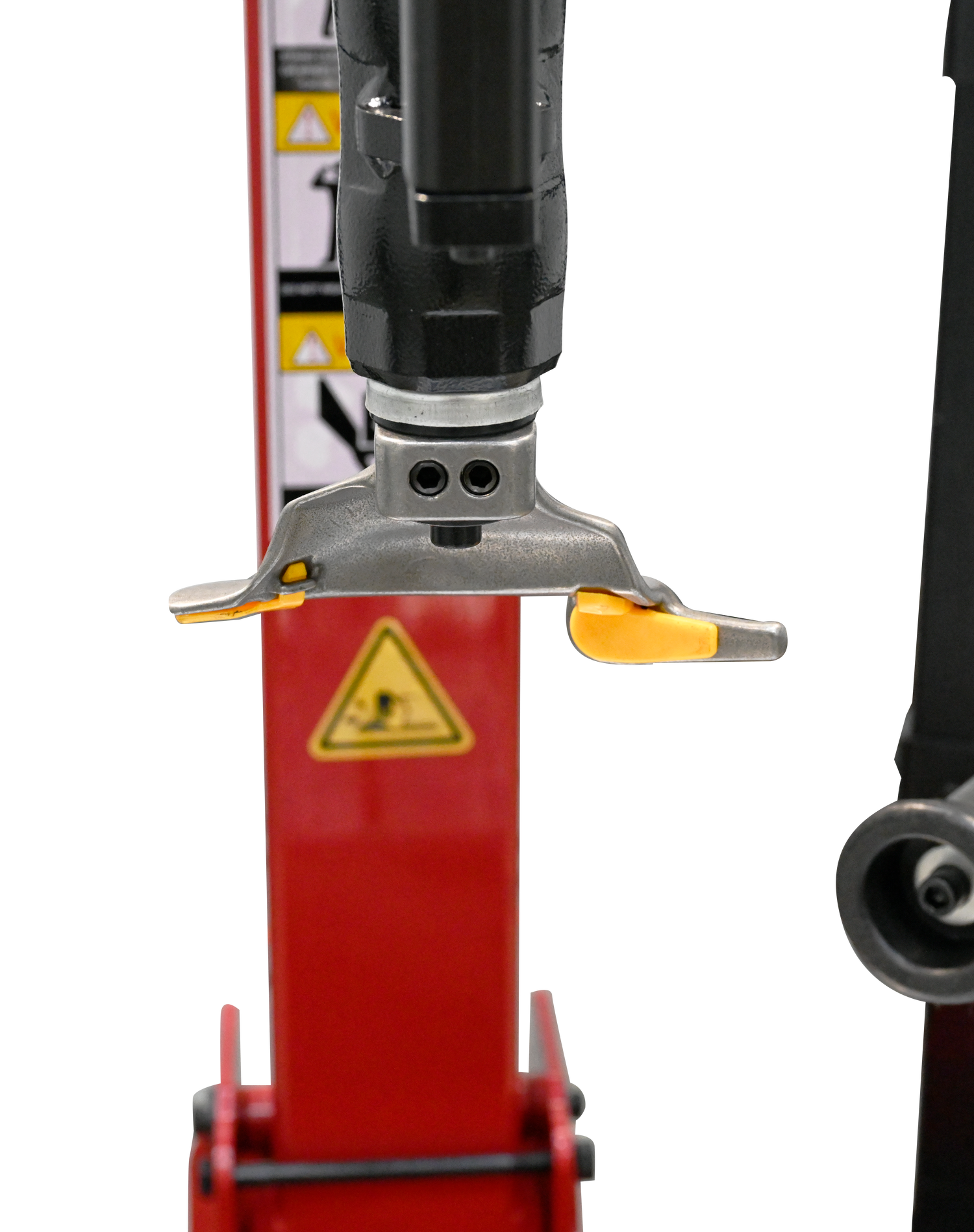

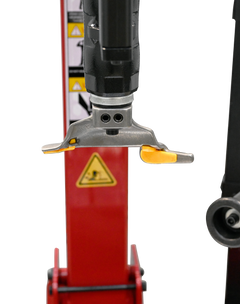

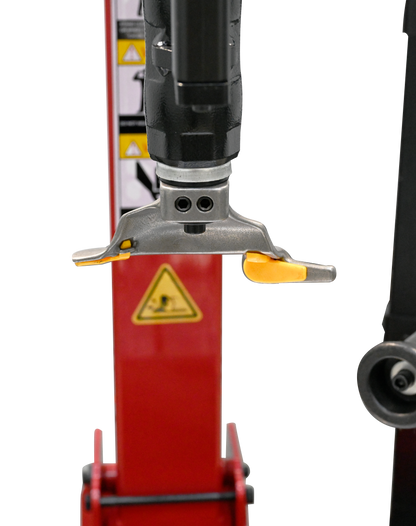

• Detachable swing arm head is precisely positioned for bead work and comes apart easily for maintenance
• Working head is high-frequency quenched and hard chrome plated for strength and wear resistance
• Protective covers and pads on the working head, jaws, lever, and bead breaker prevent rim damage
• One-piece machined chuck base prevents long-term deformation and keeps rigidity consistent

• Model: FTC-1670
• Applicable rim size — outer: 14 inches – 26 inches
• Applicable rim size — inner: 16 inches – 28 inches
• Maximum tire diameter: 1,200mm (47.2 in)
• Maximum tire width: 380mm (15 in)
• Pressing force at 10 bar: 2,500kg (5,511 lbs)
• Operating air pressure: 8 bar – 10 bar (116 – 145 psi)
• Maximum charge (inflation) pressure: 3.5 bar (50 psi)
• Motor power: 1.5 kW
• Column design: Pneumatic tilt-back with automatic push-pull locking
• Helper arm: Included — three-point tire push system
• Turbo blast: Direct-connect high-pressure inflation — double-button safety activation
• Turntable: Four-jaw synchronized linkage — auto-centering from outside in
• Working head: High-frequency quenched, hard chrome plated
• Chuck base: One-piece machined construction
• Rim protection: Full coverage on all contact surfaces — head, jaws, lever, and bead breaker

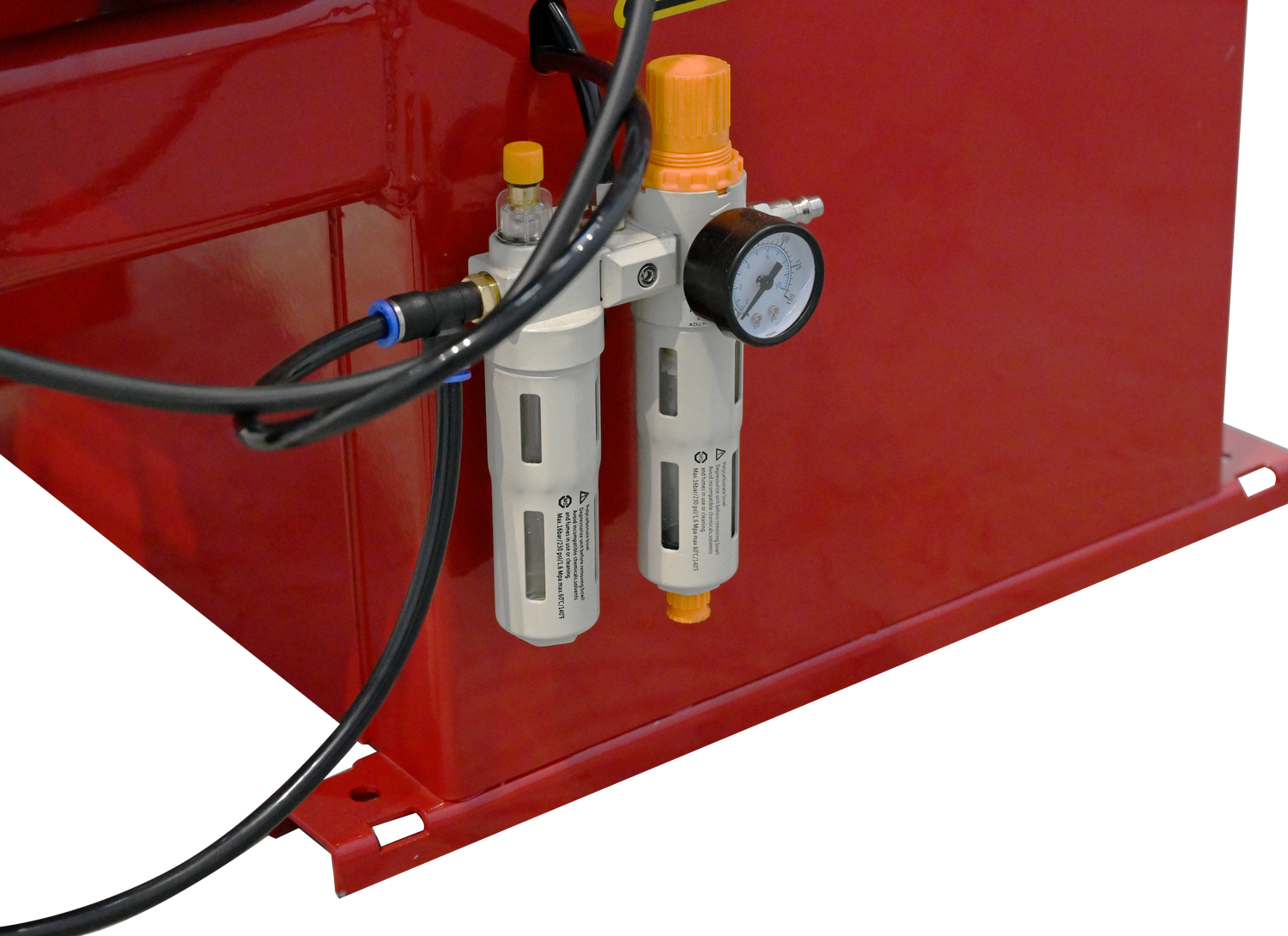

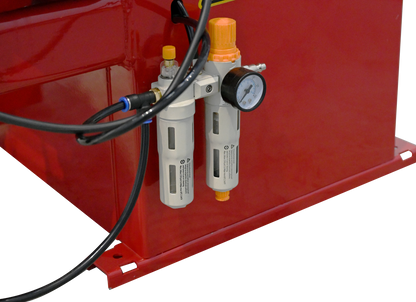

• Water and oil filter: High-pressure resistant
• Power supply: 110V single phase / 220V 3-phase
• Net weight: 220kg (485 lbs)
• Noise level: Less than 70dB (A)
• Outline dimension: Ctn.1: 1130*1020*900 / Ctn.2: 1270*530*420

Make Room. Work Better.

The FTC-1670 is the upgrade that changes how tire work feels in your garage. More room, more control, and the confidence to handle bigger rubber without breaking a sweat.
