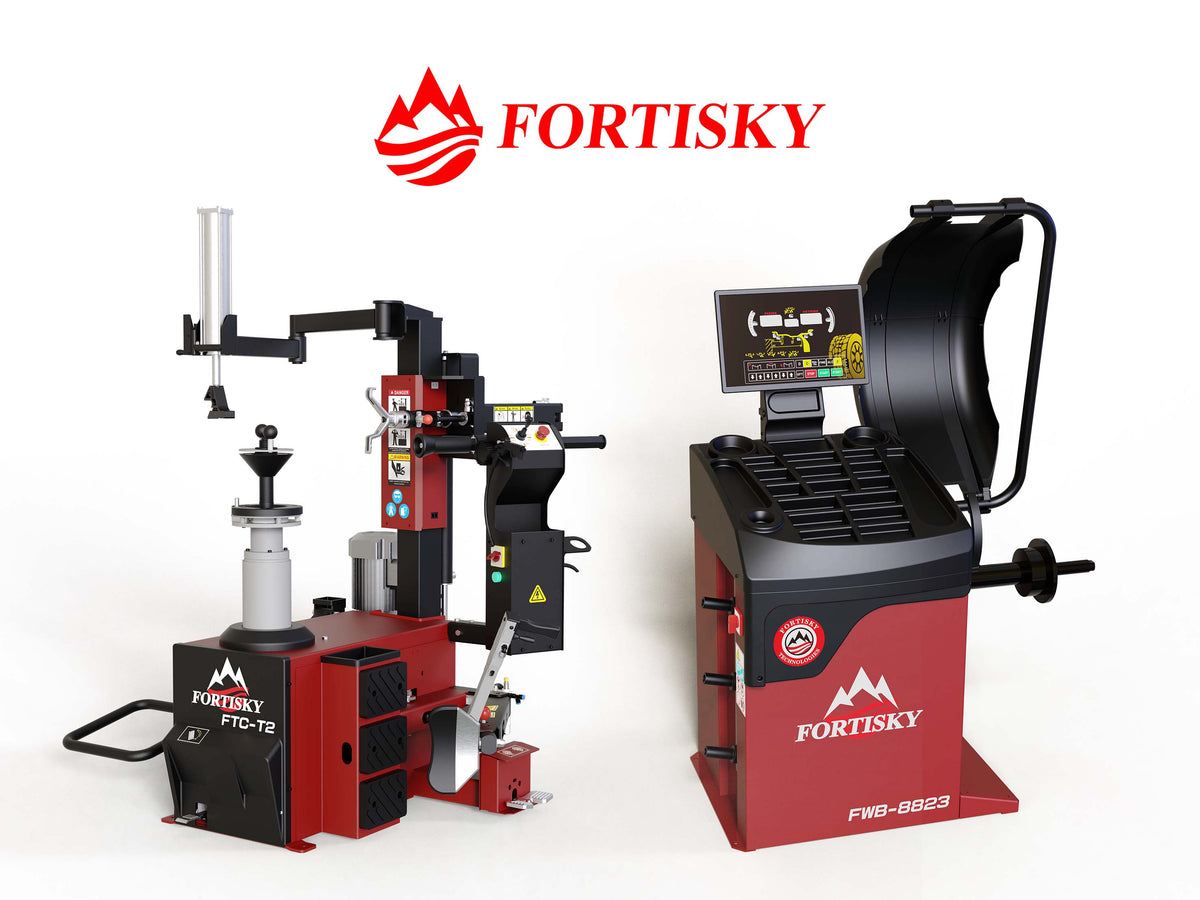

This is the top of our combo lineup: the FTC-T2 leverless hydraulic center post tire changer with the FWB-8823 laser-guided wheel balancer. No tire iron on the changer, no typing in rim numbers on the balancer, and both handle 28-inch wheels.

The FTC-T2 needs a 220V single-phase line, and the FWB-8823 runs on 110V. It's built for the enthusiast or shop working on performance and specialty wheels who wants to keep tools off the rim. SKU: T2-8823

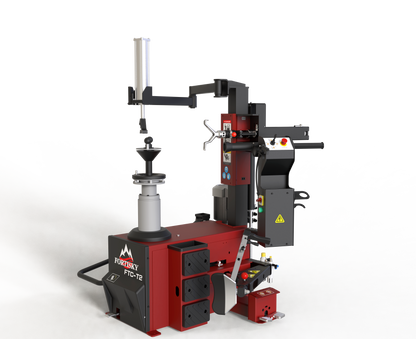

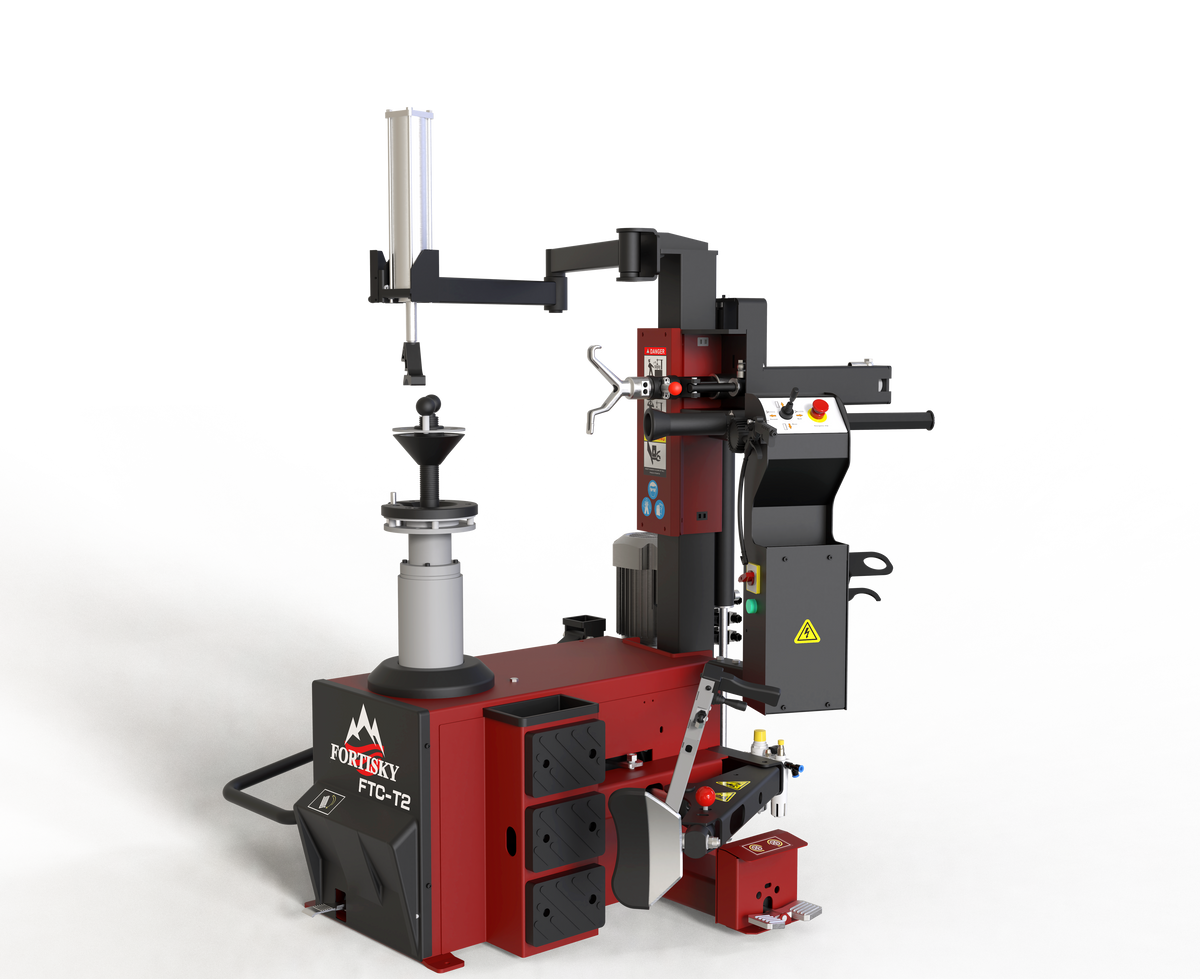

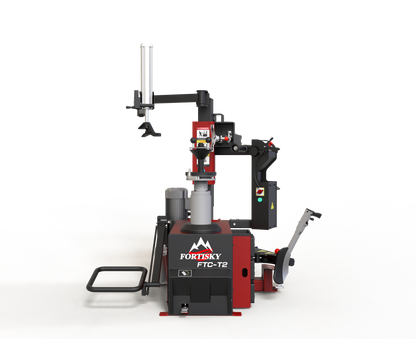

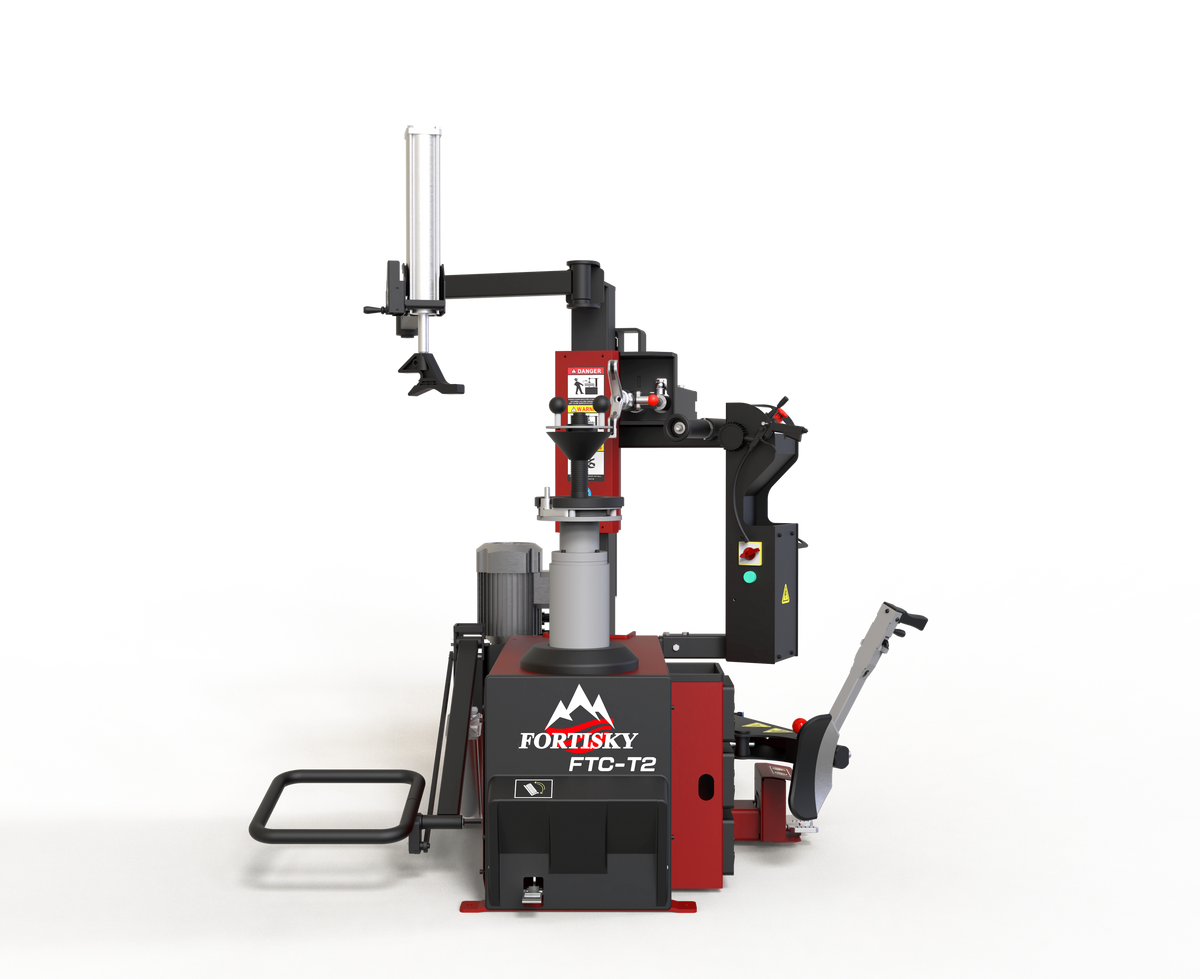

FTC-T2 Tire Changer

• Integrated central column synchronizes the hook head and pressing wheel through the entire mount and demount cycle
• Mounts and demounts complex tires on a single plane, reducing repositioning steps
• Electronic control system turns off automatically when operation pauses and restarts when resumed
• Hydraulic control gives stability and precision pneumatic systems cannot match, especially on stiff sidewalls or unusual profiles

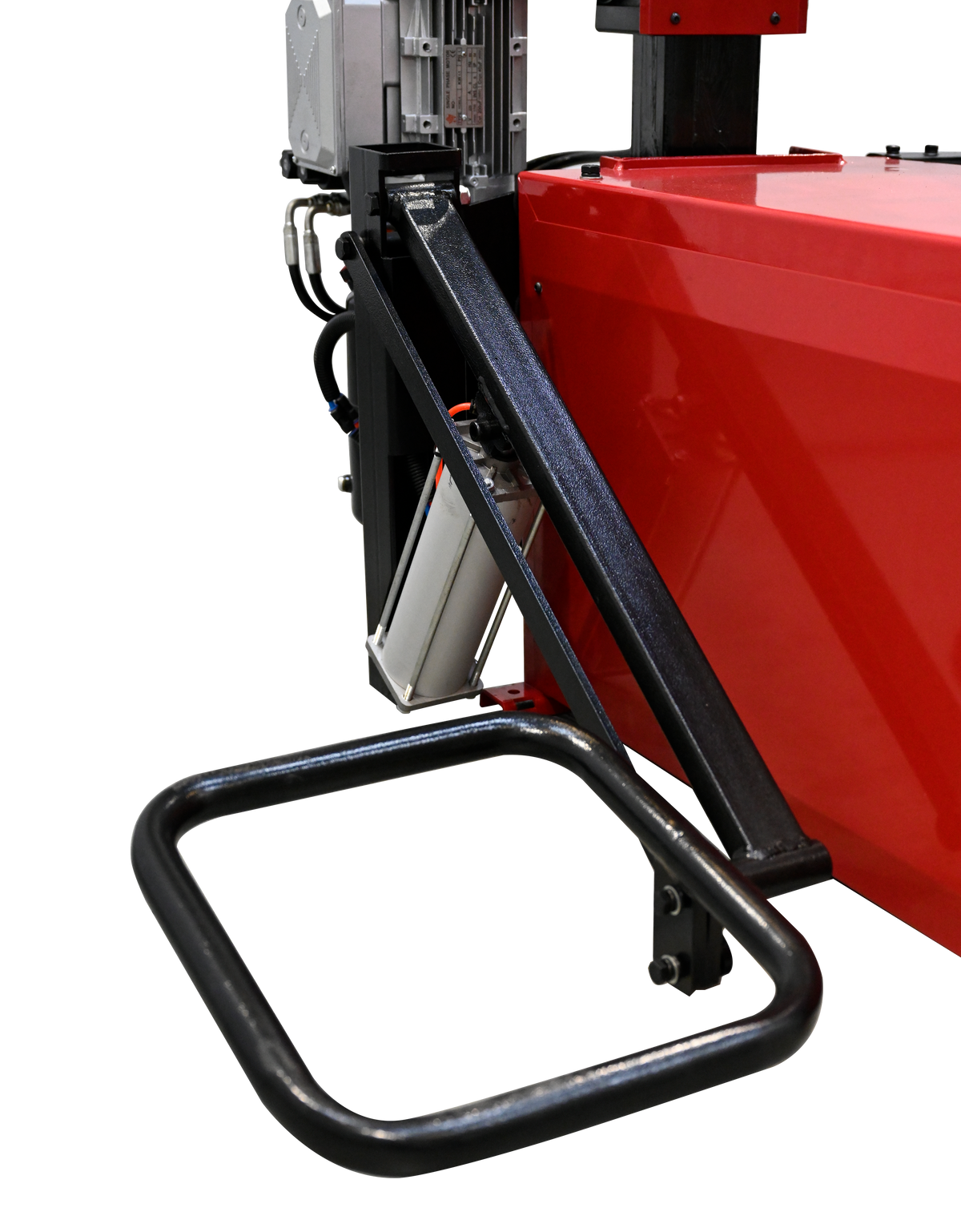

• Ergonomic tire lifting system is simple, stable, and designed for high working throughput
• Hook head works with the hydraulic system to maintain steady contact without touching the rim surface

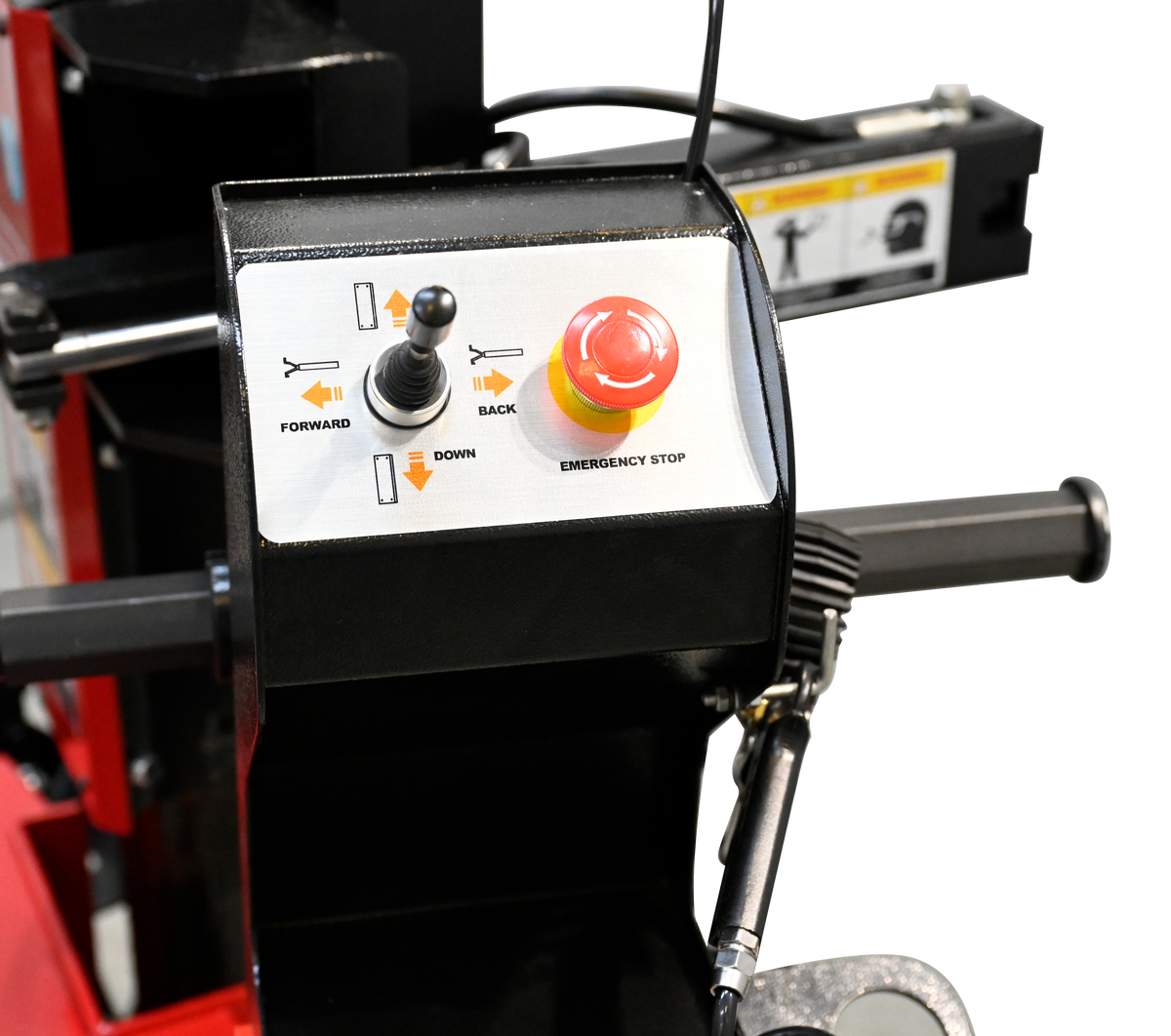

• Hand-controlled bead breaking gives the operator direct feel during demount

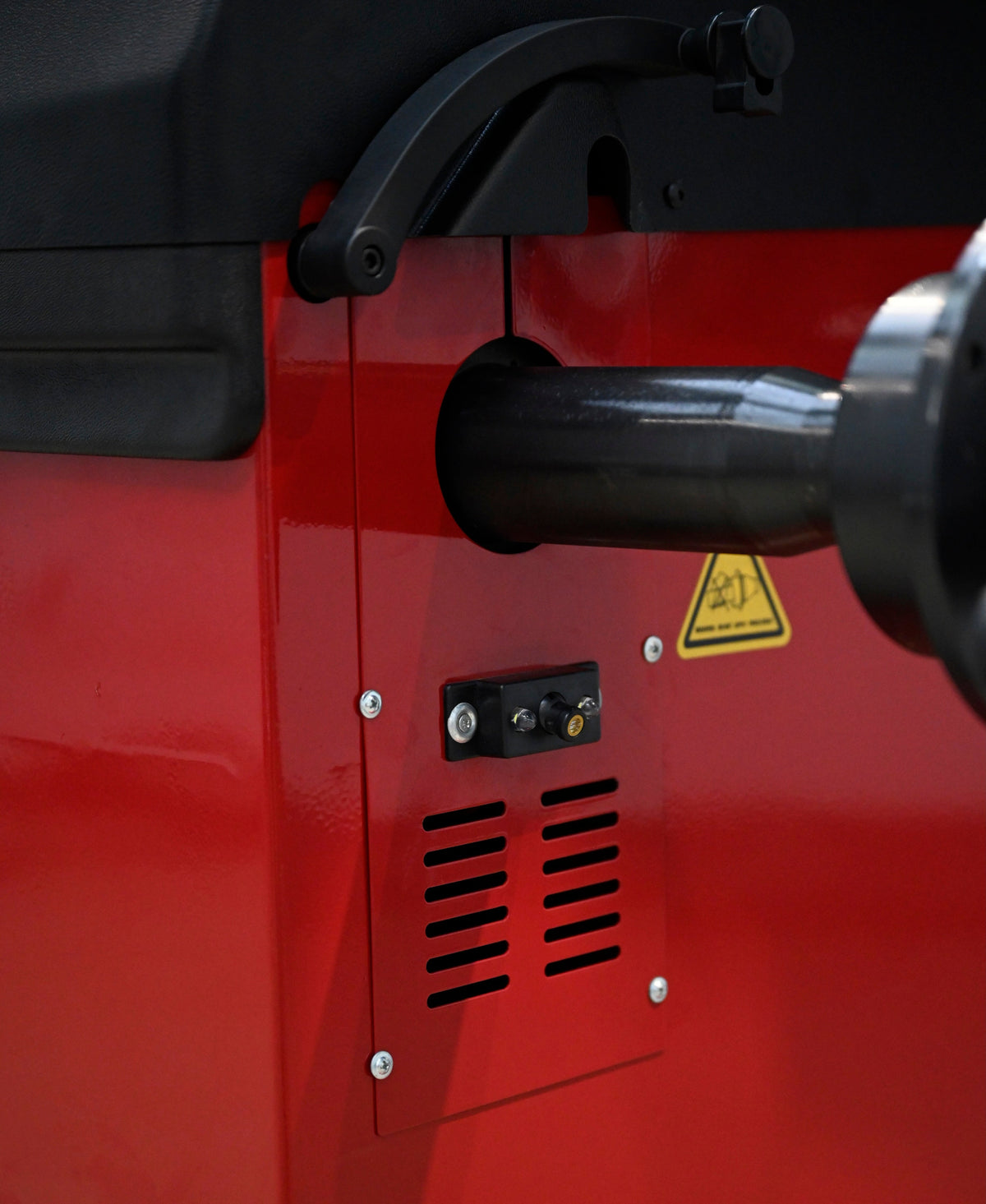

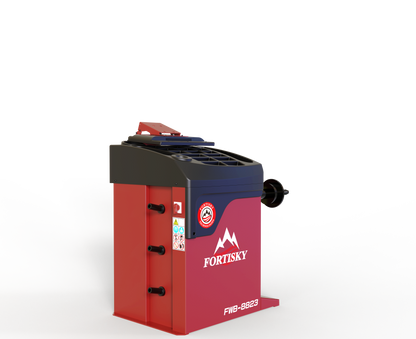

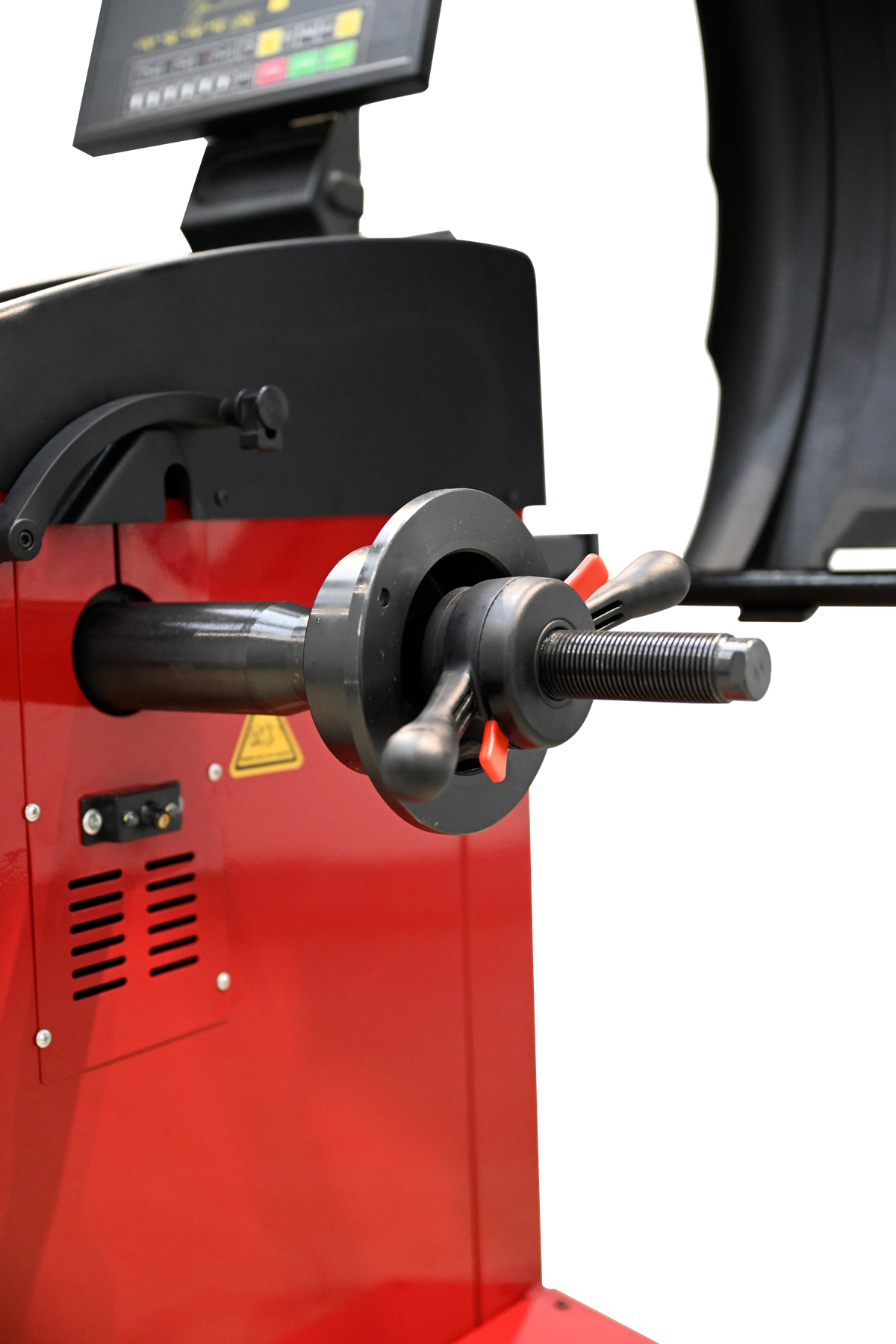

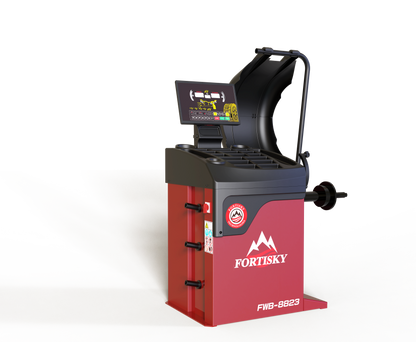

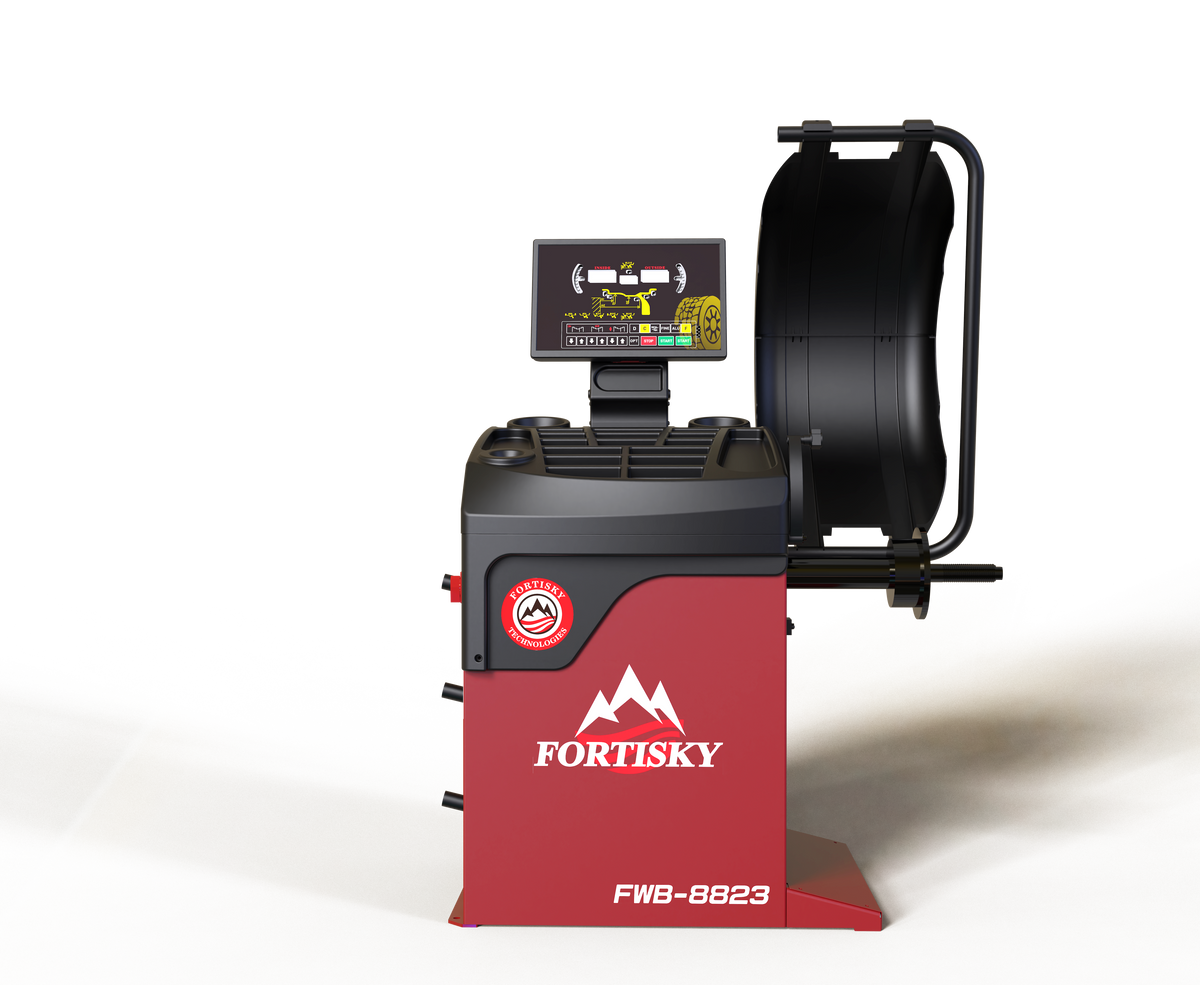

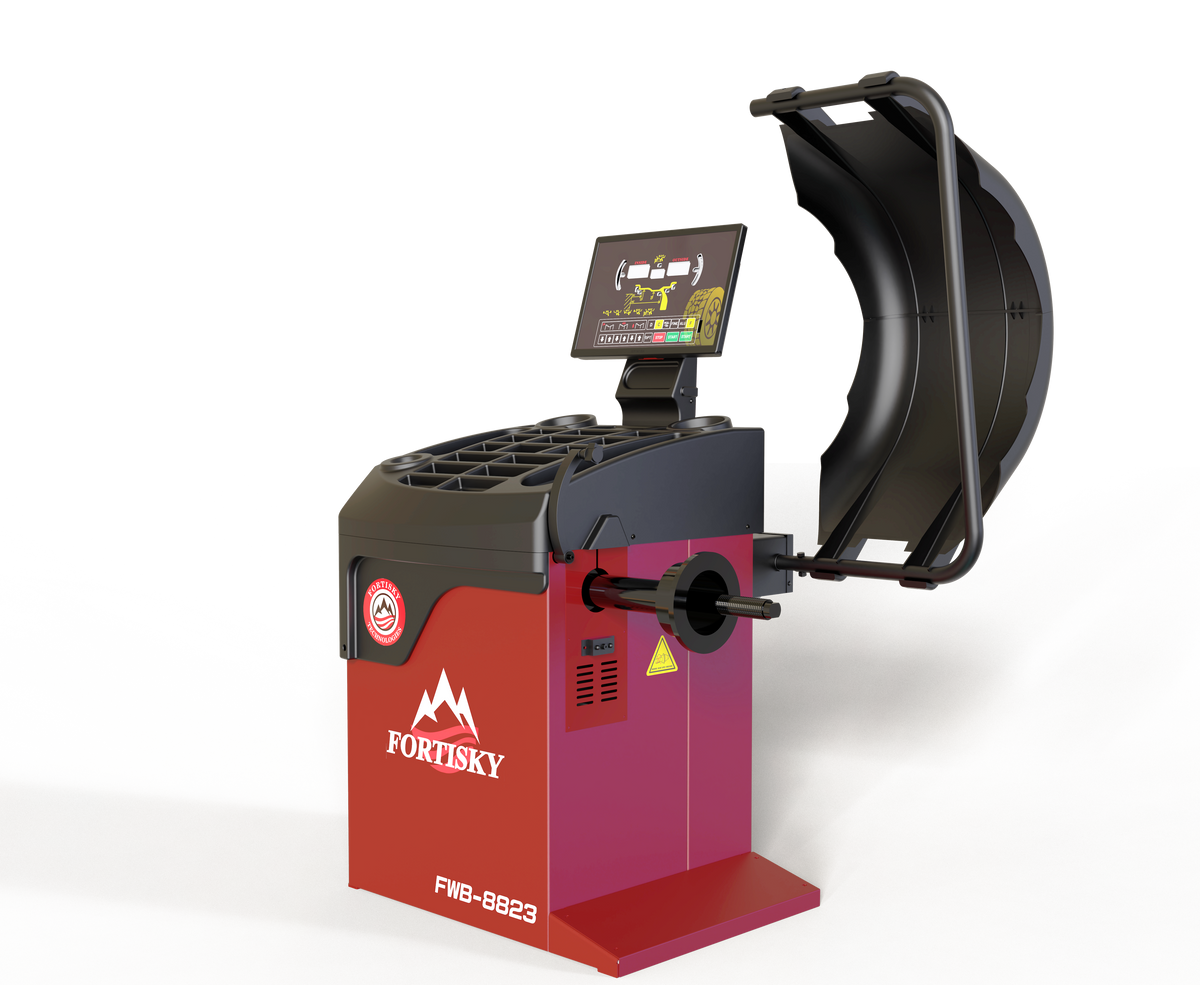

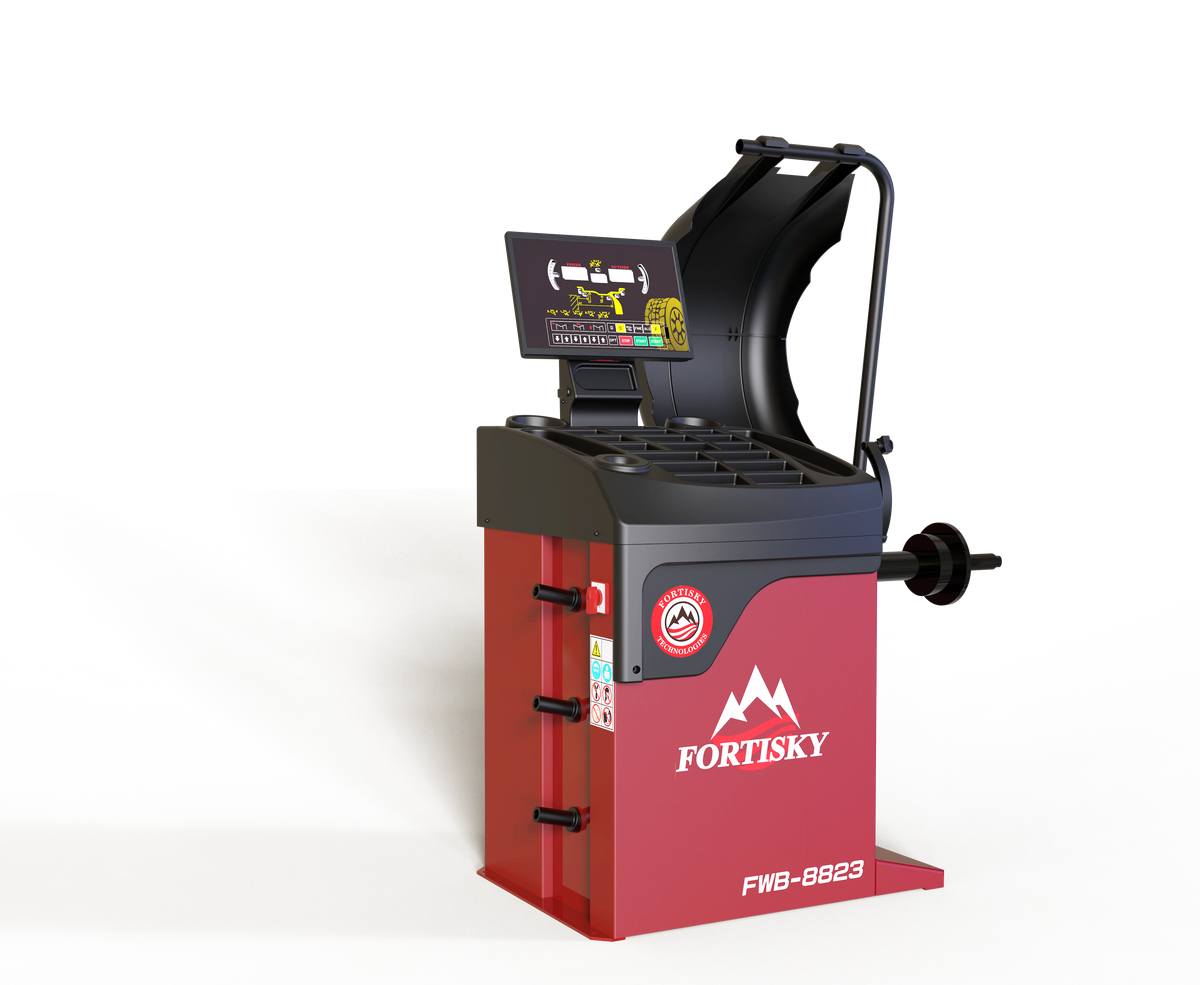

FWB-8823 Wheel Balancer

• 2D fully automatic data entry: gathers rim measurements via a linear grating measurement scale
• No entering diameter or distance by hand: drop the guard, press start, and it spins
• Smart balance-point positioning rotates the wheel to the correct position with a single key press
• Built-in visual laser puts a light exactly on the weight placement spot
• Built-in LED fill light for reading the wheel in low-light conditions
• Multiple balance modes for standard steel rims through complex alloy profiles
• Self-calibration keeps readings accurate over time
• Ships complete with the wheel guard

FTC-T2 Tire Changer

• Model: FTC-T2
• Applicable rim size: 10 inches – 28 inches
• Maximum tire diameter: 1,200mm (47 in)
• Maximum tire width: 76mm – 406mm (3 in – 16 in)
• Bead breaker force at 10 bar: 3,000kg (6,614 lbs)
• Operating air pressure: 8 bar – 10 bar (116 – 145 psi)
• Maximum charge (inflation) pressure: 3.5 bar (50 psi)
• Motor power: 1.5 kW
• Drive system: Full hydraulic — superior stability vs. pneumatic
• Column structure: Integrated center post — hook head and pressing wheel synchronized
• Operation plane: Single-plane — handles complex and hard-to-remove tire profiles

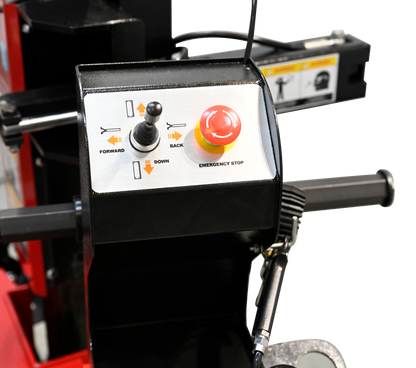

• Control system: Advanced electronic — auto-stop and auto-restart
• Bead breaking: Hand-controlled for operator precision

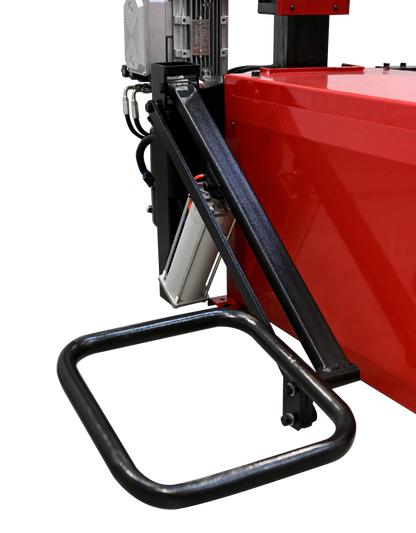

• Tire lifting: Integrated ergonomic system — high working throughput
• Leverless operation: Yes — no crowbar required
• Compatible tires: All passenger, performance, run-flat, and specialty profiles
• National invention patent: Yes
• Power supply: 220V | 60Hz | Single phase
• Noise level: Less than 70dB (A)
• Net weight: 366kg (807 lbs)
• Dimensions: 1,470 × 1,050 × 1,730mm (L × W × H)

FWB-8823 Wheel Balancer

• Model: FWB-8823
• Applicable rim size: up to 30 inches
• Wheel width range: 1.5 inches – 15 inches
• Maximum tire weight: 75kg (165 lbs)
• Balance accuracy: ±1g
• Equilibrium speed: 200 RPM
• Equilibrium cycle time: 7 – 10 seconds
• Measurement system: Linear grating scale — auto-captures rim diameter and distance
• Data entry: 2D fully automatic
• Display: LED screen
• Laser guidance: Visual laser pinpoints exact weight placement location
• LED fill light: Built-in — improves visibility in low-light environments
• Balance point positioning: Smart auto-rotate and lock — one key press
• Electronic brake: Yes — holds wheel stationary during weight application
• Auto-start: Yes — activates when wheel guard is lowered
• Self-calibration: Yes

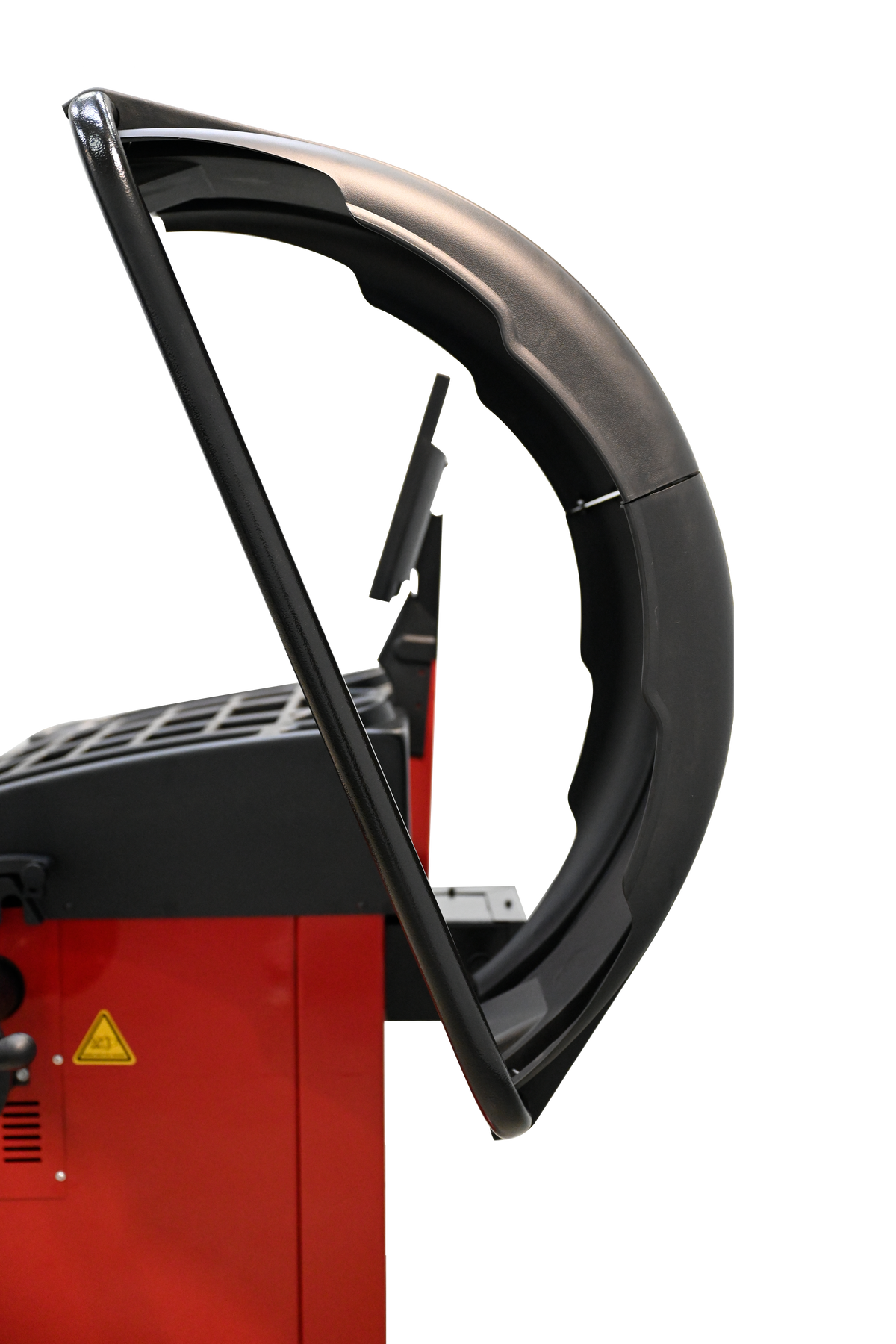

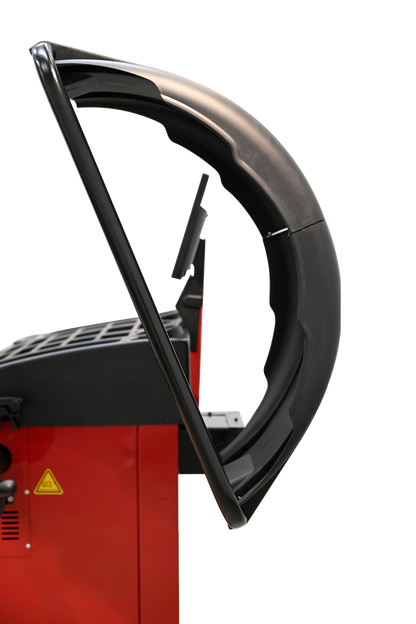

• Wheel guard: Included
• Motor power: 250W
• Power supply: 110V | 60Hz | Single phase
• Noise level: Less than 70dB (A)
• Net weight: 114kg (251 lbs)
• Working environment temperature: 0~50℃

Leverless Mount. Laser Balance.

The T2 handles hard-to-remove tires on a single plane with hydraulic control, and the 8823 measures the rim, rotates to the weight spot, and lights it up. It's the setup for wheels you don't want anyone else touching, for less than buying the two machines separately on our site.

FTC-T2 Manual (PDF)

FWB-8823 Manual (PDF)
