⚠ Currently on Backorder — This item is temporarily out of stock. Orders placed now will ship as soon as inventory is available. Contact us for estimated lead time.

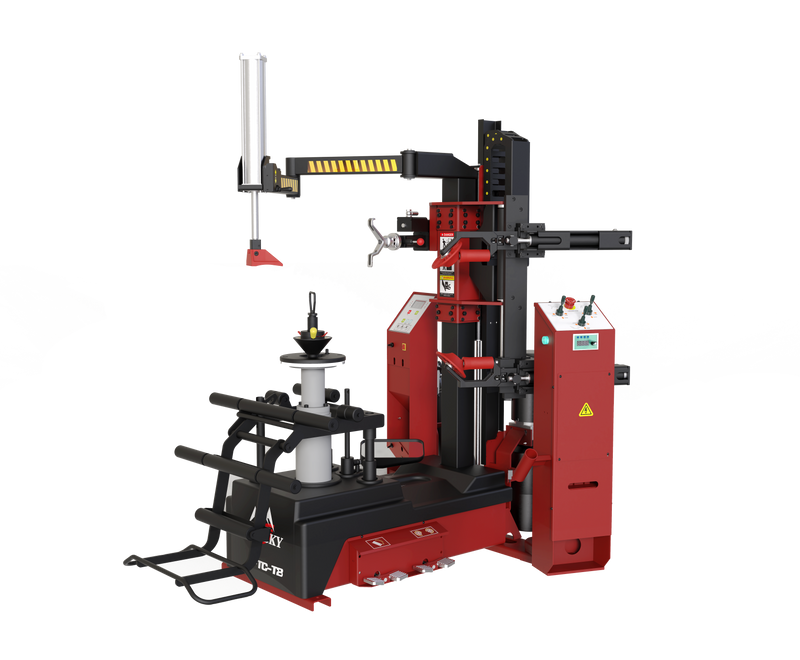

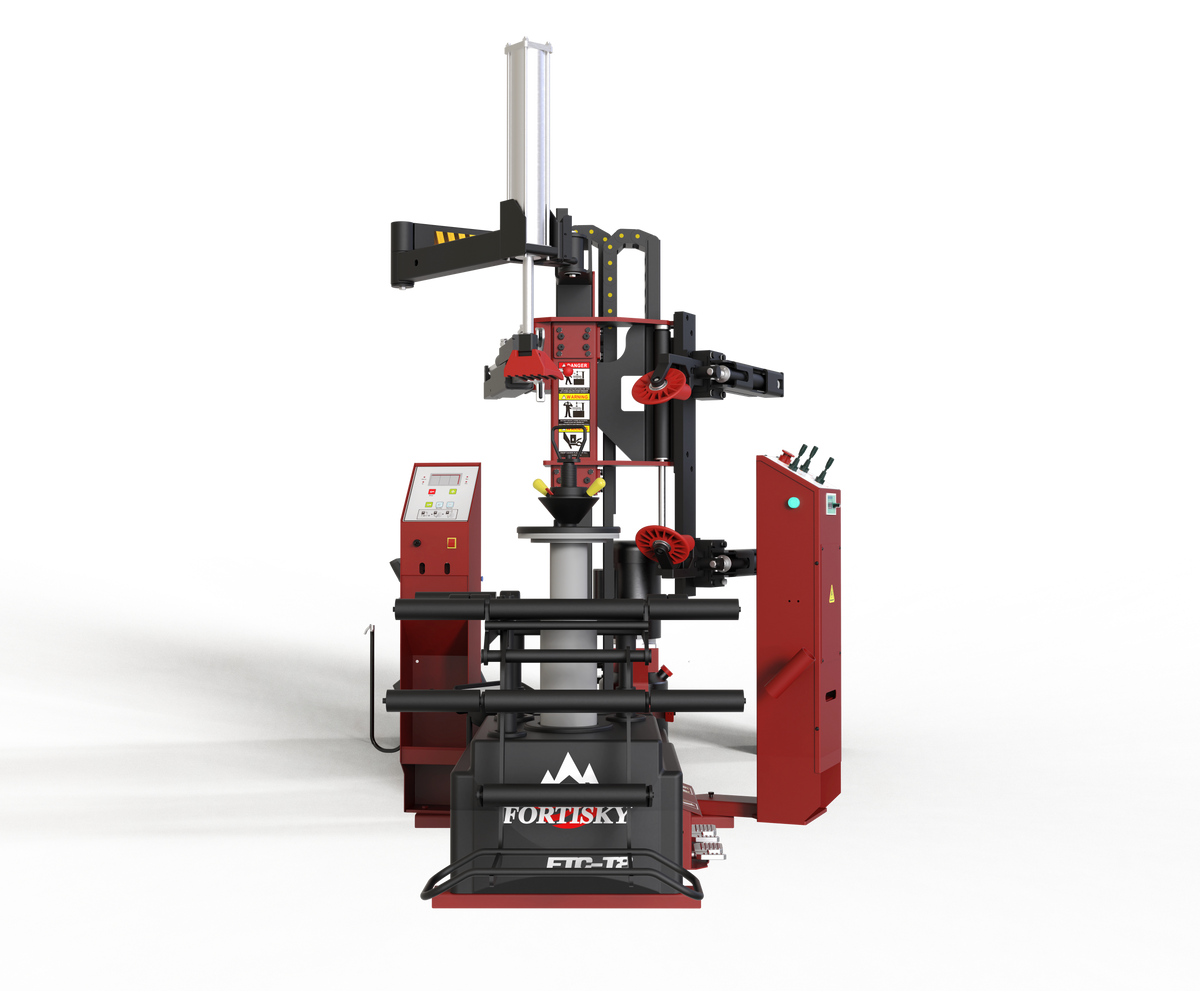

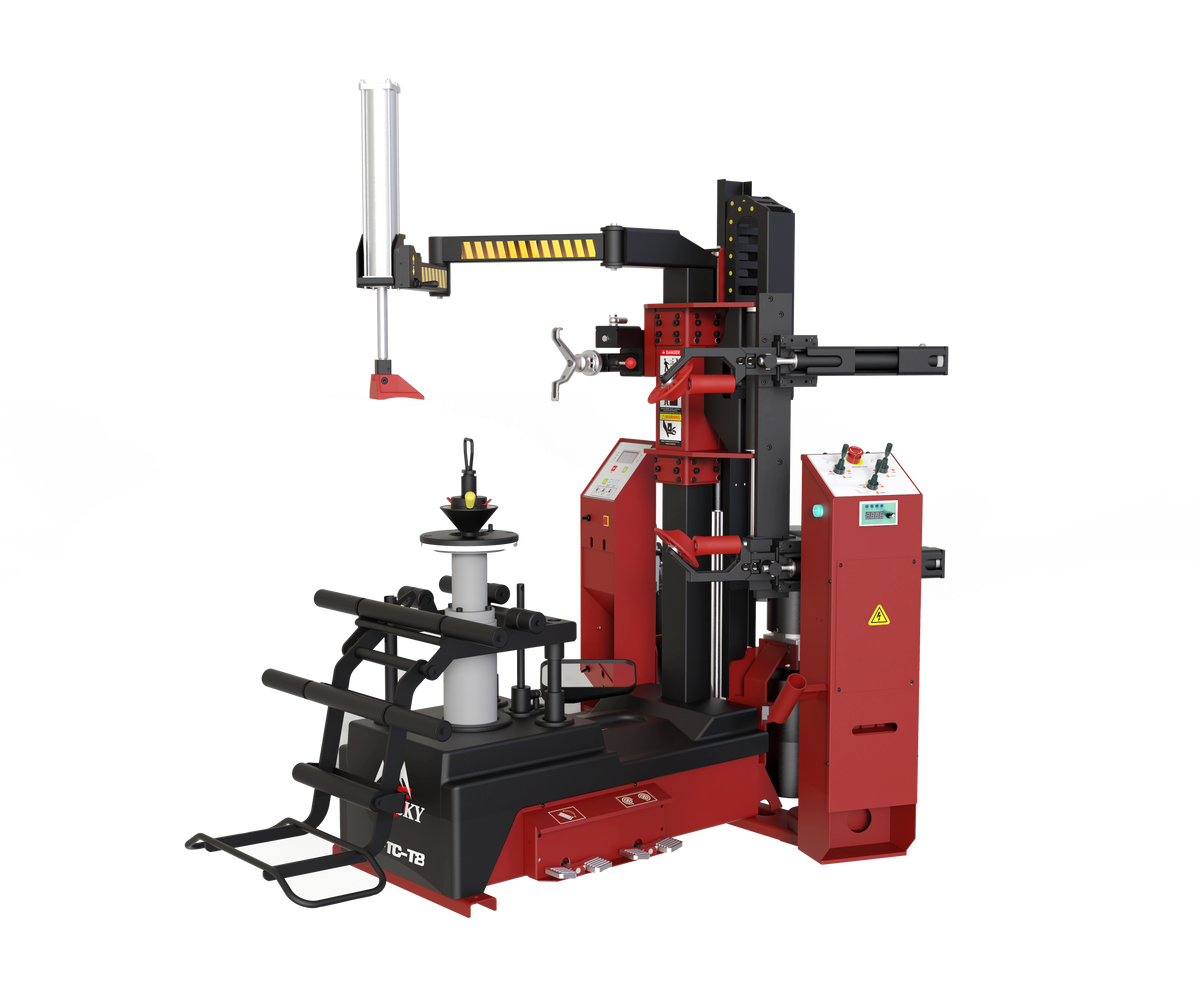

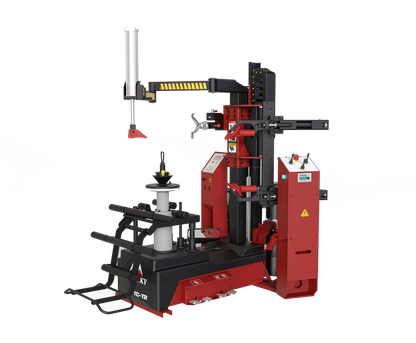

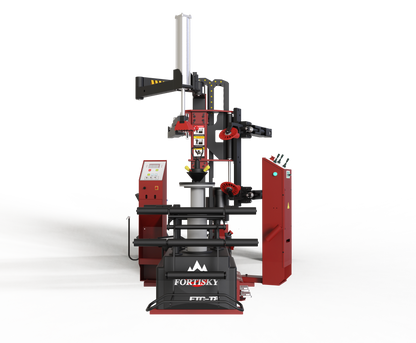

The FTC-T8 is a fully automatic leverless center post tire changer with a 3.0HP servo motor, patent-holding hydraulic system, and double pressure wheel design that mounts and demounts without a crowbar touching your wheel.

It handles low-profile, run-flat, high-end car, SUV, and staggered fitments with the control needed to keep expensive rims looking the way they should. SKU: FTC-T8

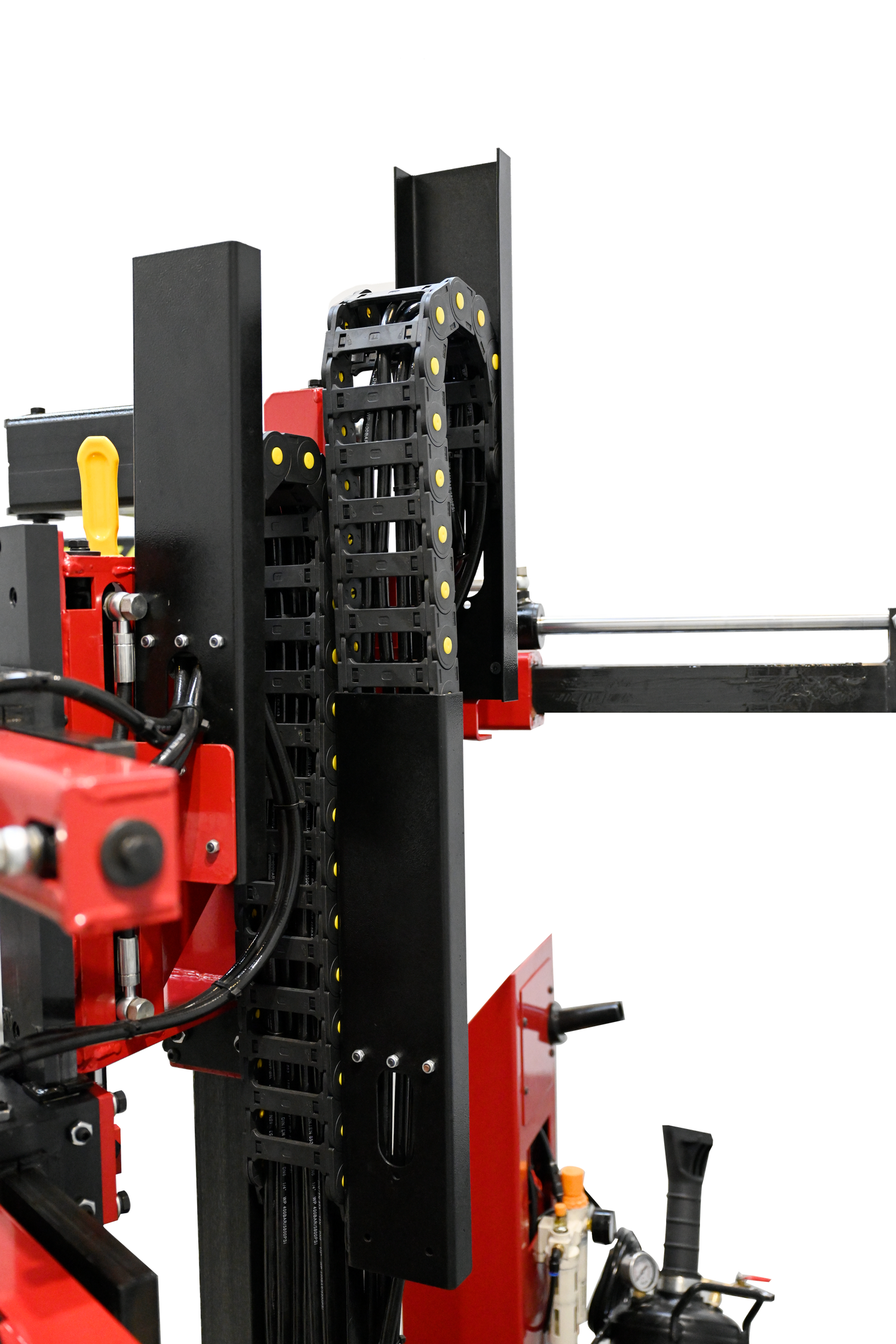

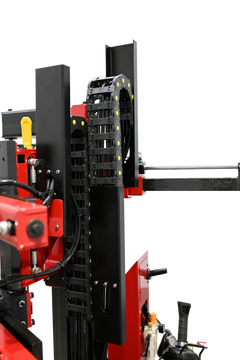

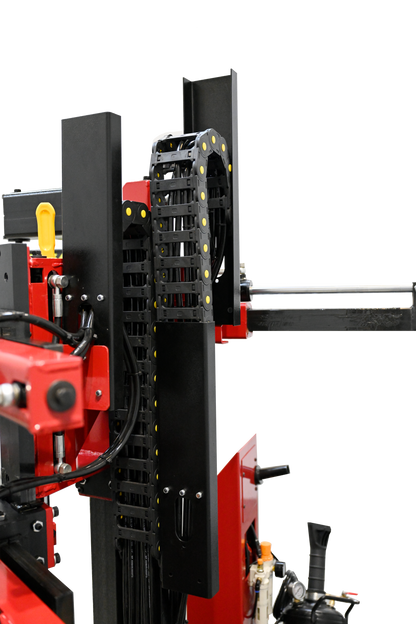

• Integrated middle column gangs the upper and lower pressure heads so both move in sync during mount and demount
• 3.0HP servo motor with low noise and full stepless speed control
• Hydraulic control throughout for stability and precision that pneumatic systems can't match
• Double pressure wheel design adapts to all tire types and mounts and demounts on a single plane

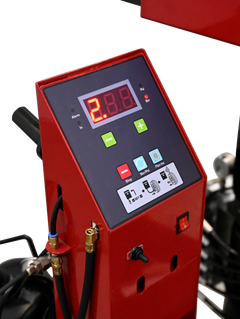

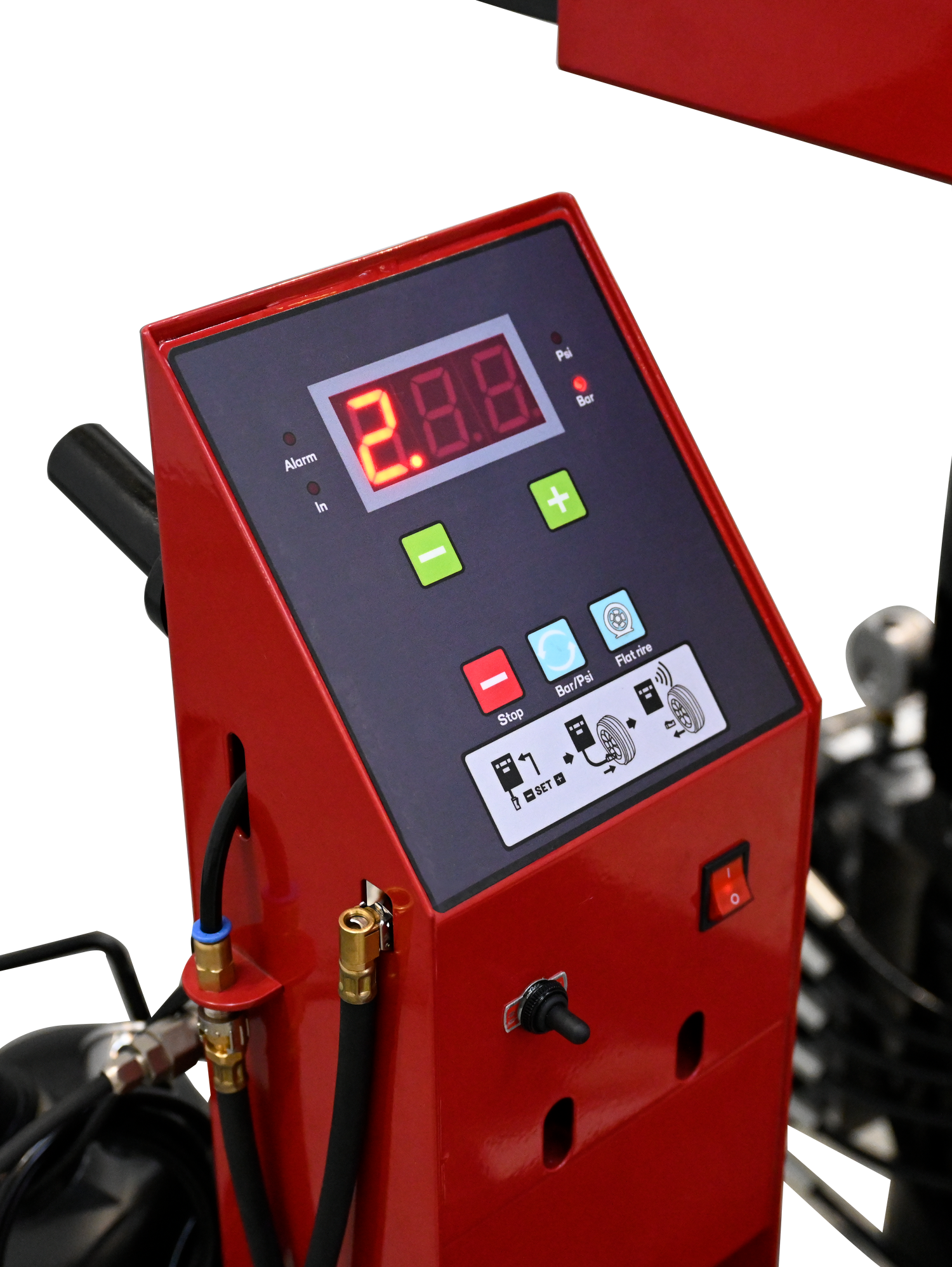

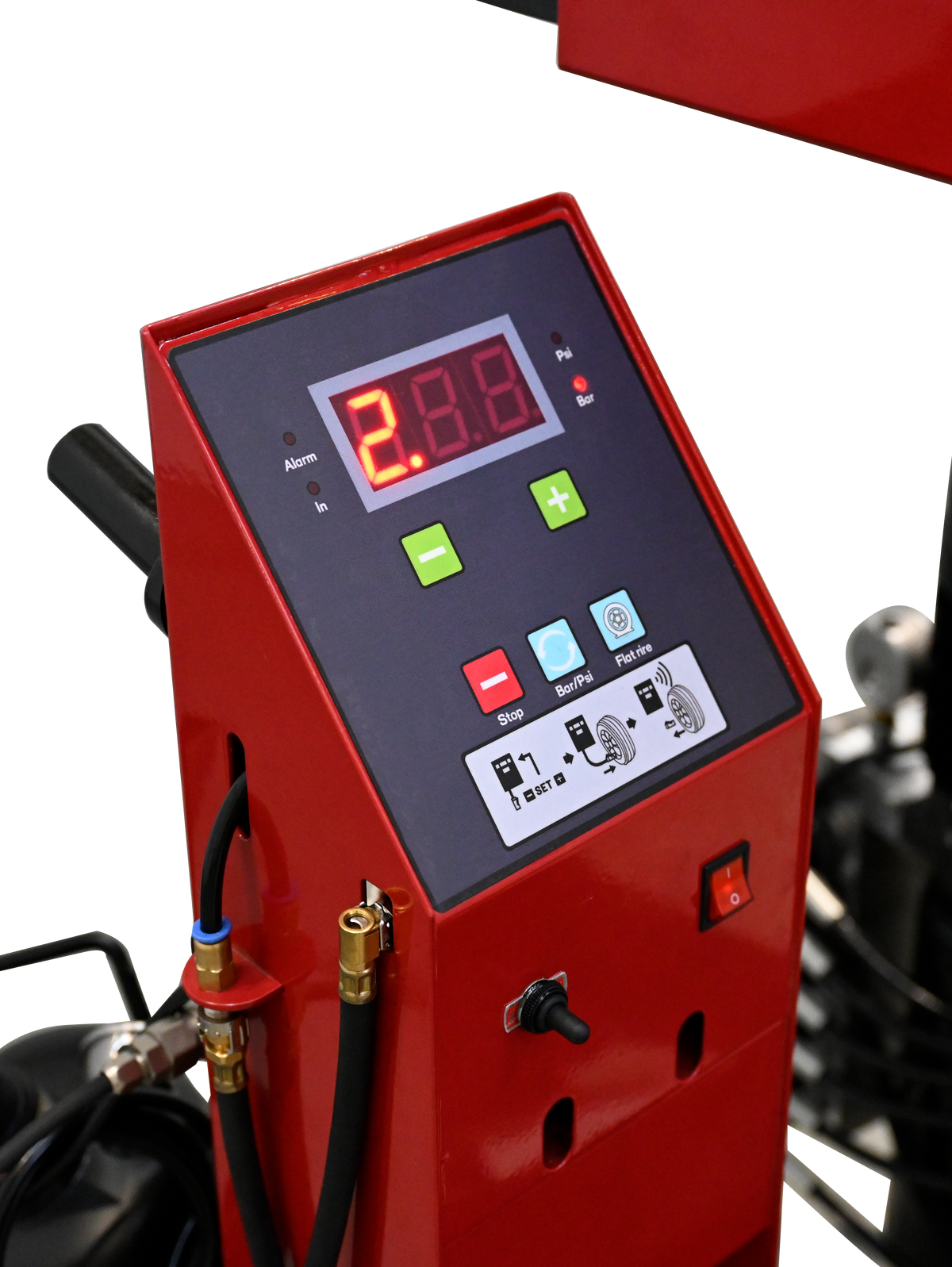

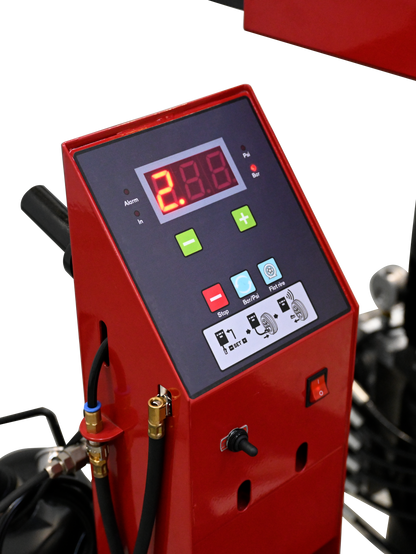

• Automatic inflation device lets you set a target PSI and walk away

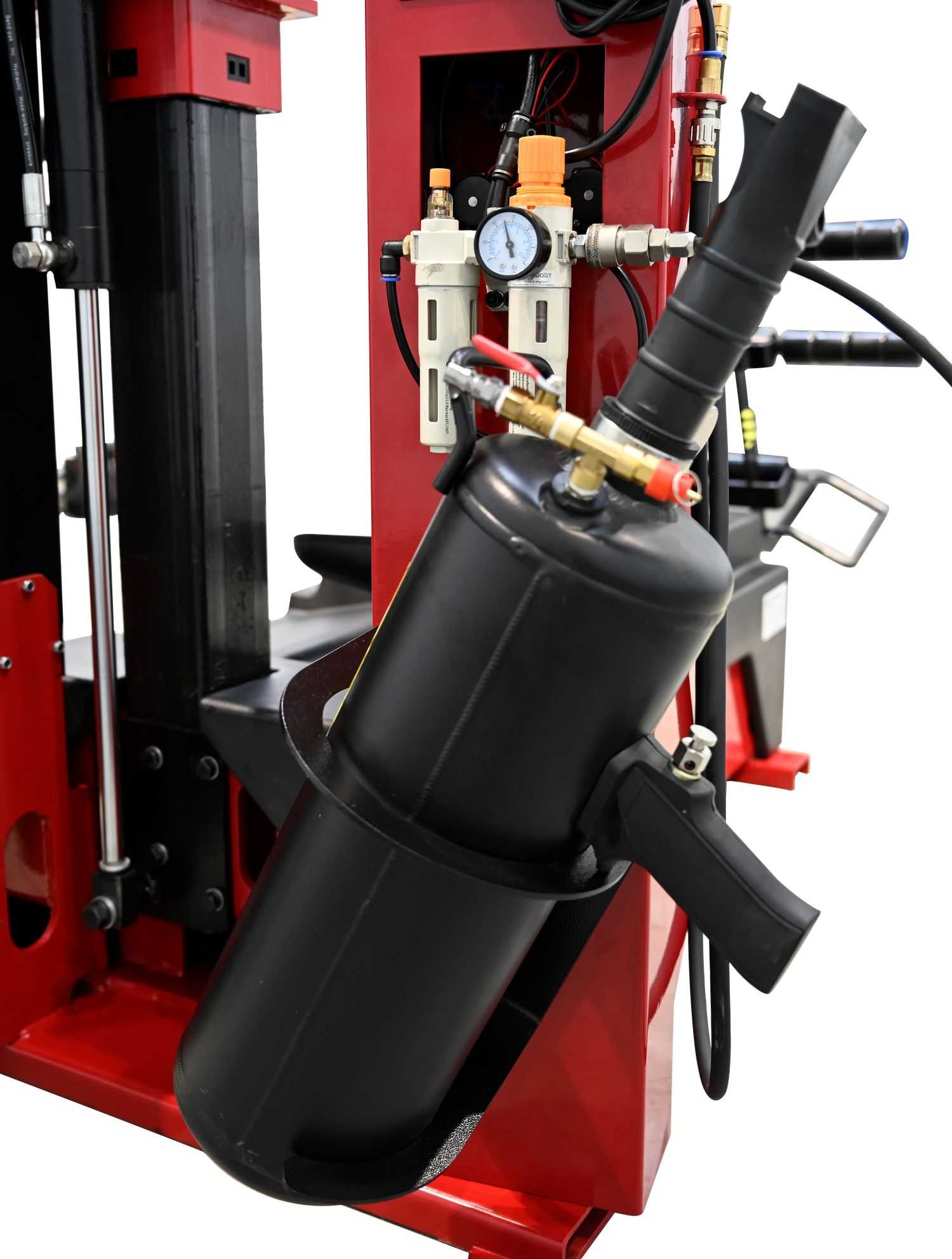

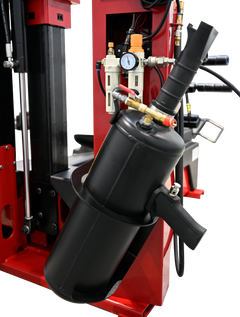

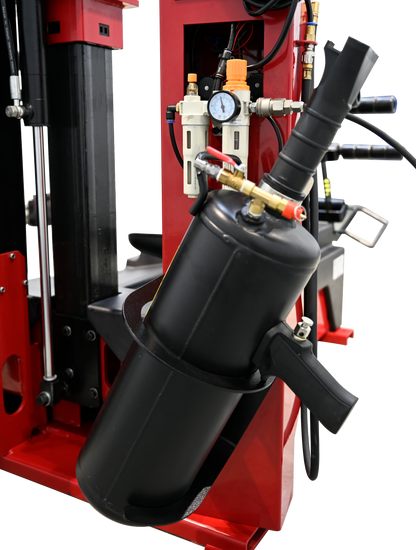

• Bead blast system uses a double-button design for safety
• Hook head works with the hydraulic system to prevent rim contact during operation
• Multiple patents on the core design
• Suitable for all low, medium, and high-end cars, SUVs, and specialty tires

• Model: FTC-T8
• Applicable rim size: 10 inches – 30 inches
• Maximum tire diameter: 1,250mm (49.2 in)
• Maximum tire width: 400mm (15.7 in)
• Bead breaker force (at 10 bar): 3,000kg (6,614 lbs)
• Motor: 3.0HP servo — stepless speed control, low noise
• Drive system: Full hydraulic — superior stability vs. pneumatic
• Column structure: Integrated center post — upper and lower heads synchronized
• Pressure wheel: Double wheel design — handles all profiles including low-profile and run-flat
• Hook head: Engineered to prevent rim contact throughout the cycle
• Bead blast: Double-button safety design
• Auto inflation: Target PSI programmable — auto-complete
• Leverless operation: Yes — no crowbar required
• Compatible vehicles: All passenger cars, SUVs, and specialty tire fitments
• Patents: Multiple national design and utility patents
• Power supply: 220V | 60Hz | Single phase
• Noise level: Less than 70dB (A)
• Net weight: 525kg (1,157 lbs)
• Dimensions: 1,590 × 1,250 × 1,730mm (L × W × H)
• Operating hydraulic pressure: 13-16MPa

Protect the Rubber and the Rim

The FTC-T8 is the machine you buy when you're working on tires that matter: expensive rims, performance rubber, or specialty fitments you can't afford to scratch.
