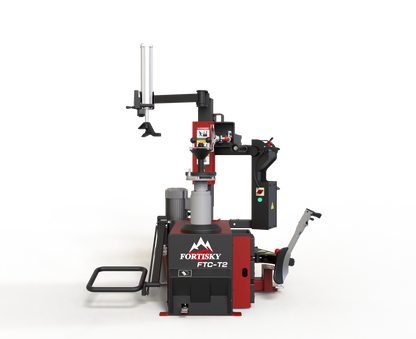

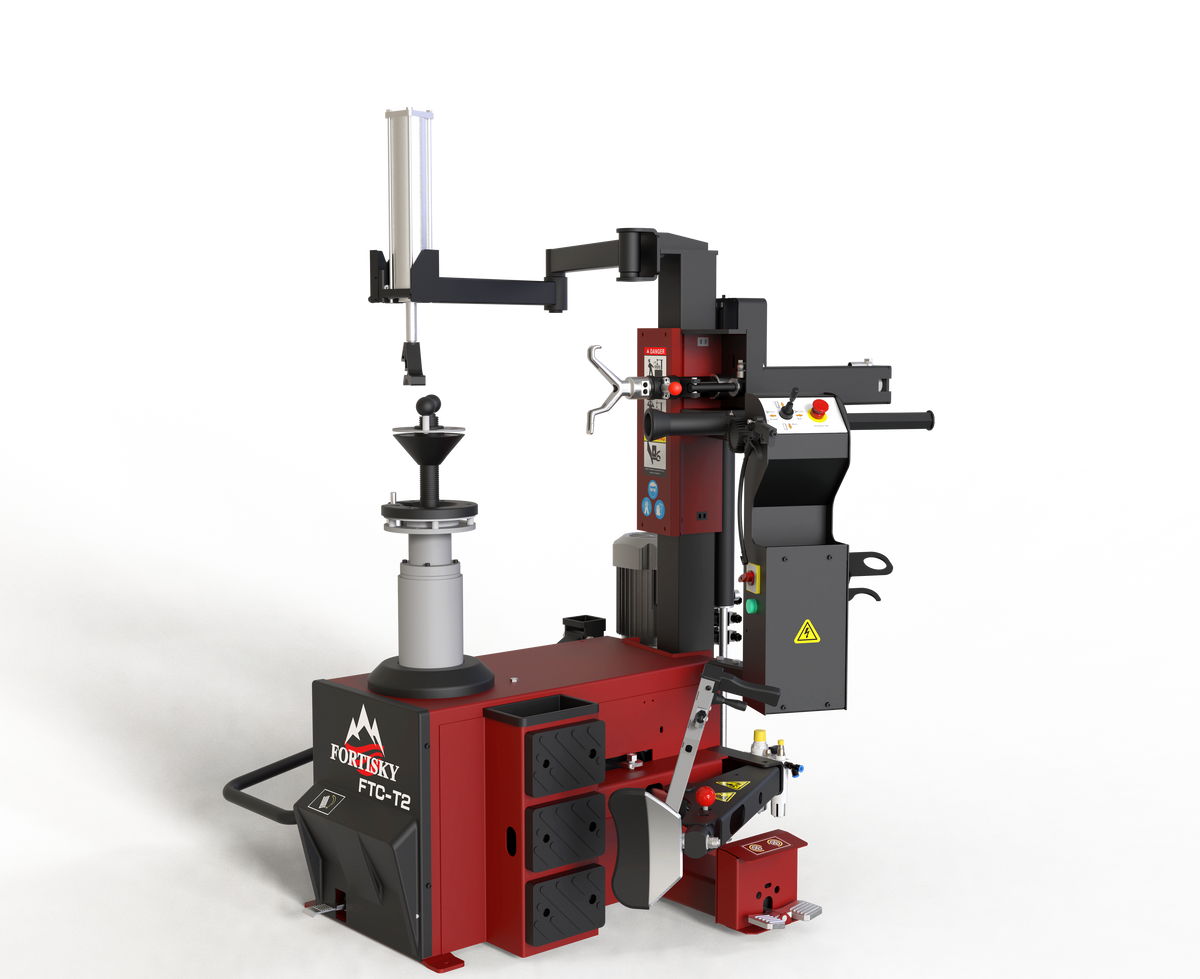

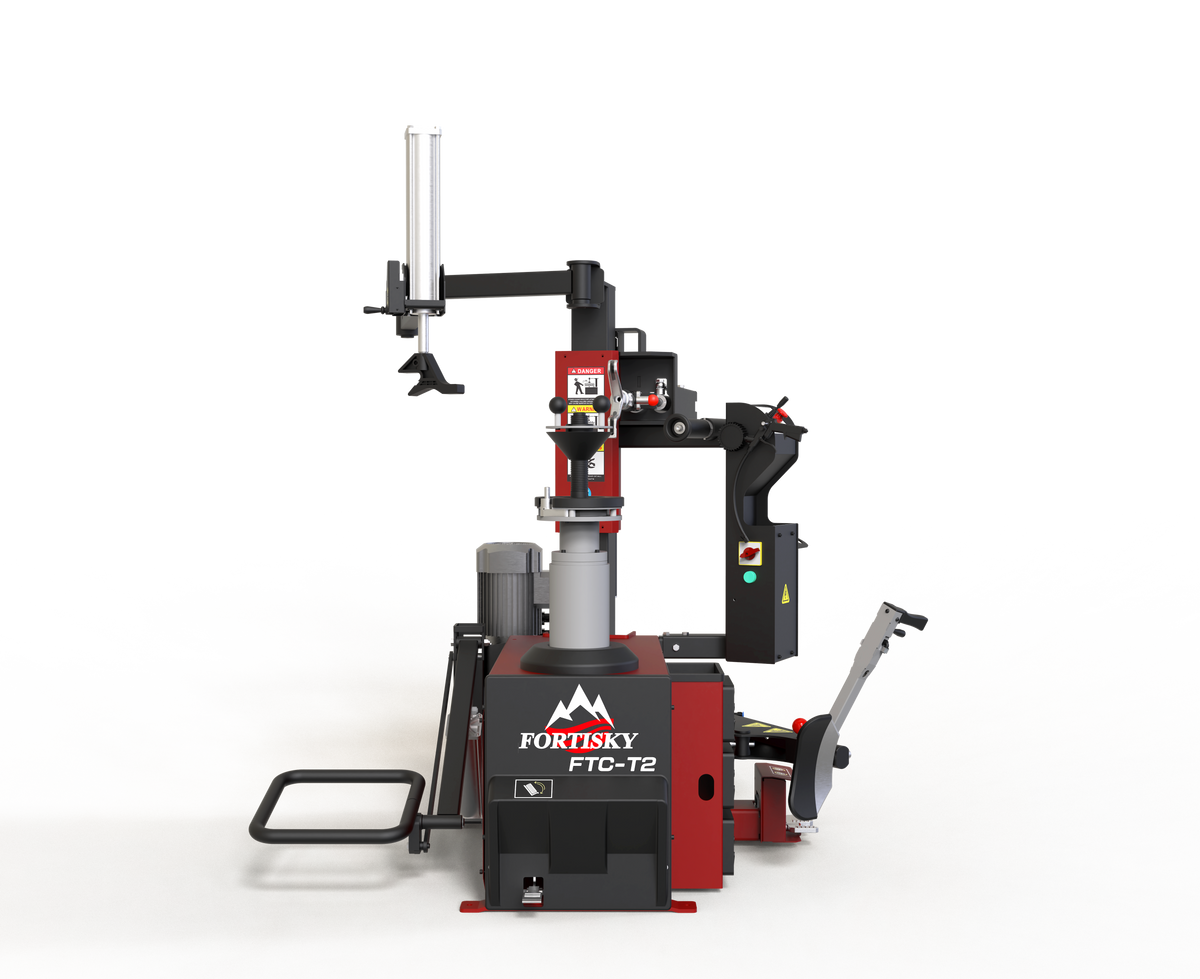

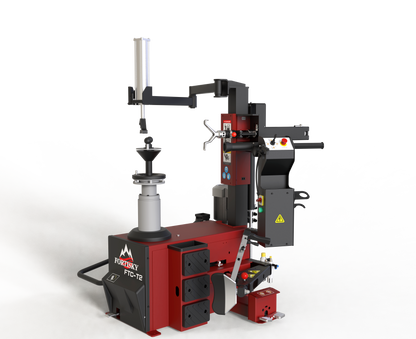

The FTC-T2 is a fully automatic, fully leverless tire changer driven by hydraulic control that is more stable and more precise than pneumatic. It handles complex and hard-to-remove tires on a single working plane without scratching the rim.

Built for performance vehicles, specialty tires, or anything that requires more finesse than a basic machine can provide. SKU: FTC-T2

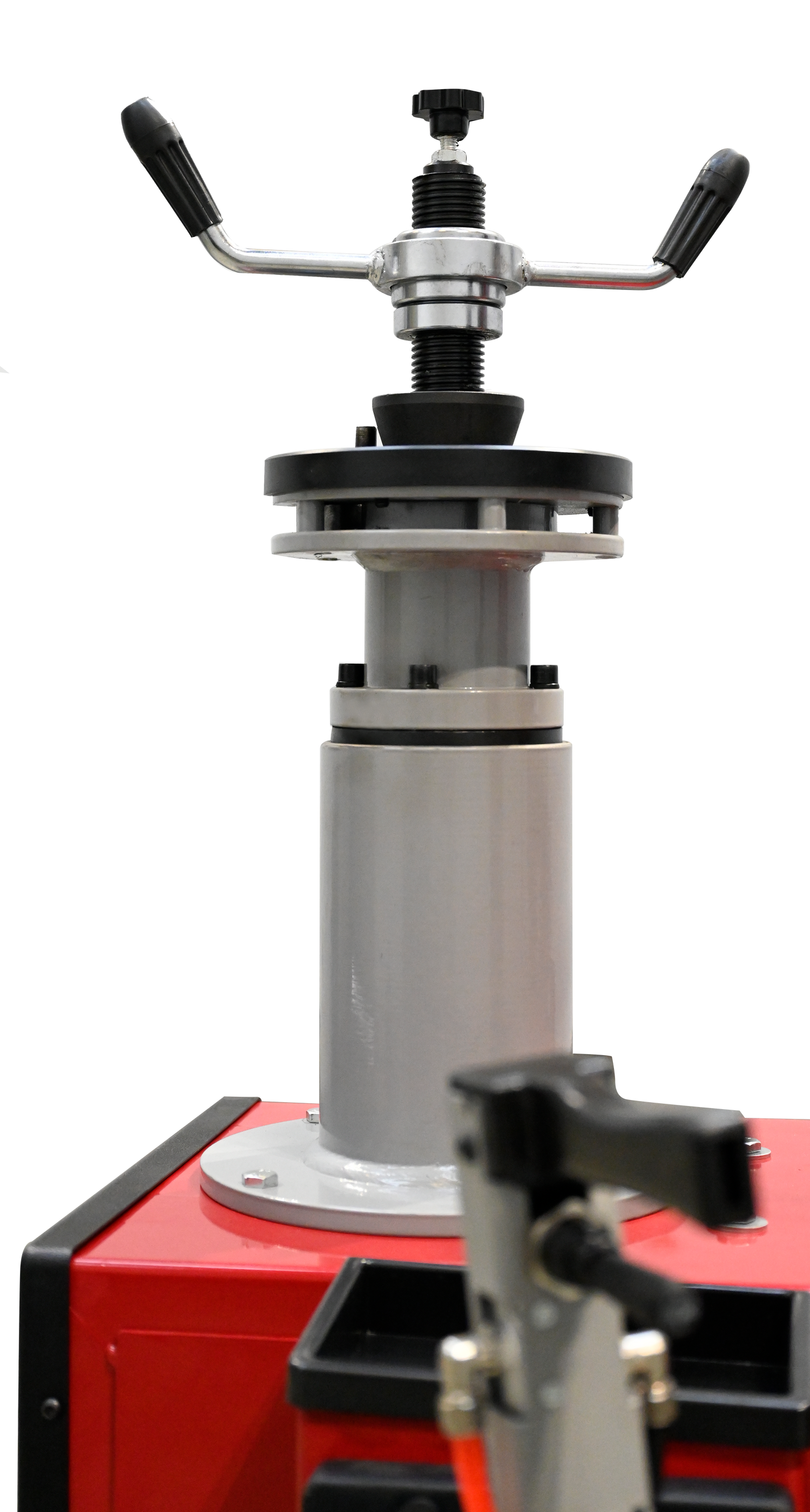

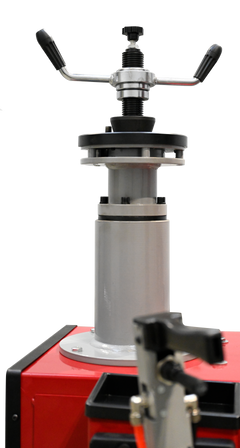

• Integrated central column synchronizes the hook head and pressing wheel through the entire mount and demount cycle
• Mounts and demounts complex tires on a single plane, reducing repositioning steps

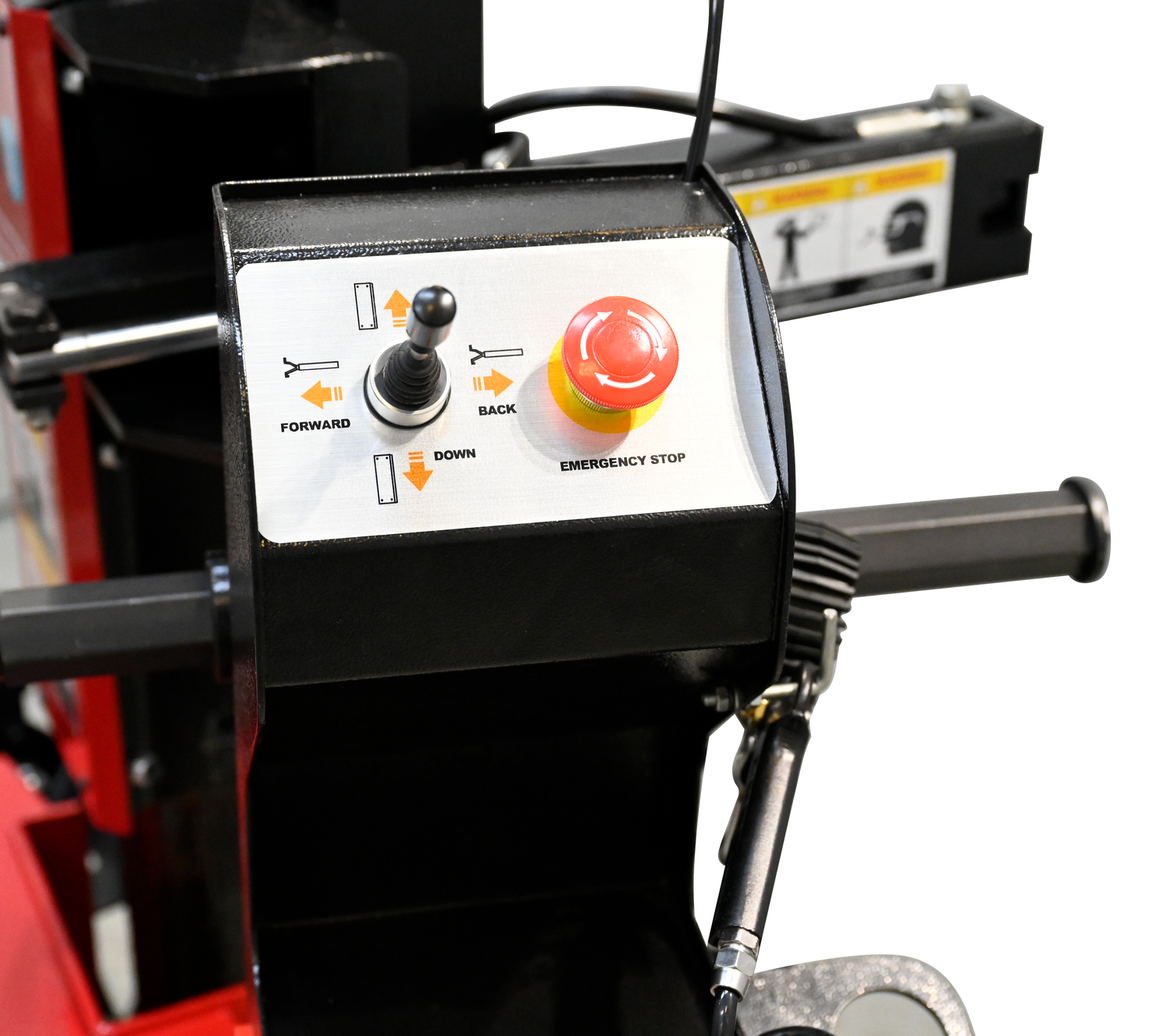

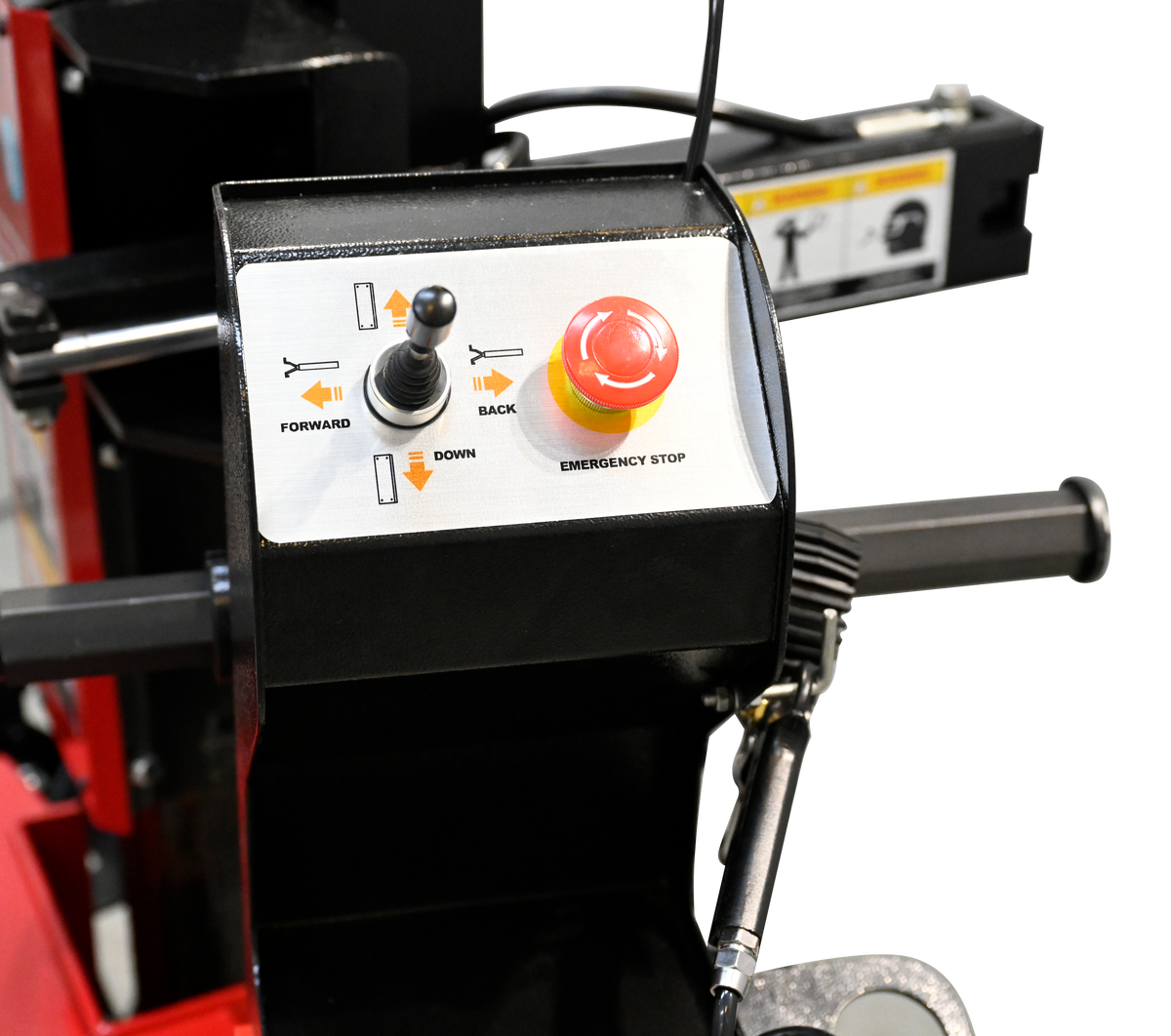

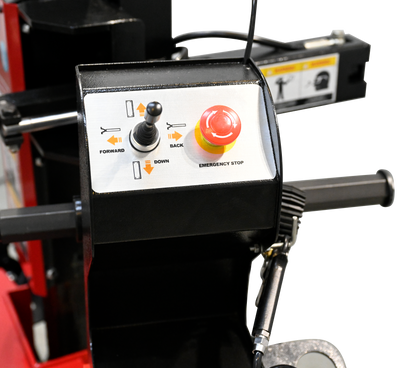

• Electronic control system turns off automatically when operation pauses and restarts when resumed
• Hydraulic control gives stability and precision pneumatic systems cannot match, especially on stiff sidewalls or unusual profiles

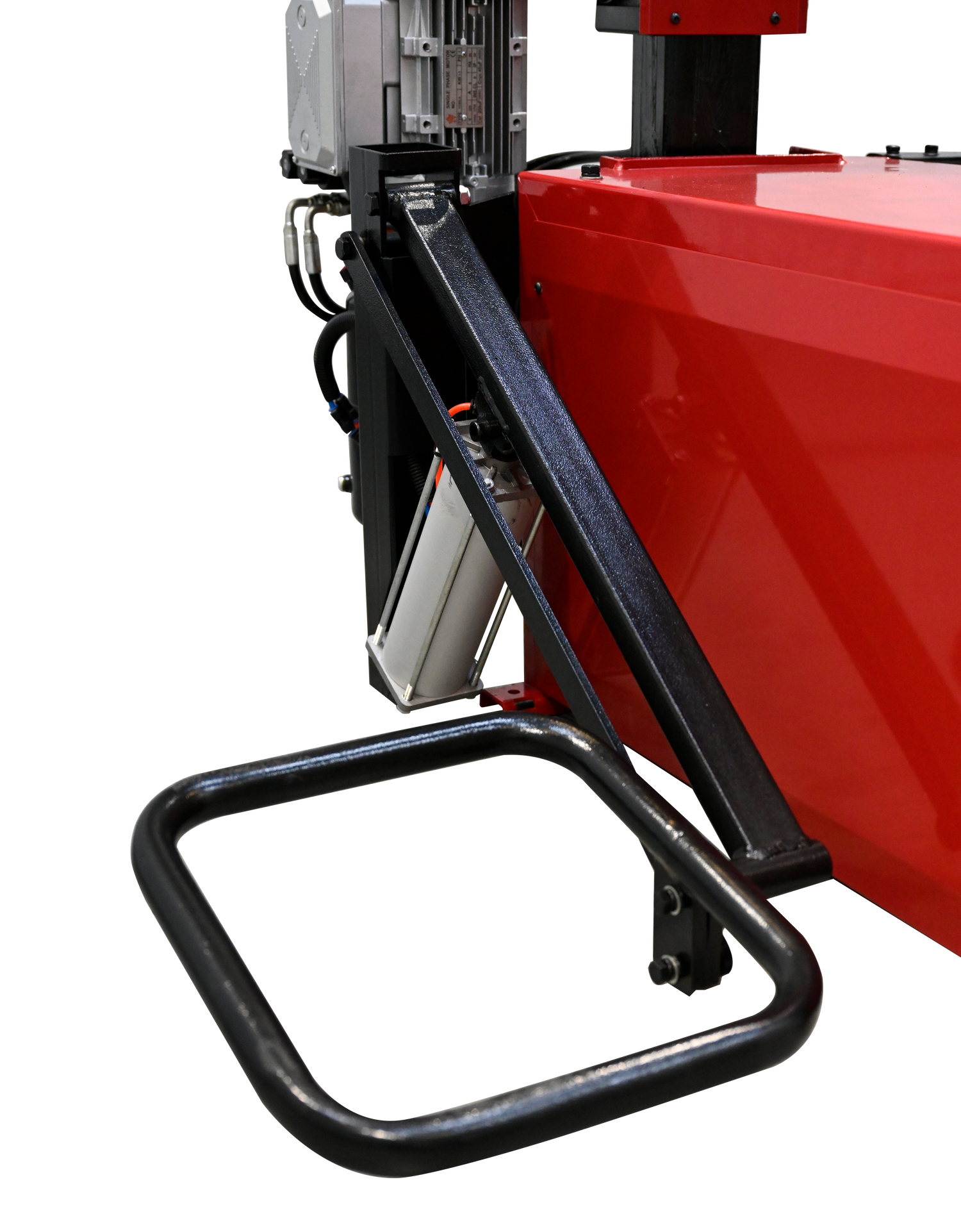

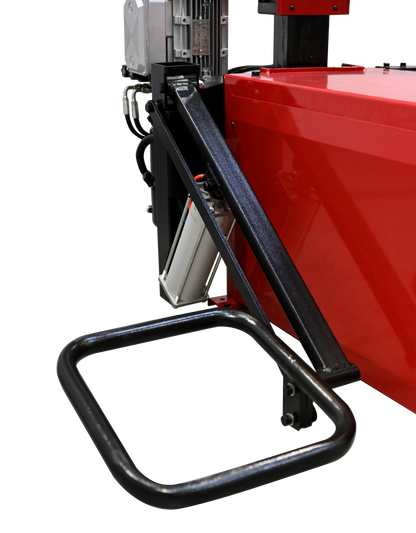

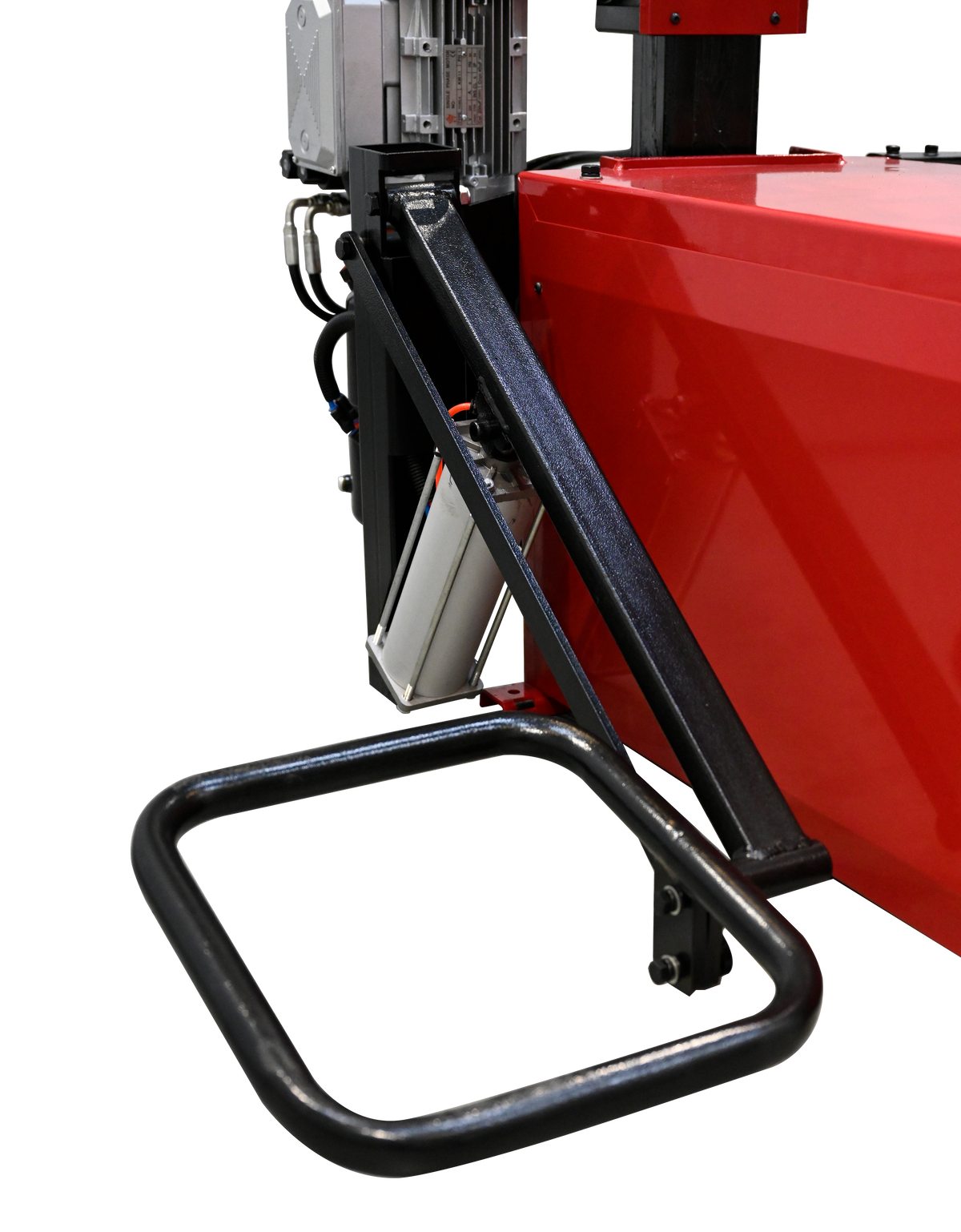

• Ergonomic tire lifting system is simple, stable, and designed for high working throughput
• Hook head works with the hydraulic system to maintain steady contact without touching the rim surface
• Hand-controlled bead breaking gives the operator direct feel during demount

• Model: FTC-T2
• Applicable rim size: 10 inches – 28 inches
• Maximum tire diameter: 1,200mm (47 in)
• Maximum tire width: 76mm – 406mm (3 in – 16 in)
• Bead breaker force at 10 bar: 3,000kg (6,614 lbs)
• Operating air pressure: 8 bar – 10 bar (116 – 145 psi)
• Maximum charge (inflation) pressure: 3.5 bar (50 psi)
• Motor power: 1.5 kW
• Drive system: Full hydraulic — superior stability vs. pneumatic
• Column structure: Integrated center post — hook head and pressing wheel synchronized
• Operation plane: Single-plane — handles complex and hard-to-remove tire profiles
• Control system: Advanced electronic — auto-stop and auto-restart
• Bead breaking: Hand-controlled for operator precision
• Tire lifting: Integrated ergonomic system — high working throughput
• Leverless operation: Yes — no crowbar required
• Compatible tires: All passenger, performance, run-flat, and specialty profiles
• National invention patent: Yes
• Power supply: 220V | 60Hz | Single phase
• Noise level: Less than 70dB (A)
• Net weight: 366kg (807 lbs)
• Dimensions: 1,470 × 1,050 × 1,730mm (L × W × H)

Work Smarter. Protect What You've Built.

The FTC-T2 is for the enthusiast who respects the equipment on their car as much as the car itself. When the tires or rims are expensive, the machine you use to mount them needs to match that standard.
