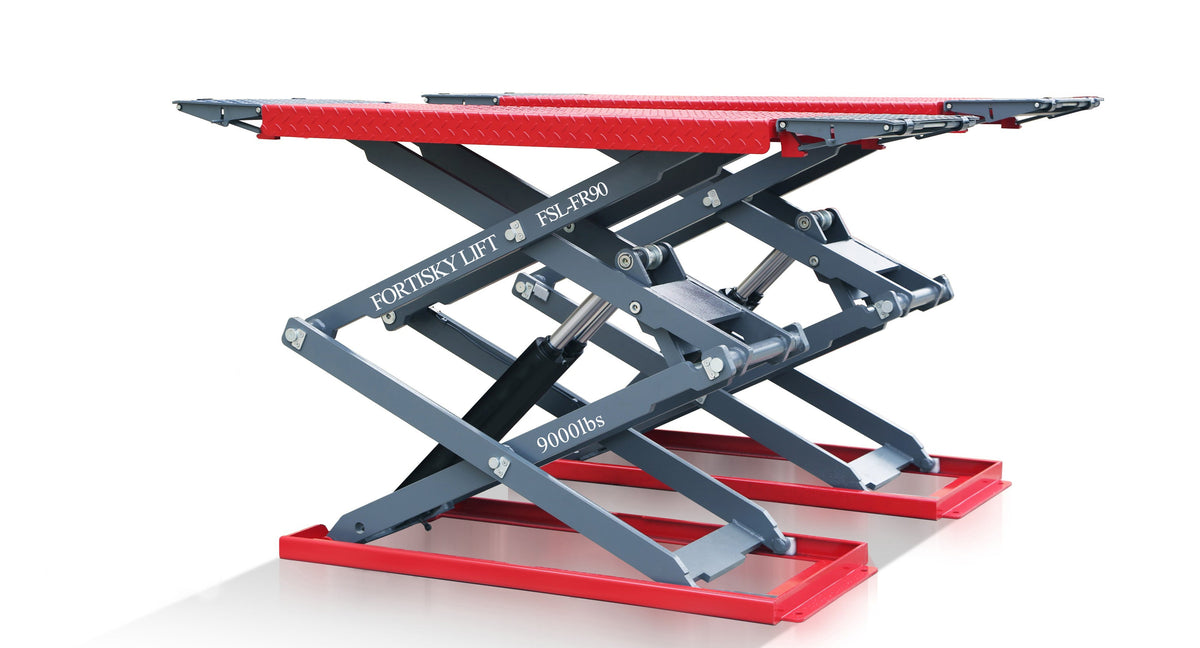

The FSL-FR90 is a full-rise scissor lift that lifts to 71 inches, so you can stand upright, walk under the vehicle, and work without contortion or compromise.

It has 9,000 pounds of rated capacity with a four-cylinder design, Q355B high-strength manganese plate arms, and an electric lock release system. For the enthusiast who has graduated from the mid-rise. SKU: FSL-FR90

• Four-cylinder hydraulic system gives steady, even lifting with no noise when the platform lowers to the ground

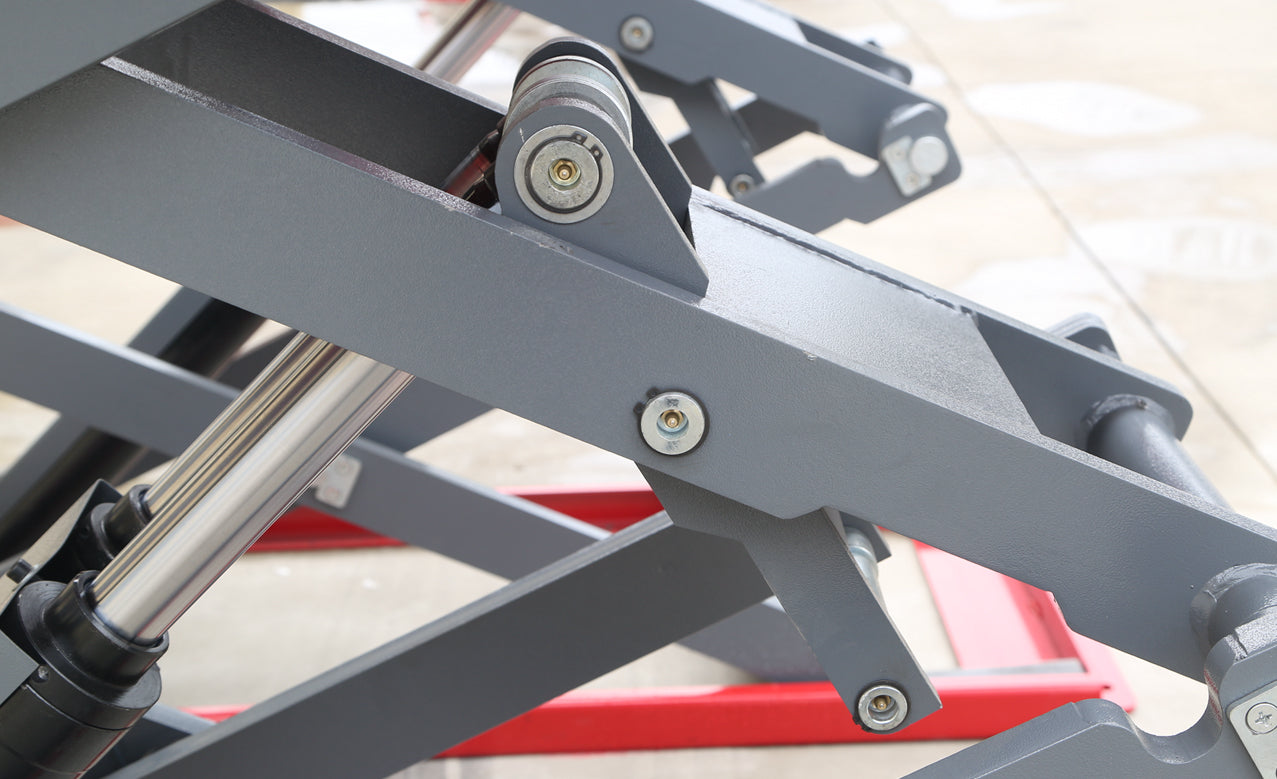

• Arms fabricated from high-strength Q355B manganese plate steel

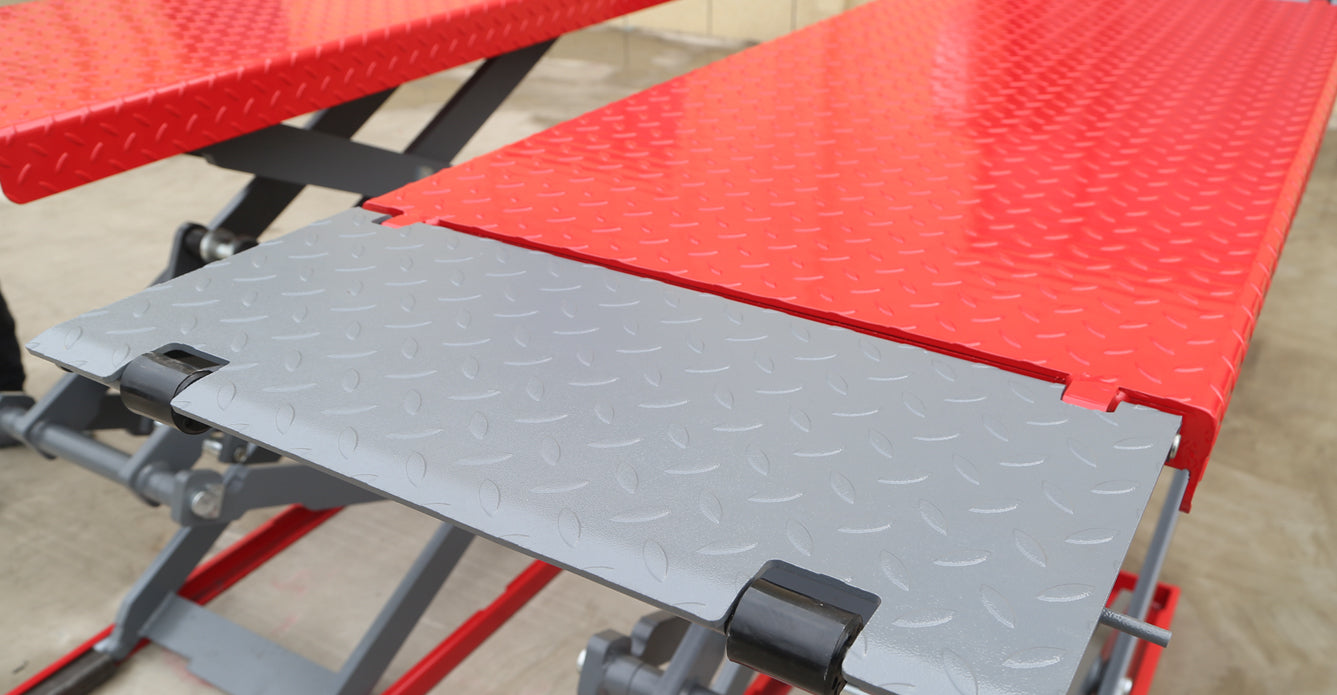

• Checkered plate upper cover for anti-slip performance and a clean finished appearance

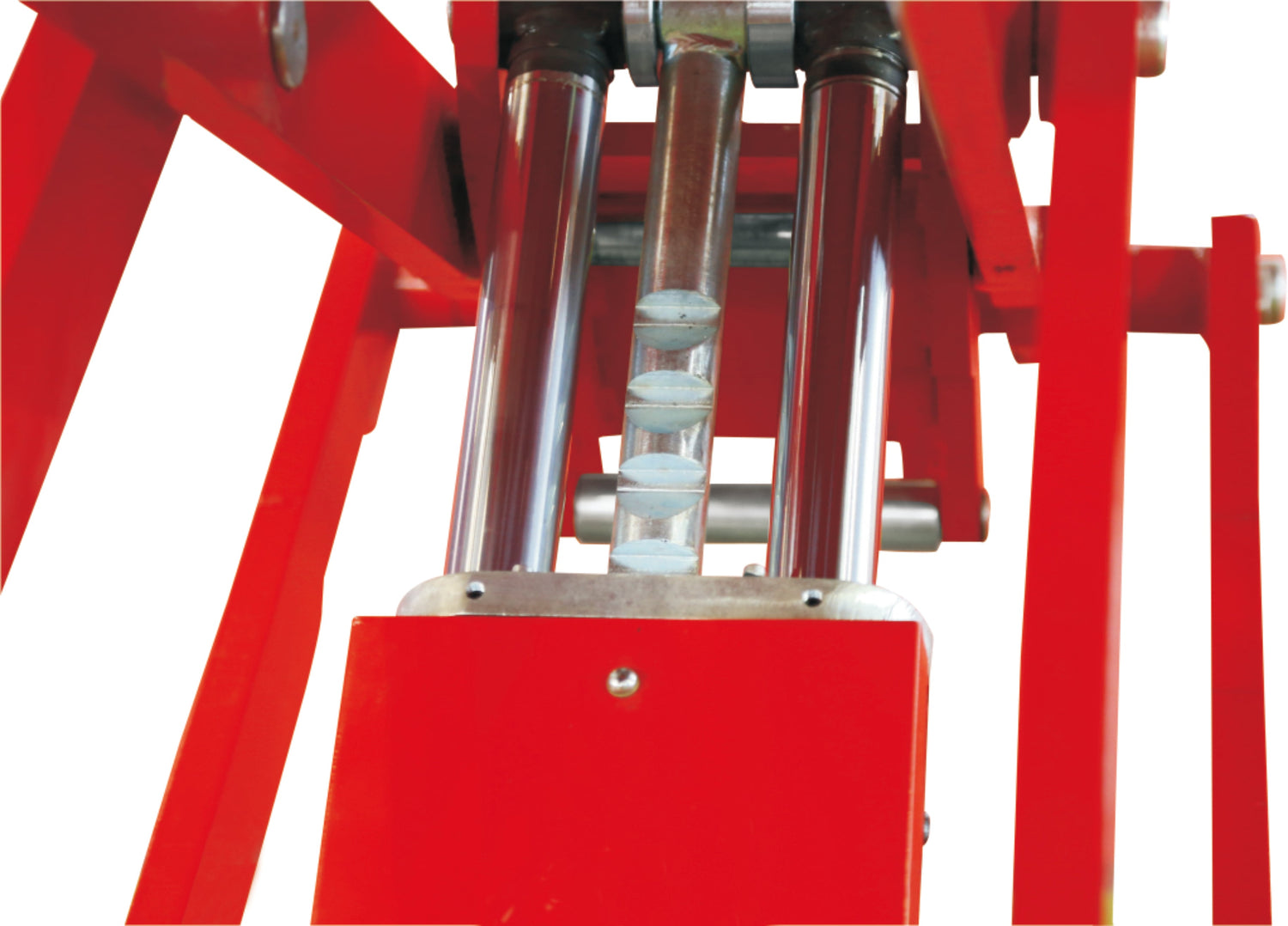

• Electric lock release safety system holds the lift locked at any raised position with zero drift
• Drive-on ramps lock into position as platform extensions for longer wheelbase fitment
• Anti-surge valves on all cylinders prevent sudden movement during raising and lowering
• 24V safe control system keeps all electrical control voltage at a safe level

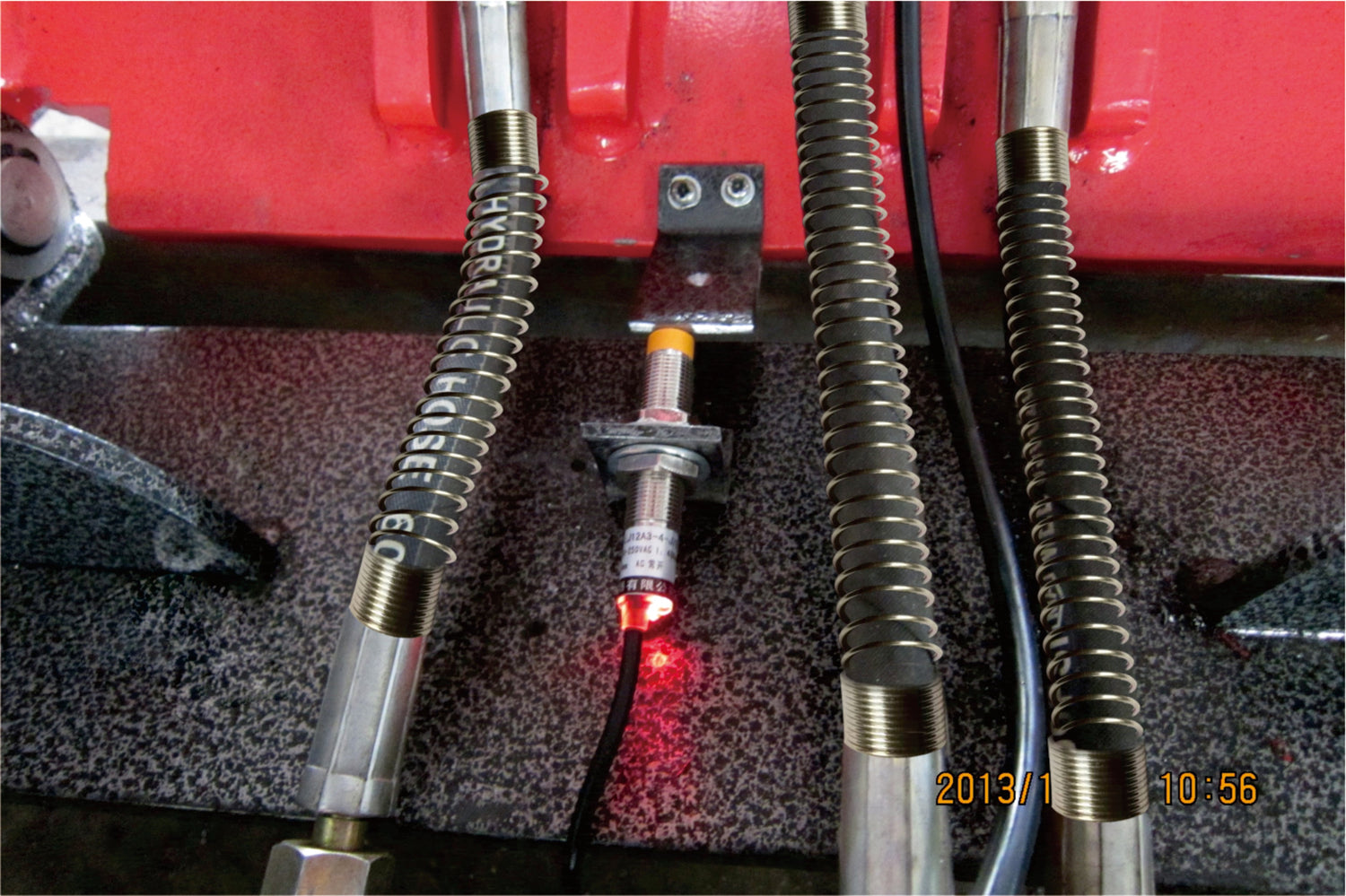

• Height limit switch prevents over-extension at full travel
• Powder-coated finish resists shop environment wear and corrosion

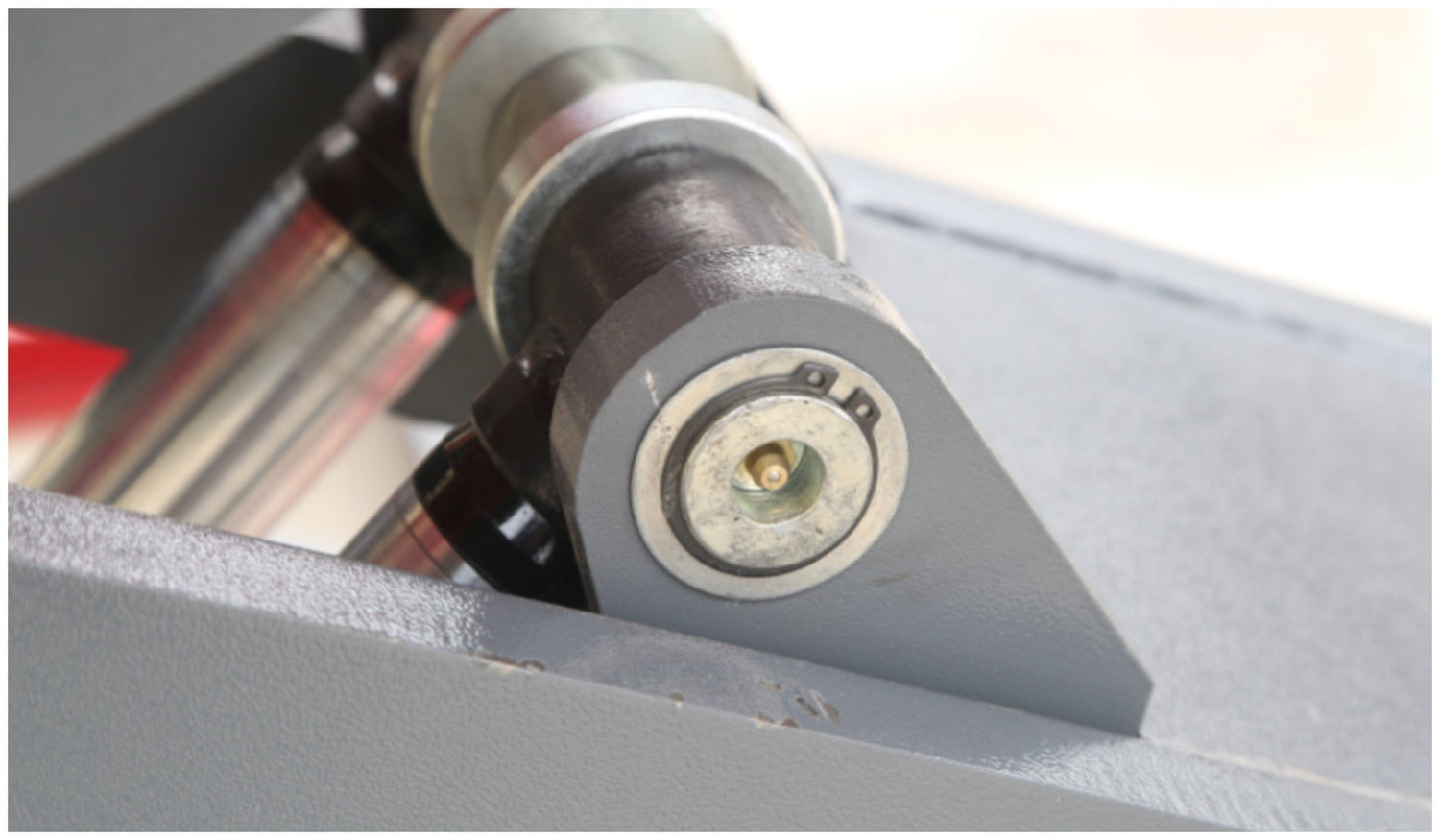

• Self-lubricated bushings and bearings minimize maintenance

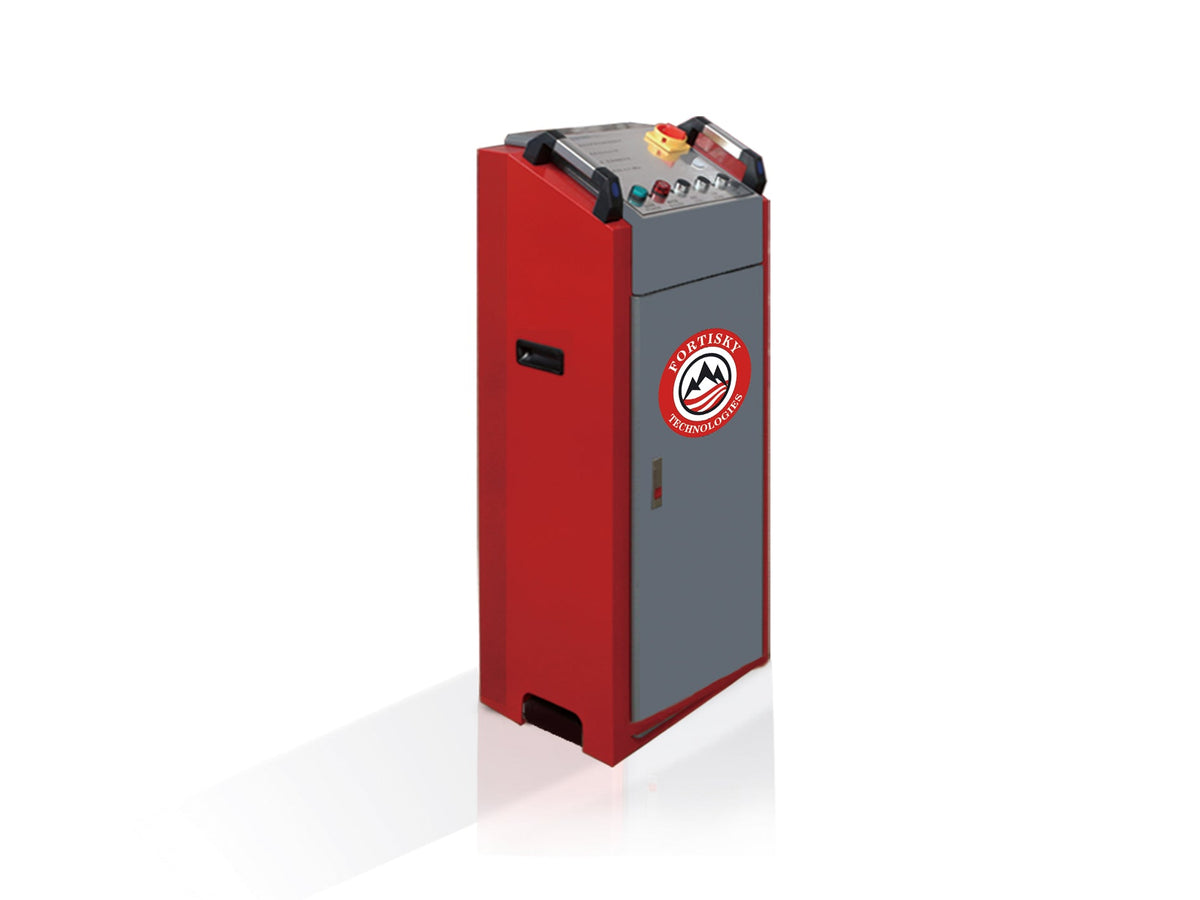

• Front and rear door control boxes allow operation from either end of the lift
• Indoor installation only

• Model: FSL-FR90
• Maximum lifting capacity: 9,000 lbs (4,082 kg)
• Maximum lifting height: 71 inches (1,803mm)
• Minimum platform height: 4.3 inches (109mm)
• Platform length: 57.09 inches (1,450mm)
• Platform width: 25.59 inches (650mm)
• Overall platform width: 81.5 inches (2,070mm)
• Overall length: 82.68 inches (2,100mm)
• Overall weight: 1,874 lbs (850 kg)
• Rising time: 50 seconds or less
• Power supply: 220V | 60Hz | Single phase
• Control voltage: 24V safe control system
• Cylinder design: Four-cylinder hydraulic
• Arm material: Q355B high-strength manganese plate steel
• Upper cover: Checkered plate — anti-slip surface finish
• Rated oil pressure: 22 MPa

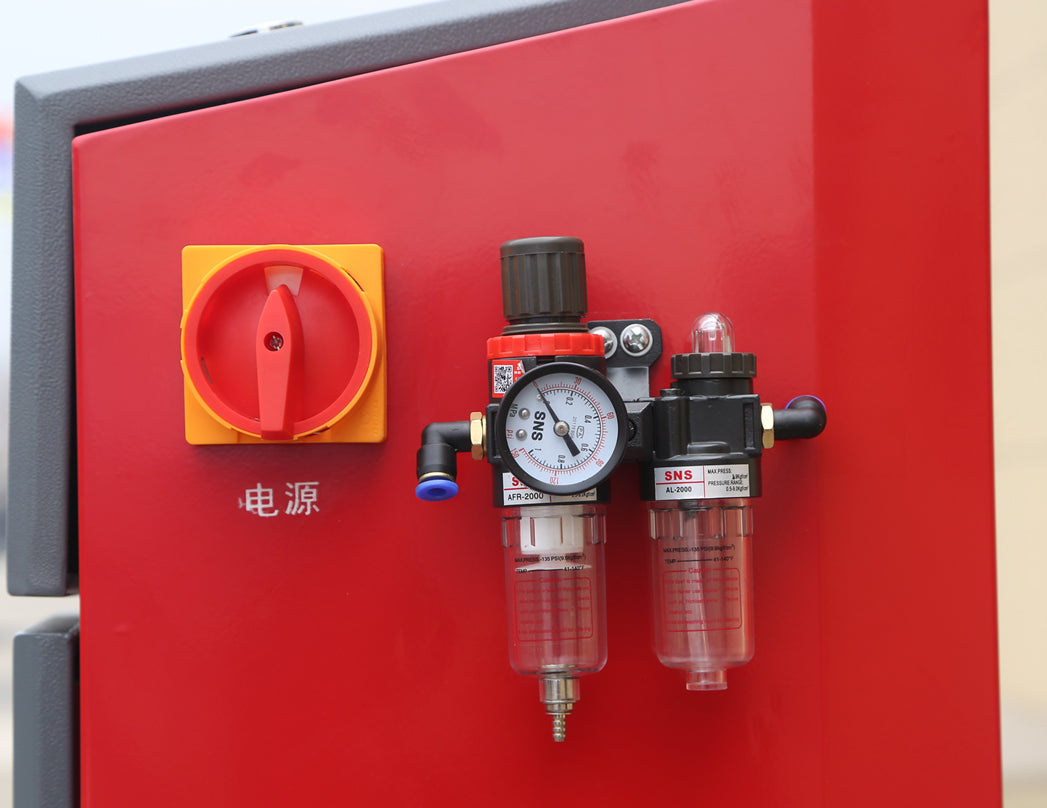

• Air pressure range: 0.6 – 0.8 MPa
• Safety system: Electric lock release — holds at any raised position with zero drift
• Anti-surge valves: Yes — on all cylinders, prevents sudden movement
• Height limit switch: Yes — prevents over-extension at full travel
• Control boxes: Front and rear — operable from either end of the lift
• Finish: Powder-coated — corrosion-resistant
• Bushings and bearings: Self-lubricated — reduced maintenance
• Drive-on ramps: Included
• Manual override: Yes — hydraulic lowering available during power outage
• Installation: Indoors only
• Noise level: 70dB or less
• Descending time: 60 seconds or less

Stand Up. Work It Through.

The FSL-FR90 is for the builder who's done compromising on access. When you can stand underneath your car, you can see everything, reach everything, and do the job right the first time.
