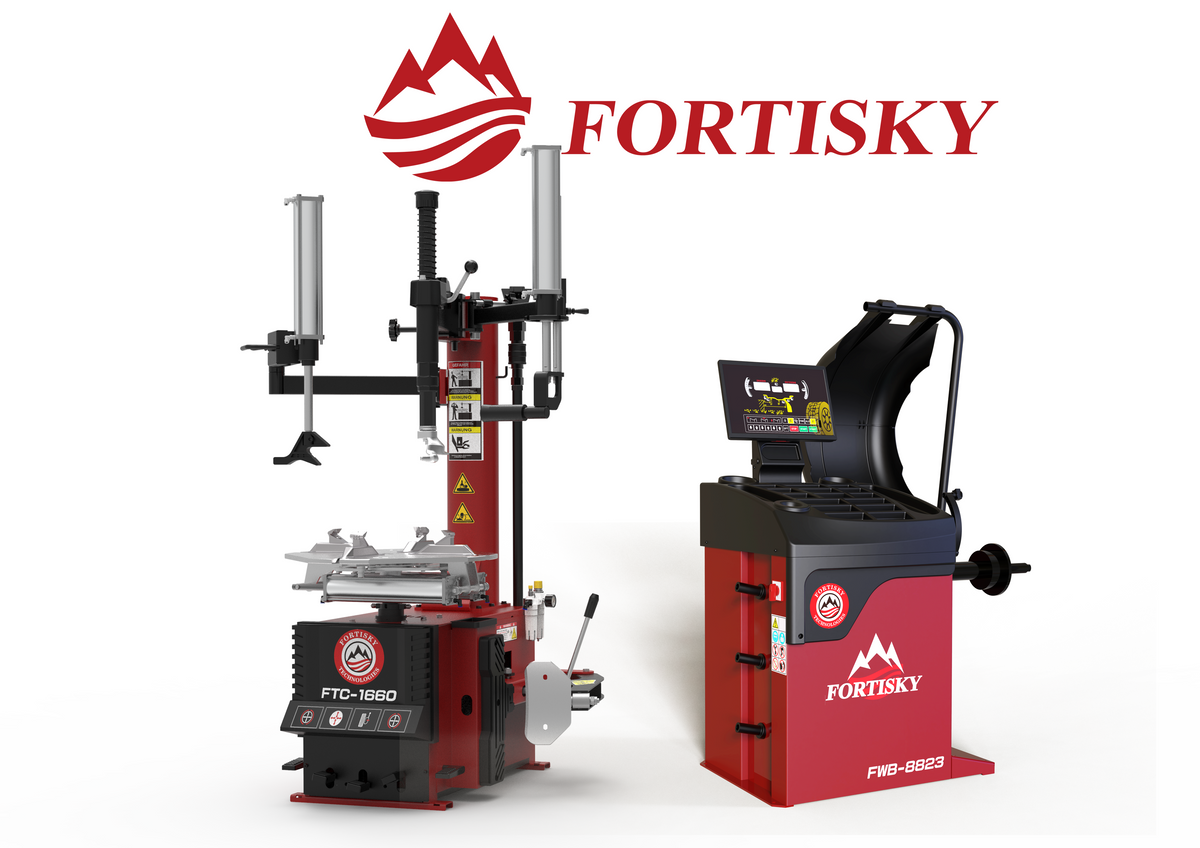

Mounting is the easy half. Balancing is where the job goes sideways: punching rim numbers in by hand, sticking a weight where you think it goes, then feeling the steering wheel shake at 70 and doing it all over again. The FWB-8823 takes the guessing out. It measures the rim itself and puts a laser right on the spot for the weight. Pair it with the FTC-1660 dual assist arm changer and the whole job is covered.

Built for the guy who's done chasing vibrations, whether that's at home or in a small shop that's tired of sending tire work out. Both machines run on regular 110V power, and the pair is $843 less than buying both machines separately on our site. SKU: 1660-8823

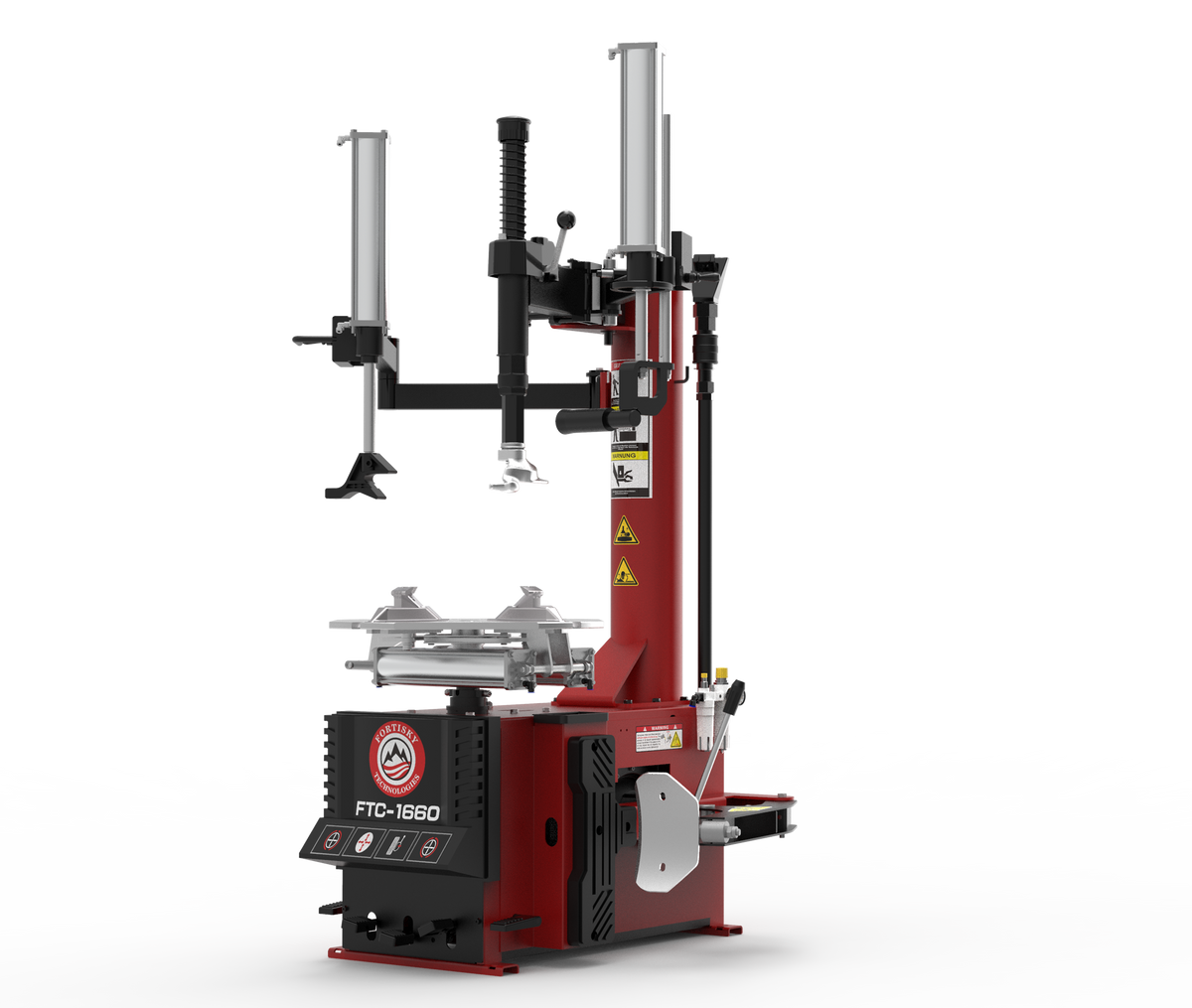

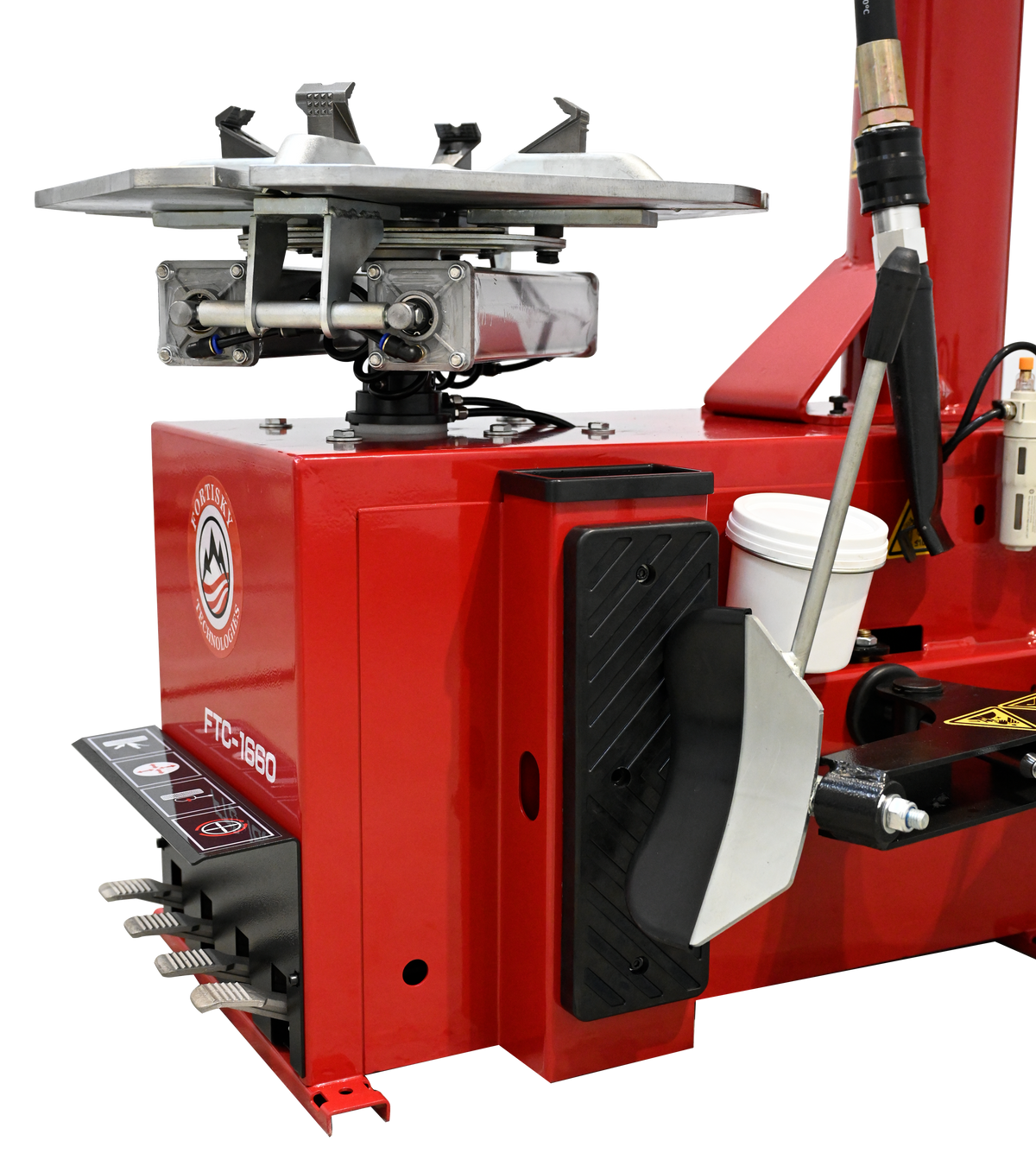

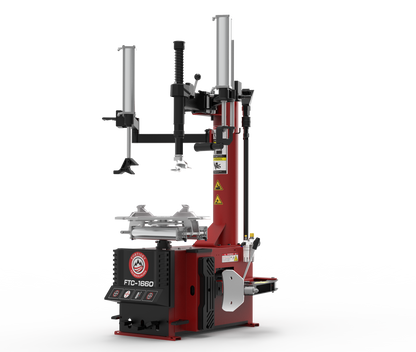

FTC-1660 Tire Changer

• 186-steel cylinder on the bead breaker blade for power and long-term durability
• Working head is high-frequency quenched and hard chrome plated for strength, toughness, and wear resistance

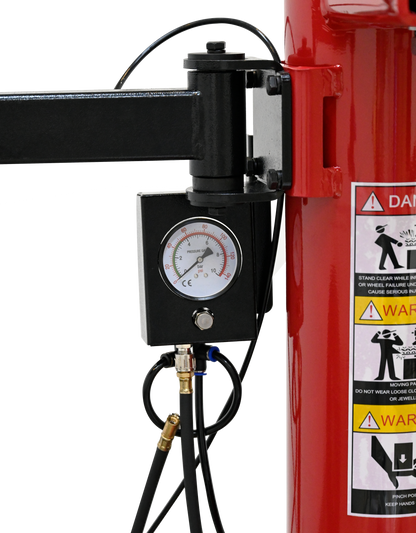

• Direct-connect turbo blast pipe delivers more inflating power to the bead seating area
• One-piece machined chuck base gives high rigidity and prevents deformation over time

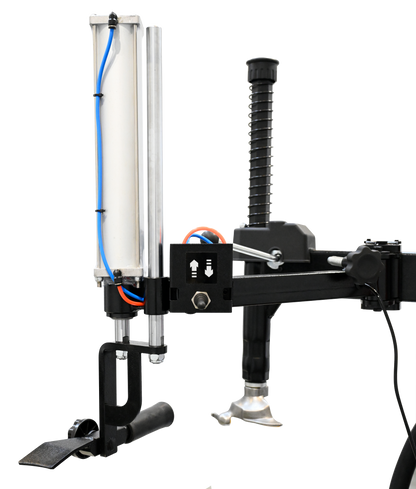

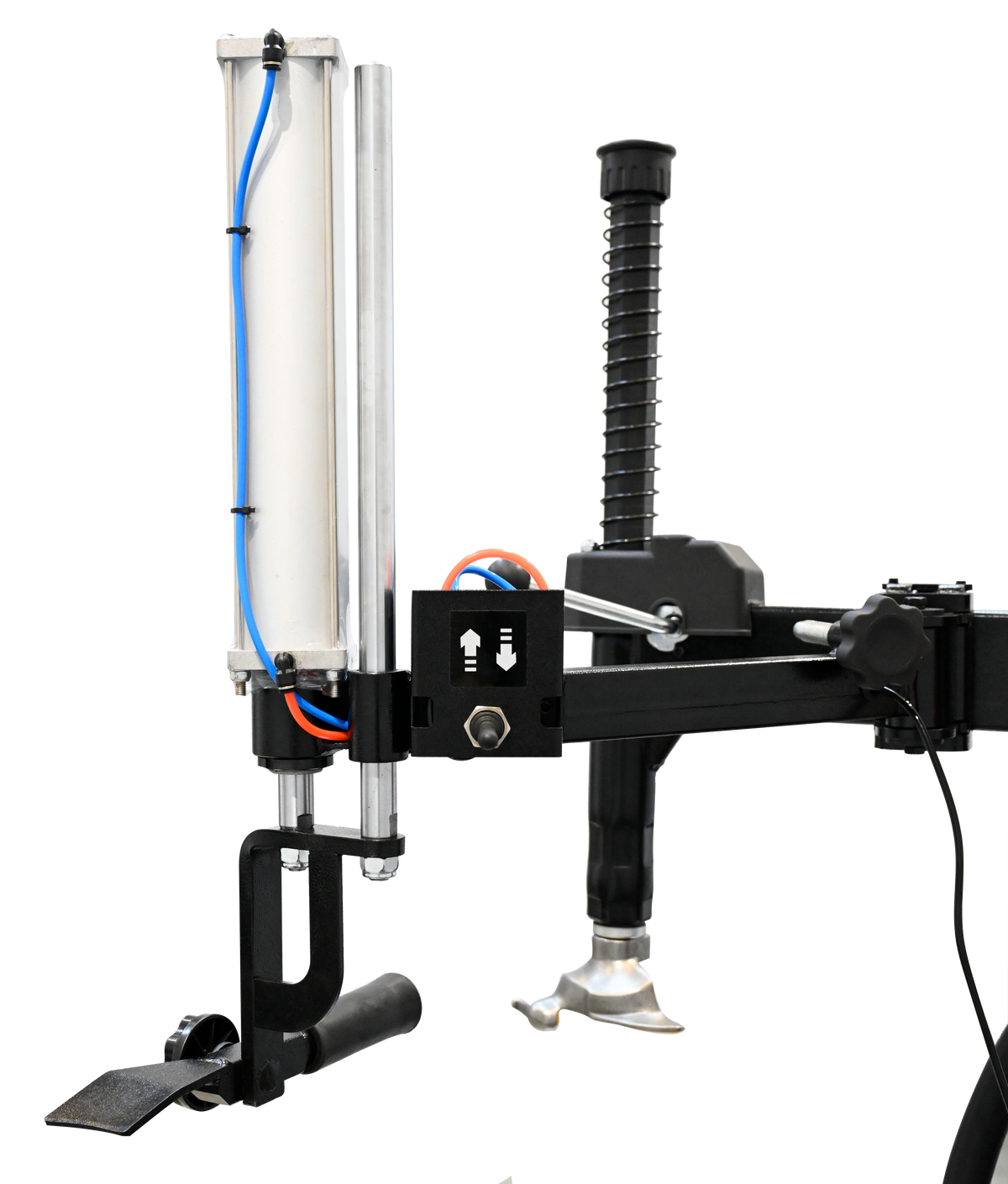

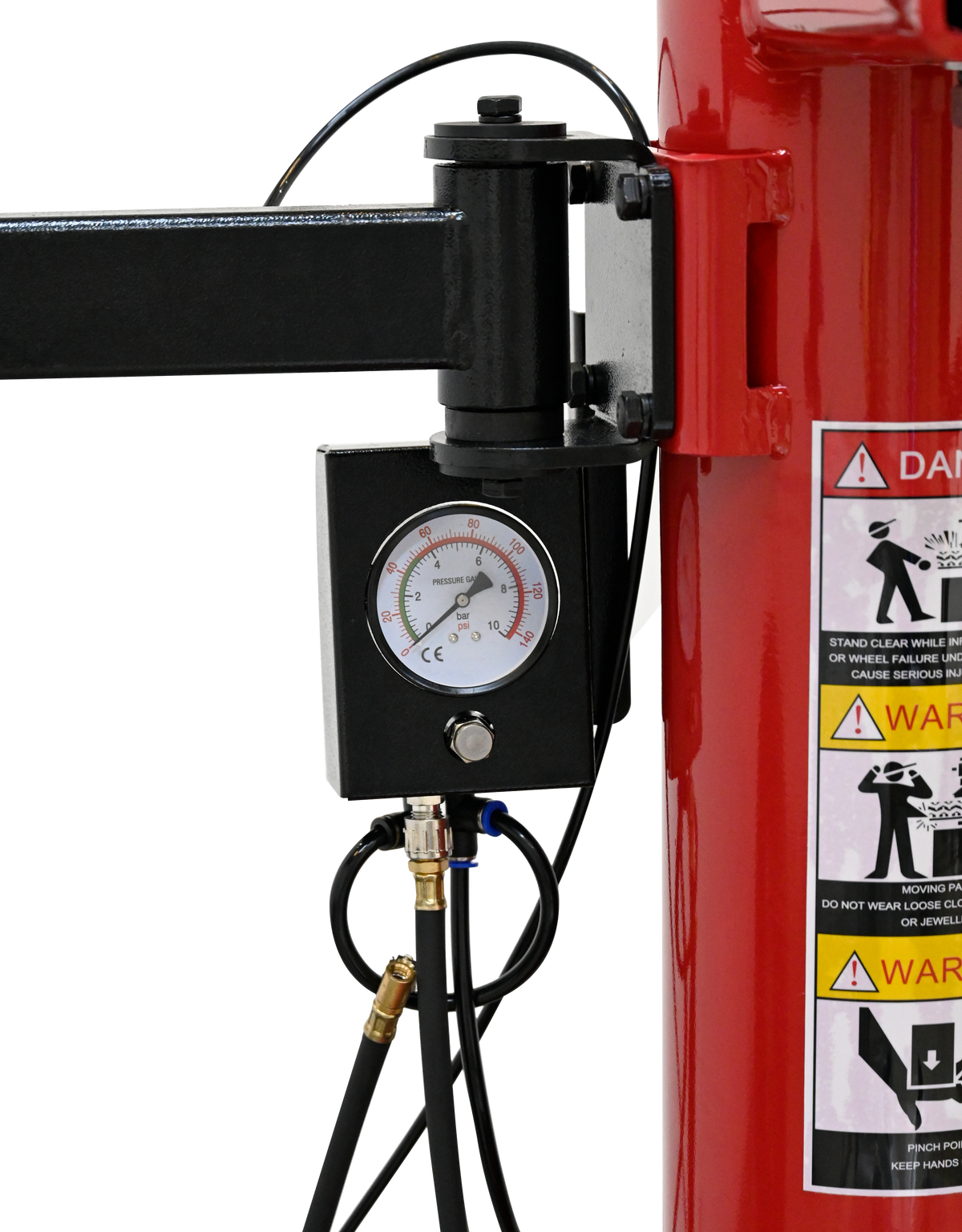

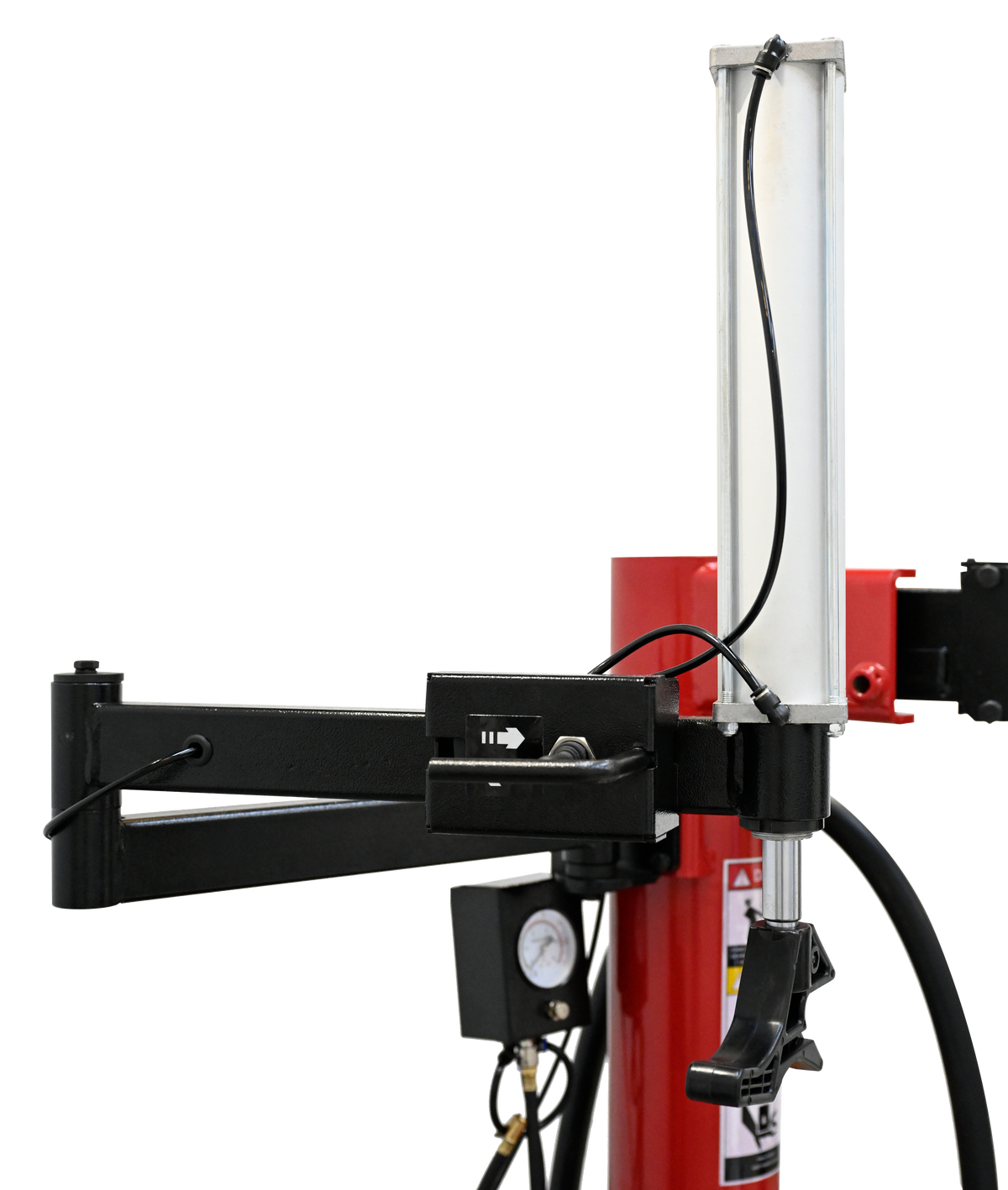

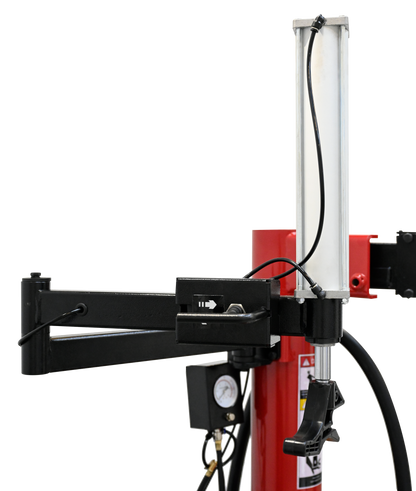

• Dual swing arm connects to the column and can both push and pull the tire
• Swing arm is fixed to the rod rather than the cylinder, eliminating the risk of cylinder explosion

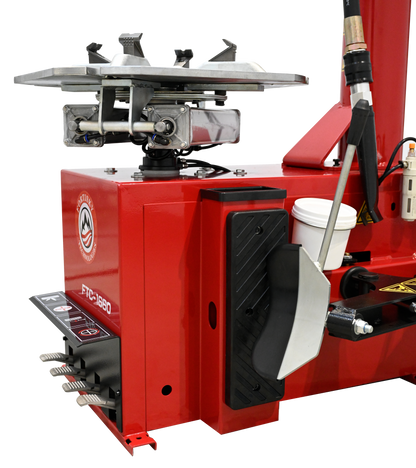

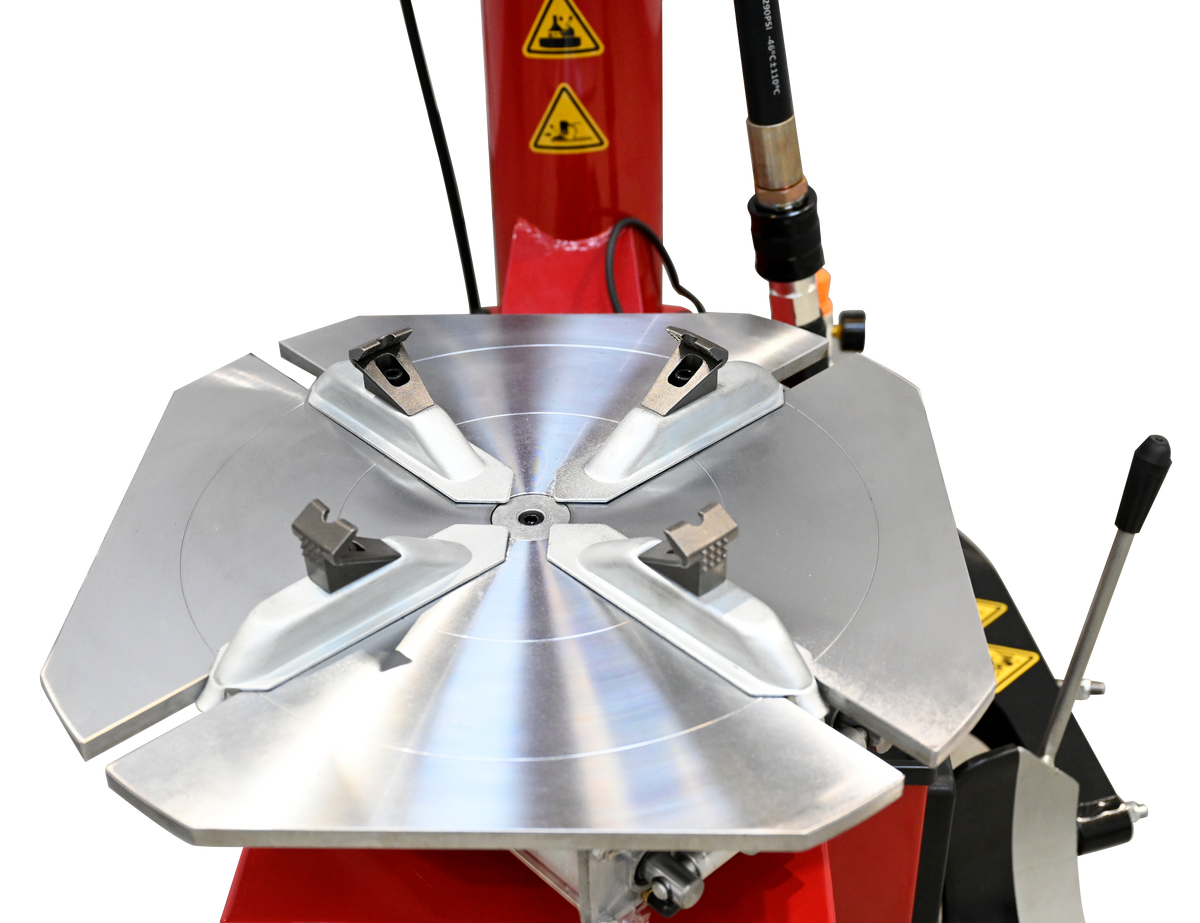

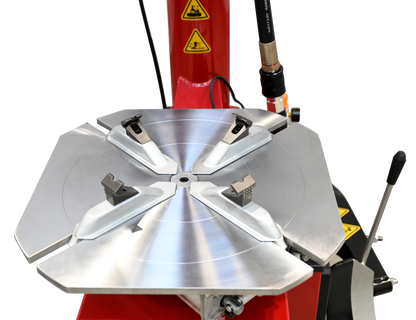

• Four-jaw auto-centering turntable with synchronized linkage centers from the outside in
• Working head design handles run-flat tires without scratching the wheel
• High-power motor with reduced noise output
• Embedded plastic covers on bead breaker, claws, and working head protect the rim and prevent slipping

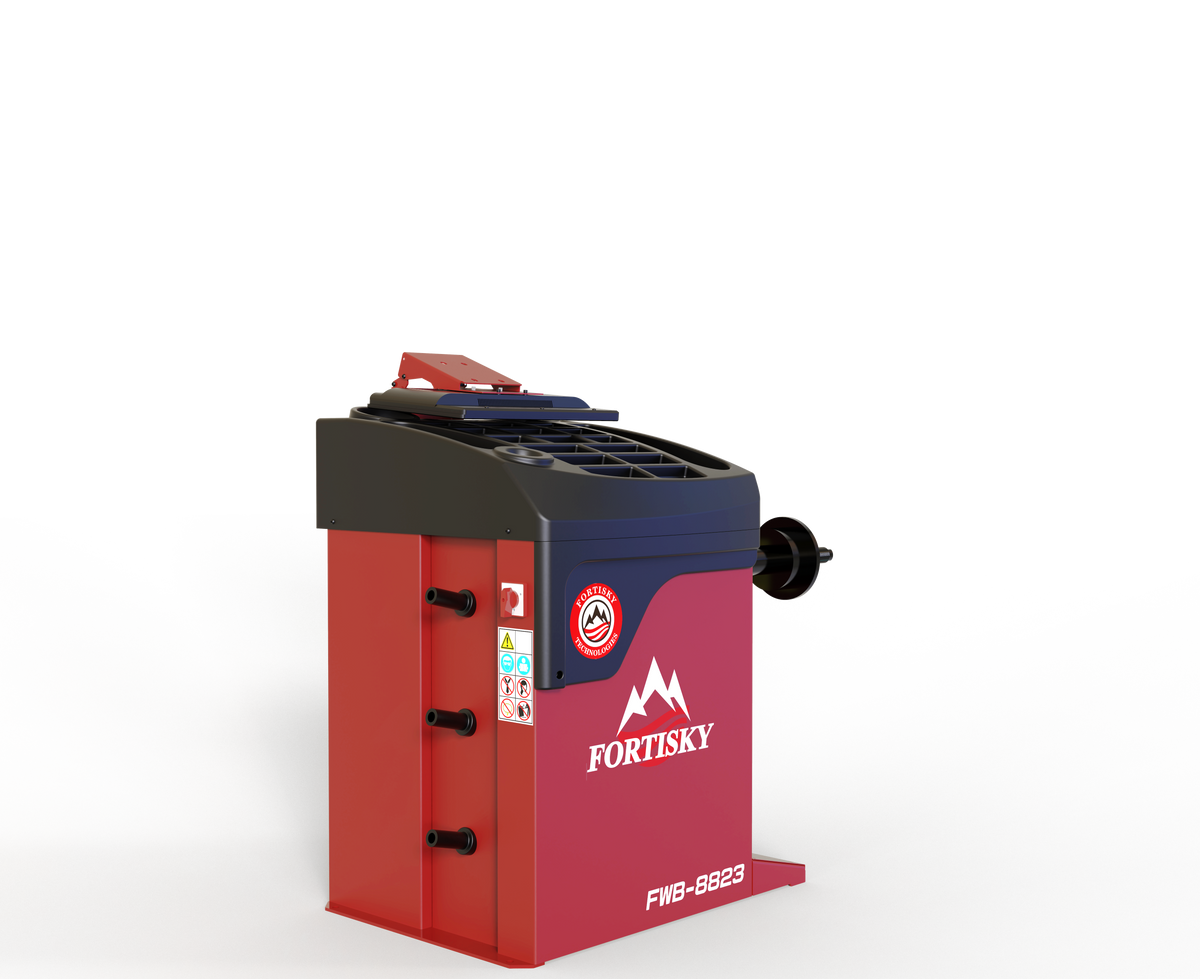

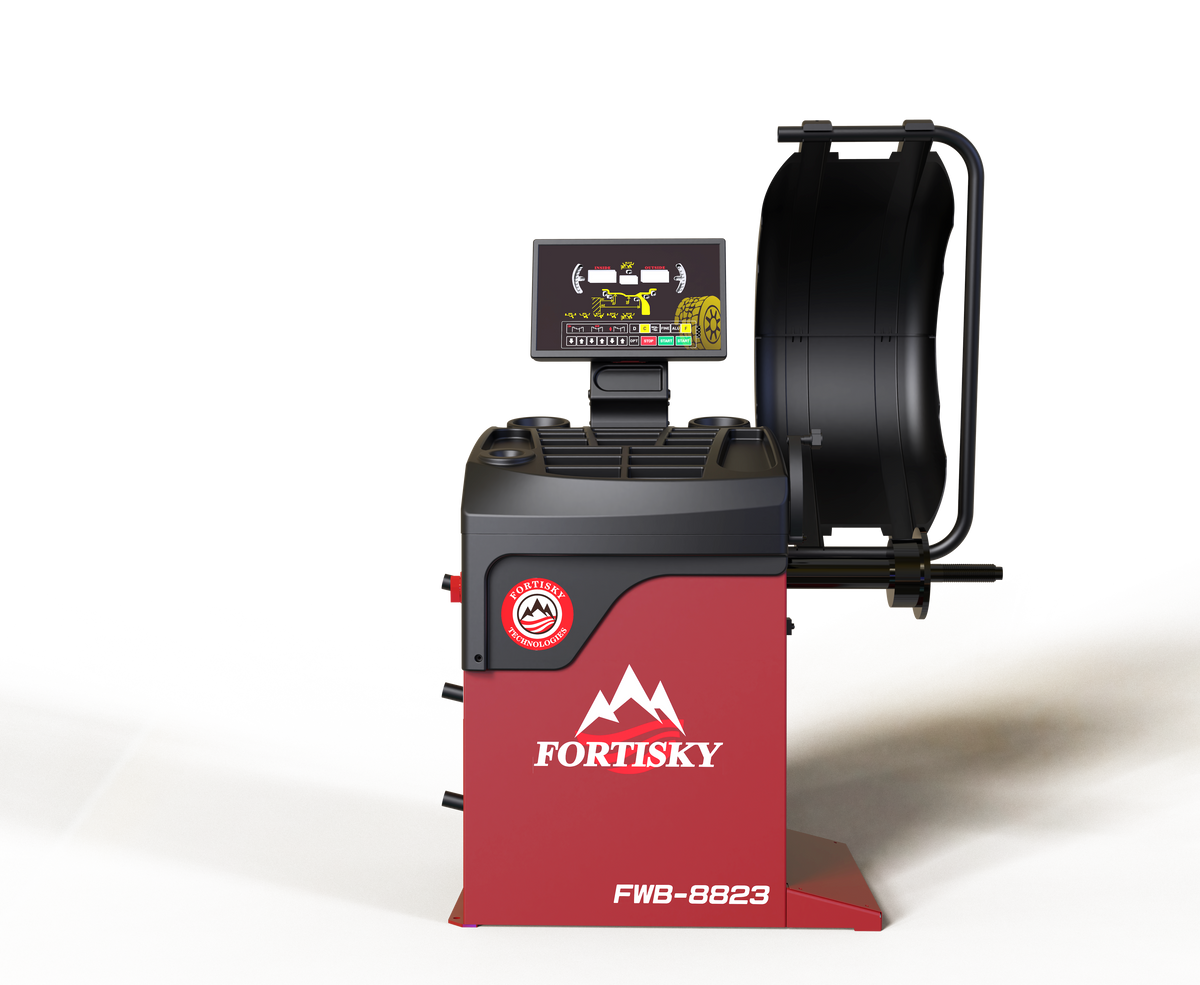

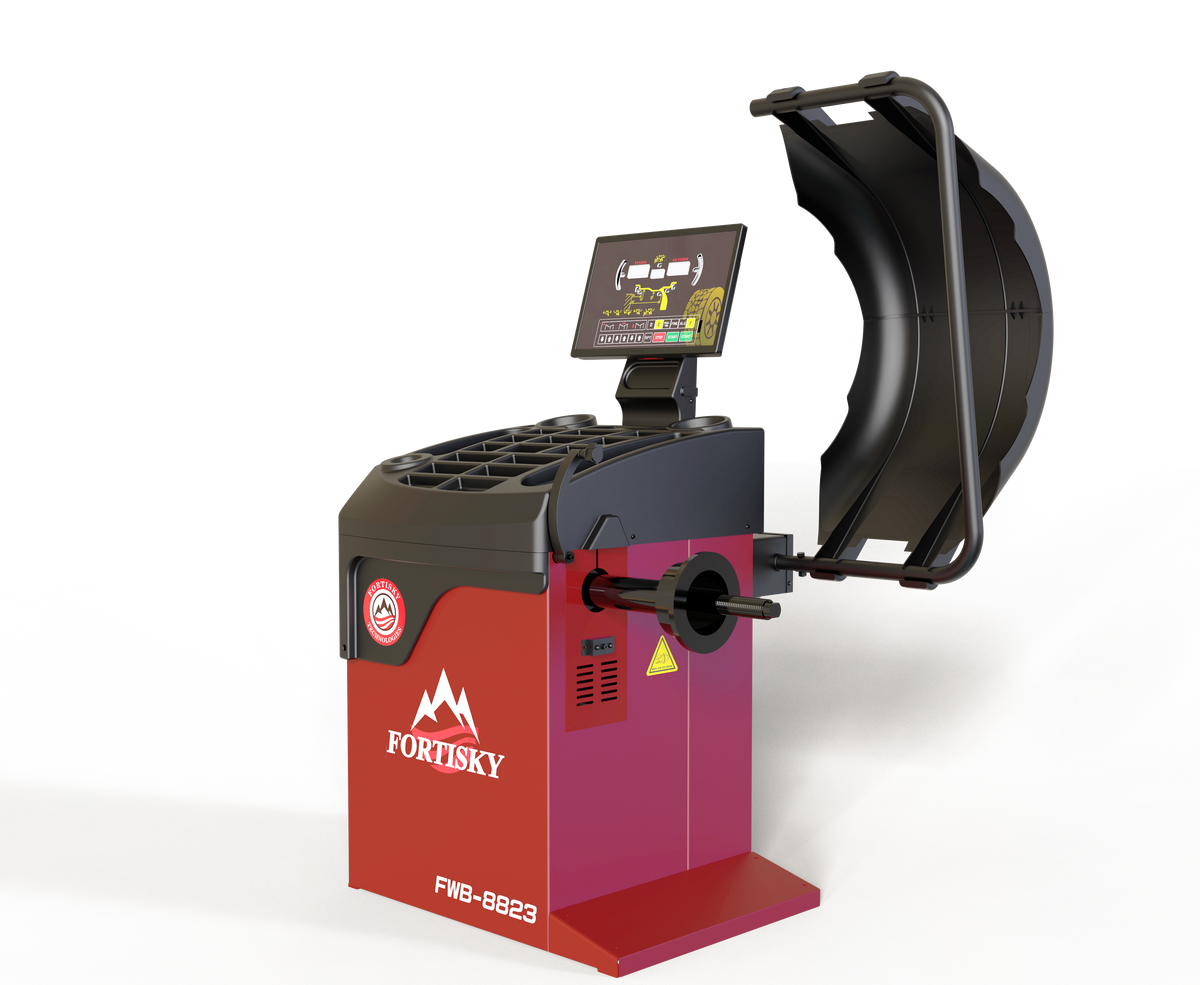

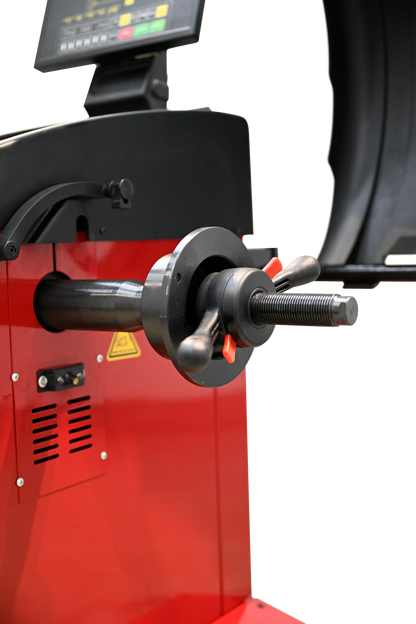

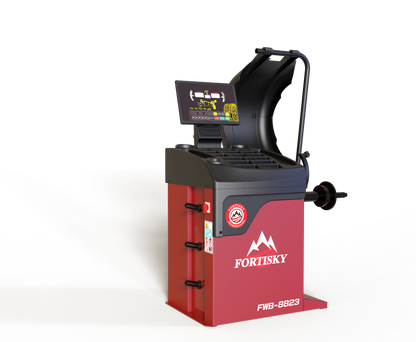

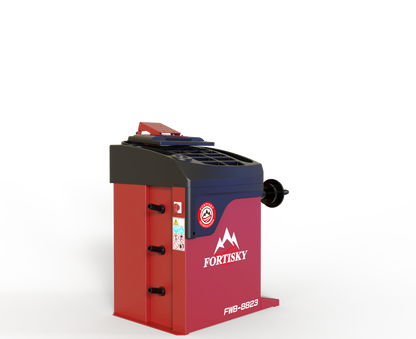

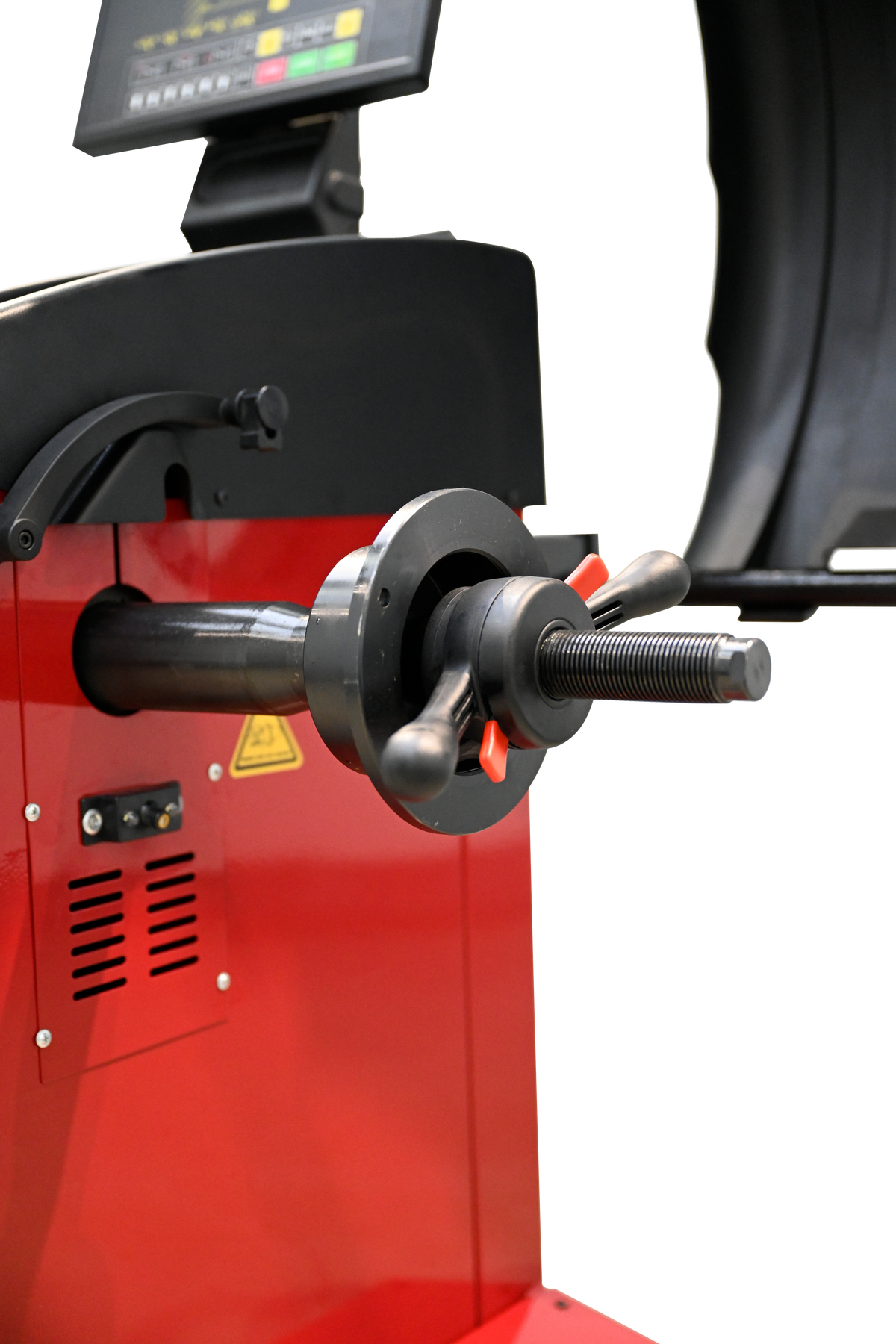

FWB-8823 Wheel Balancer

• 2D fully automatic data entry: gathers rim measurements via a linear grating measurement scale
• No entering diameter or distance by hand: drop the guard, press start, and it spins
• Smart balance-point positioning rotates the wheel to the correct position with a single key press
• Built-in visual laser puts a light exactly on the weight placement spot
• Built-in LED fill light for reading the wheel in low-light conditions
• Multiple balance modes for standard steel rims through complex alloy profiles
• Self-calibration keeps readings accurate over time

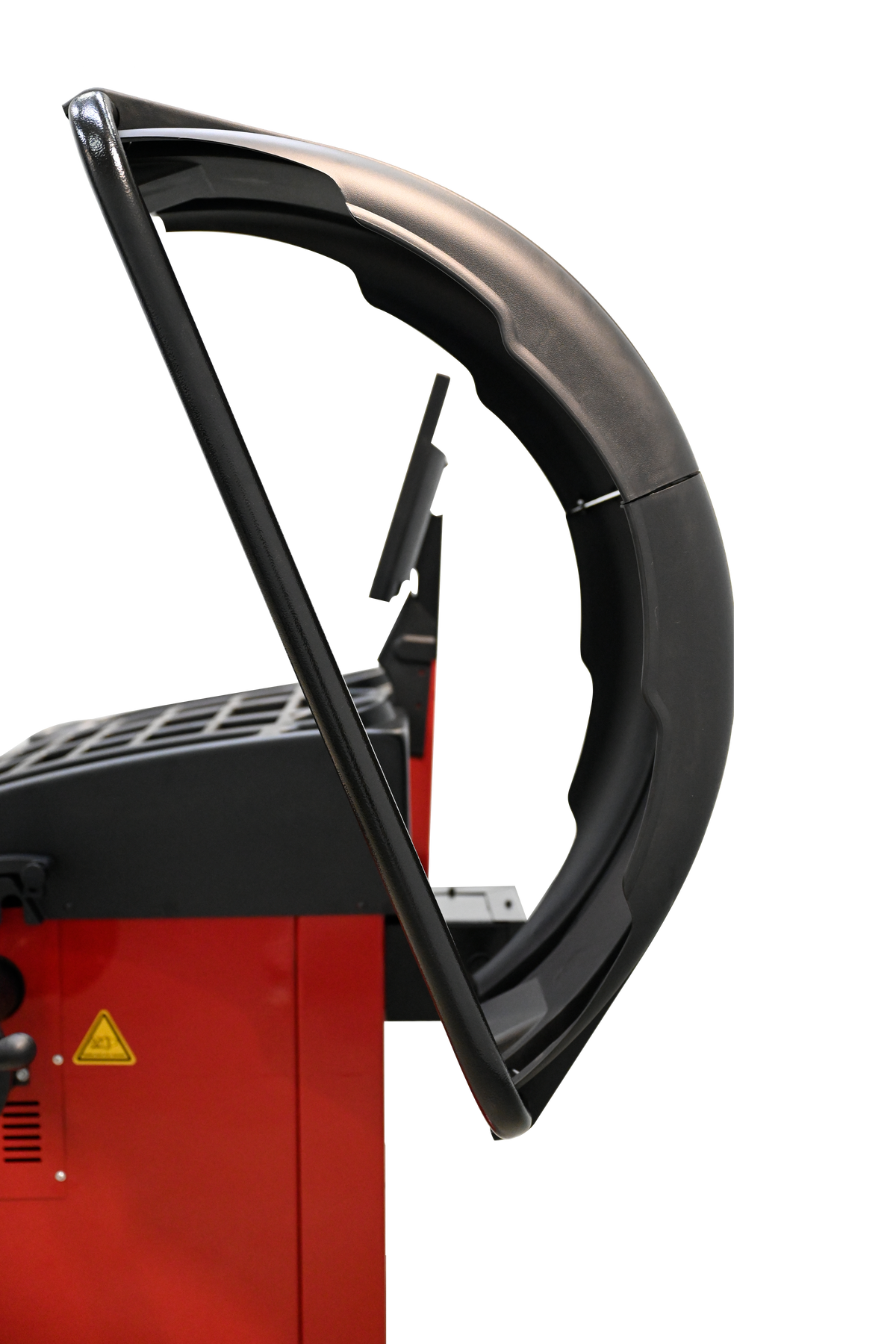

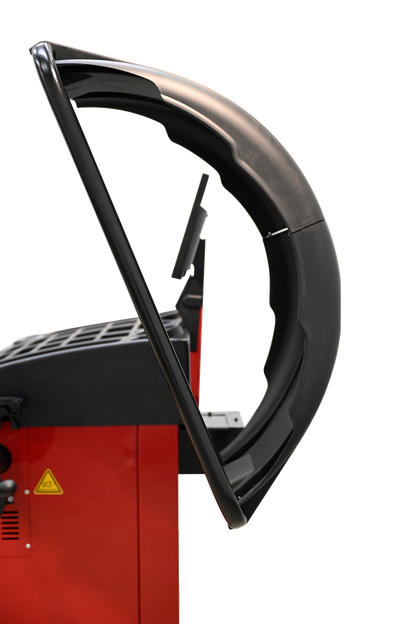

• Ships complete with the wheel guard

FTC-1660 Tire Changer

• Model: FTC-1660
• Applicable rim size — outer: 10 inches – 22 inches
• Applicable rim size — inner: 12 inches – 24 inches
• Maximum tire diameter: 1,040mm (41 in)
• Maximum tire width: 380mm (15 in)
• Pressing force at 10 bar: 2,500kg (5,511 lbs)

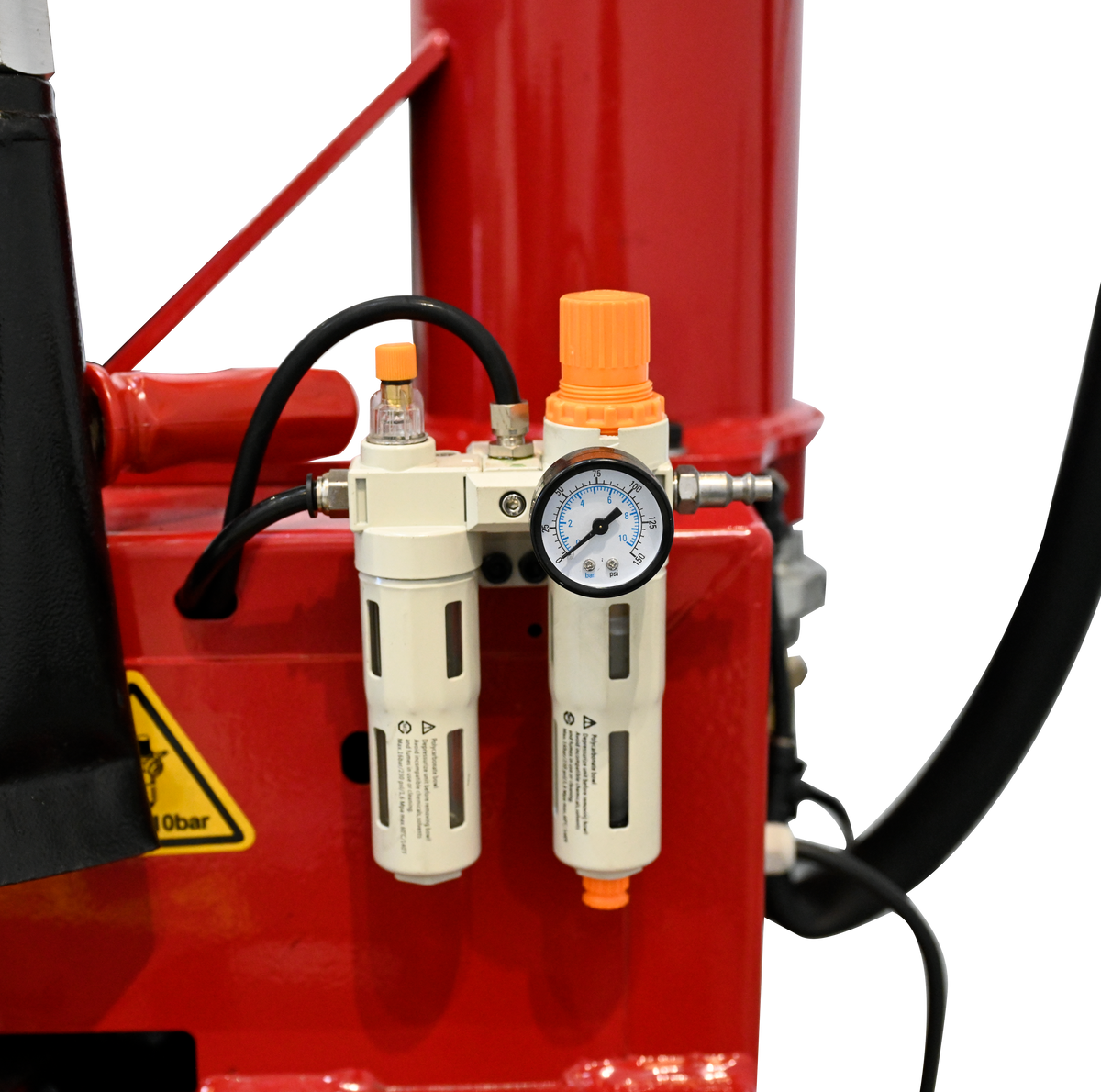

• Operating air pressure: 8 bar – 10 bar (116 – 145 psi)
• Maximum charge (inflation) pressure: 3.5 bar (50 psi)
• Motor power: 1.1 kW / 0.75 kW / 1.5 kW
• Bead breaker cylinder: 186-steel construction
• Working head: High-frequency quenched, hard chrome plated
• Turbo blast: Direct-connect pipe design for maximum inflation power
• Chuck base: One-piece machined — high rigidity, deformation resistant
• Turntable: Four-jaw synchronized linkage — auto-centering from outside in
• Swing arm: Dual assist — push and pull capable, rod-fixed for cylinder safety
• Rim protection: Embedded plastic covers on bead breaker, claws, and working head
• Run-flat compatible: Yes
• Power supply: 110V single phase / 220V 3-phase
• Noise level: Less than 70dB (A)
• Net weight: 220kg (485 lbs)
• Dimensions: 1,120 × 750 × 860mm (L × W × H)

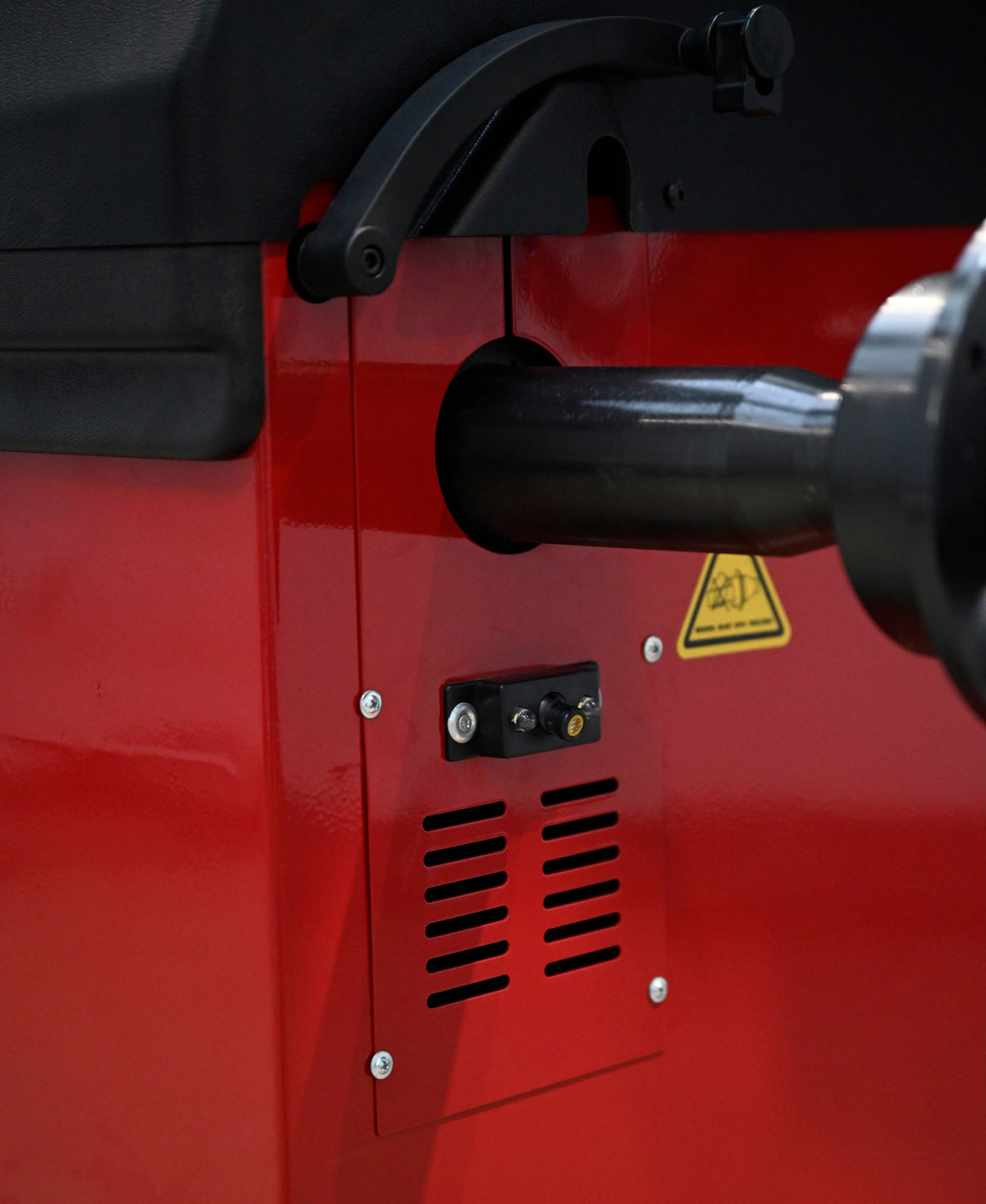

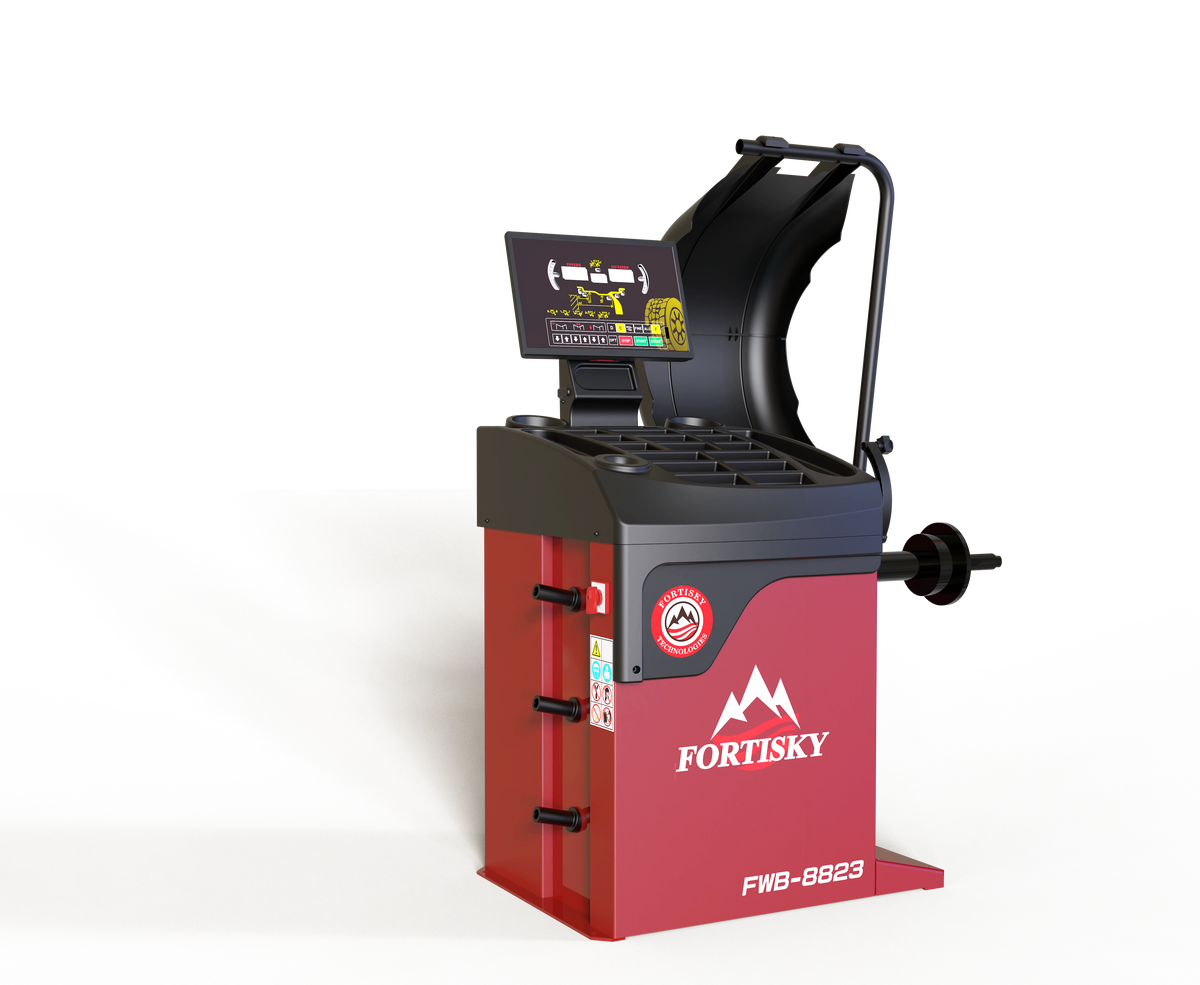

FWB-8823 Wheel Balancer

• Model: FWB-8823
• Applicable rim size: up to 30 inches
• Wheel width range: 1.5 inches – 15 inches
• Maximum tire weight: 75kg (165 lbs)
• Balance accuracy: ±1g
• Equilibrium speed: 200 RPM
• Equilibrium cycle time: 7 – 10 seconds
• Measurement system: Linear grating scale — auto-captures rim diameter and distance
• Data entry: 2D fully automatic
• Display: LED screen
• Laser guidance: Visual laser pinpoints exact weight placement location
• LED fill light: Built-in — improves visibility in low-light environments
• Balance point positioning: Smart auto-rotate and lock — one key press
• Electronic brake: Yes — holds wheel stationary during weight application
• Auto-start: Yes — activates when wheel guard is lowered
• Self-calibration: Yes
• Wheel guard: Included
• Motor power: 250W
• Power supply: 110V | 60Hz | Single phase
• Noise level: Less than 70dB (A)
• Net weight: 114kg (251 lbs)
• Working environment temperature: 0~50℃

Stick the Weight Once.

The 8823 measures rim diameter and distance for you, rotates the wheel to the weight position with one button, holds it with the brake, and shines a laser where the weight goes. No typing numbers, no eyeballing the spot. On the changer side, the FTC-1660's assist arm handles stiff sidewalls and run-flats while plastic covers keep metal off the rim. Questions before or after the sale? Call us at 862-356-6869.
