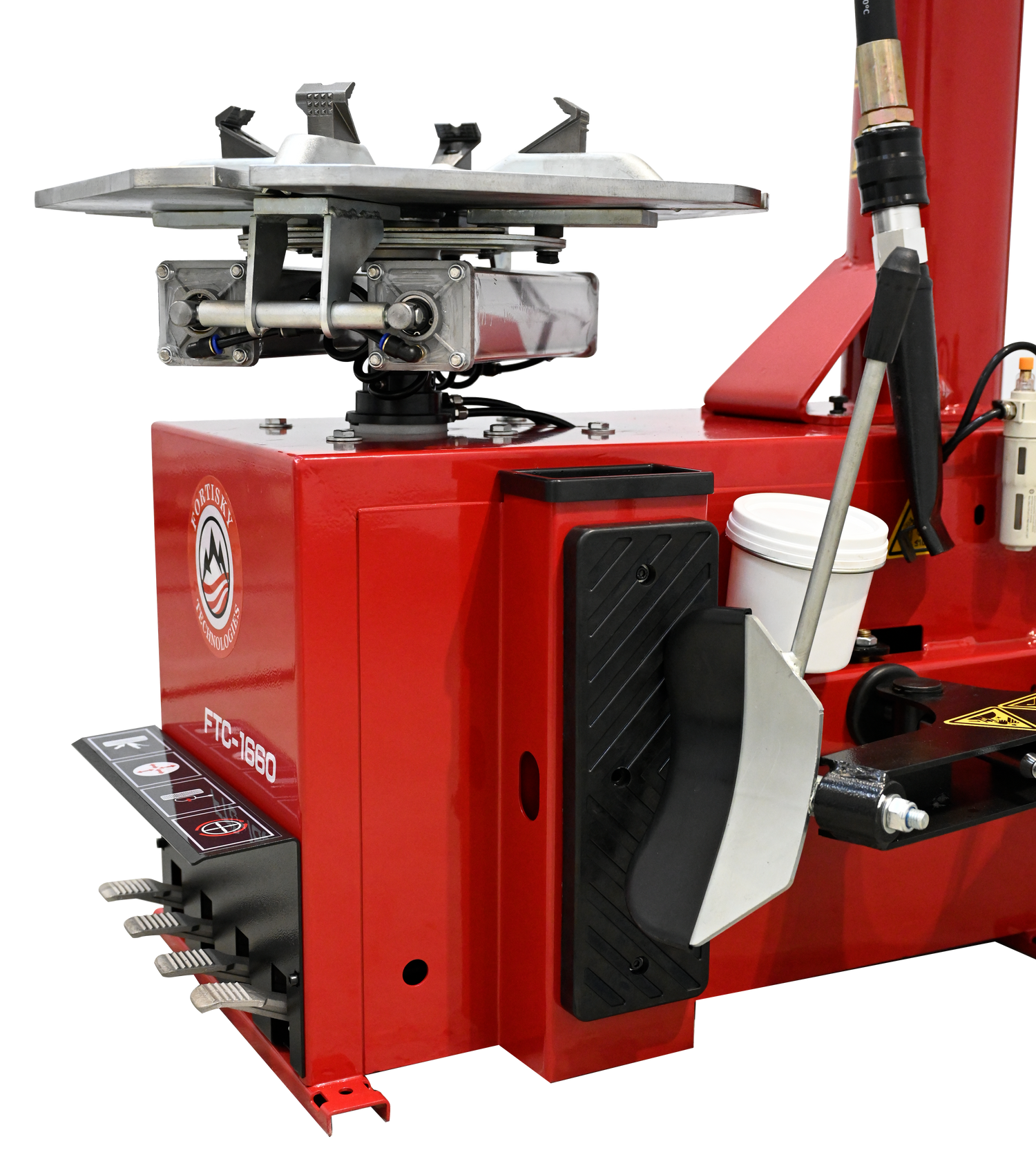

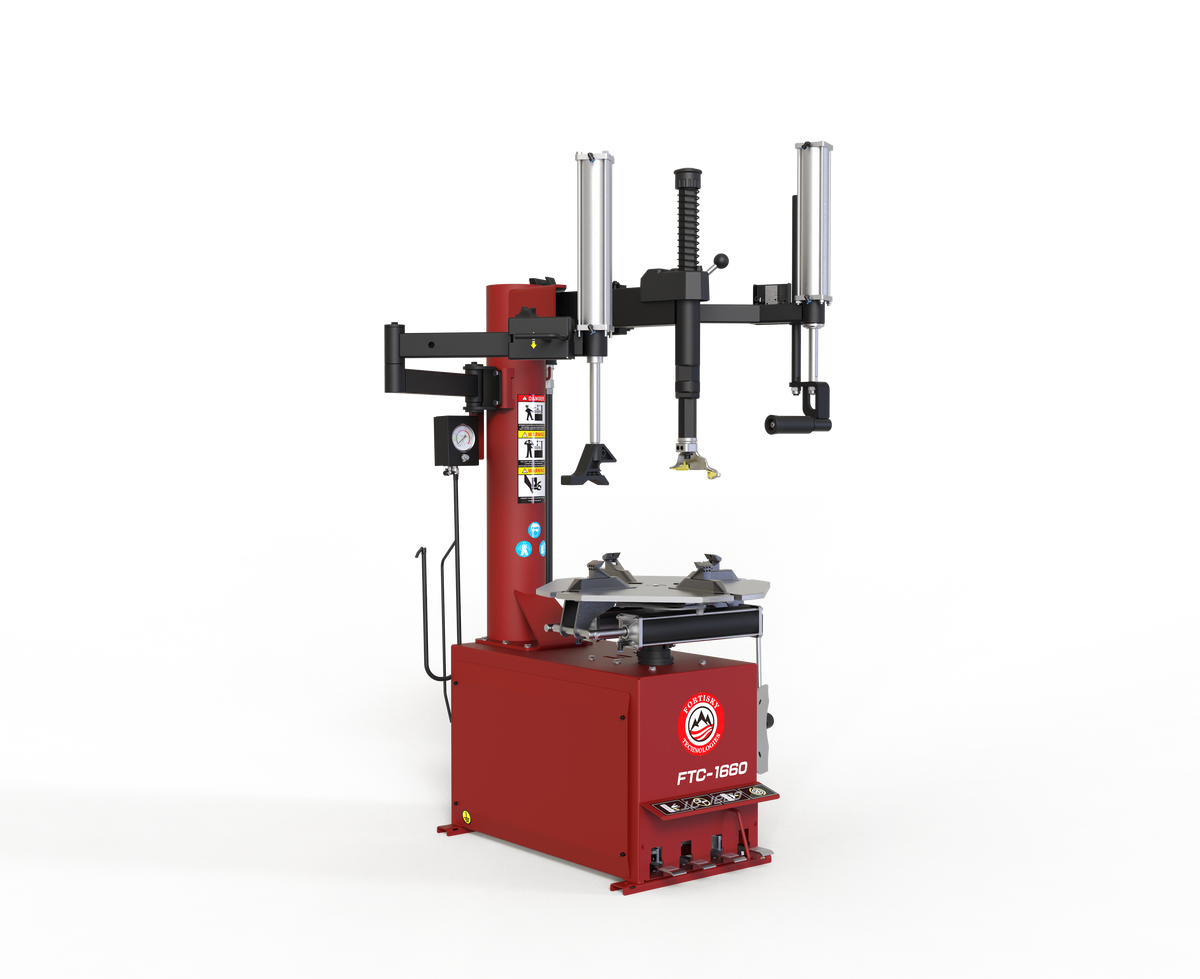

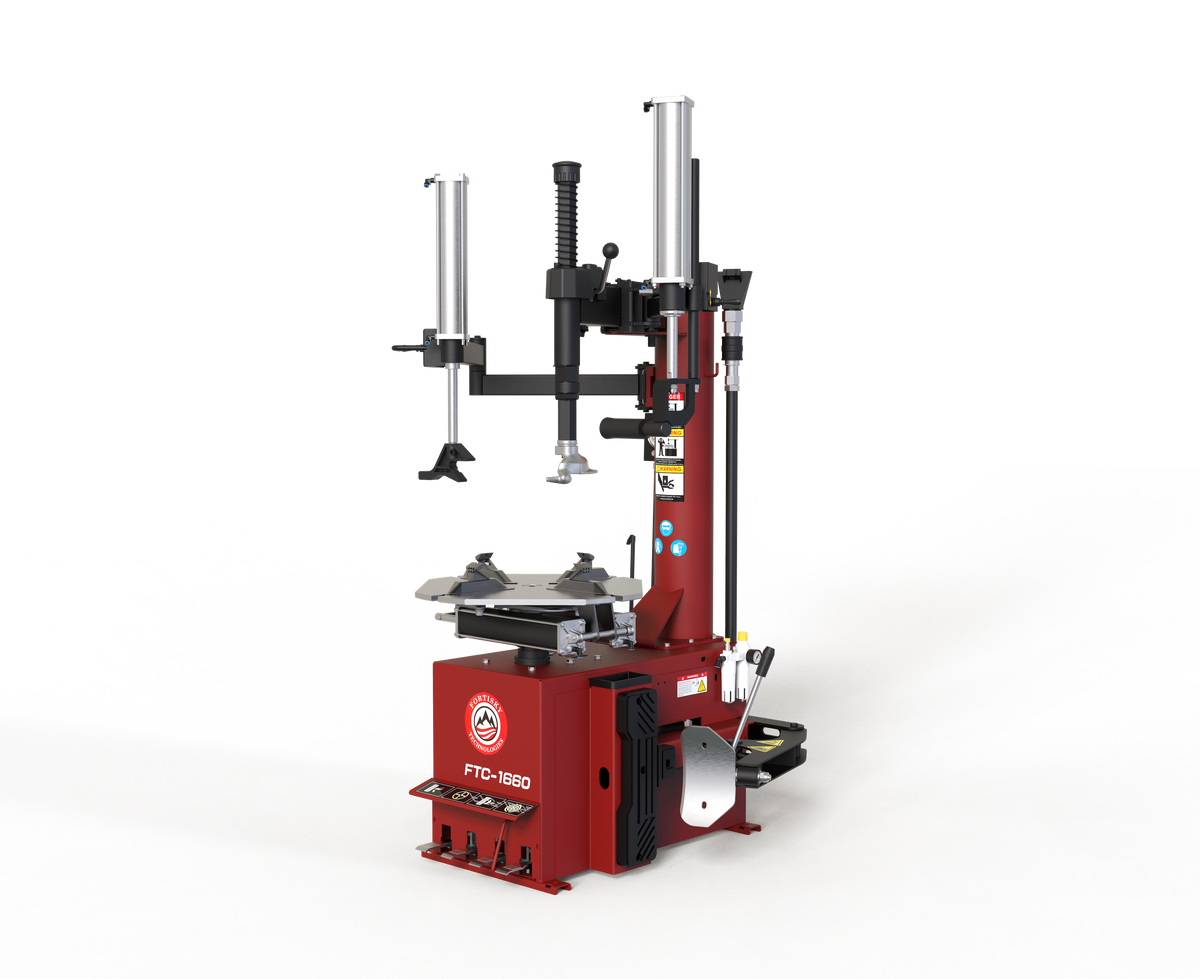

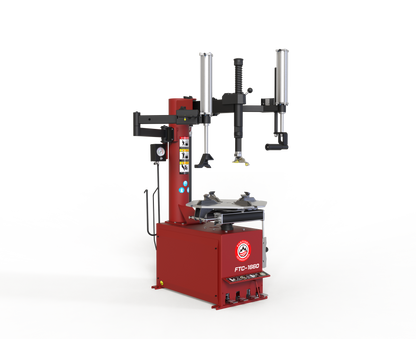

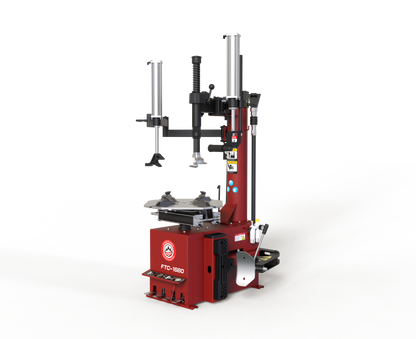

The FTC-1660 is a tire changer with a dual assist swing arm that pushes and pulls the tire, a built-in bead blaster, and a four-jaw auto-centering turntable that makes every mount smooth and quiet.

Built for the hobbyist, DIY mechanic, and car enthusiast who wants a real tire changer in their garage without paying professional shop prices. SKU: FTC-1660

• 186-steel cylinder on the bead breaker blade for power and long-term durability
• Working head is high-frequency quenched and hard chrome plated for strength, toughness, and wear resistance

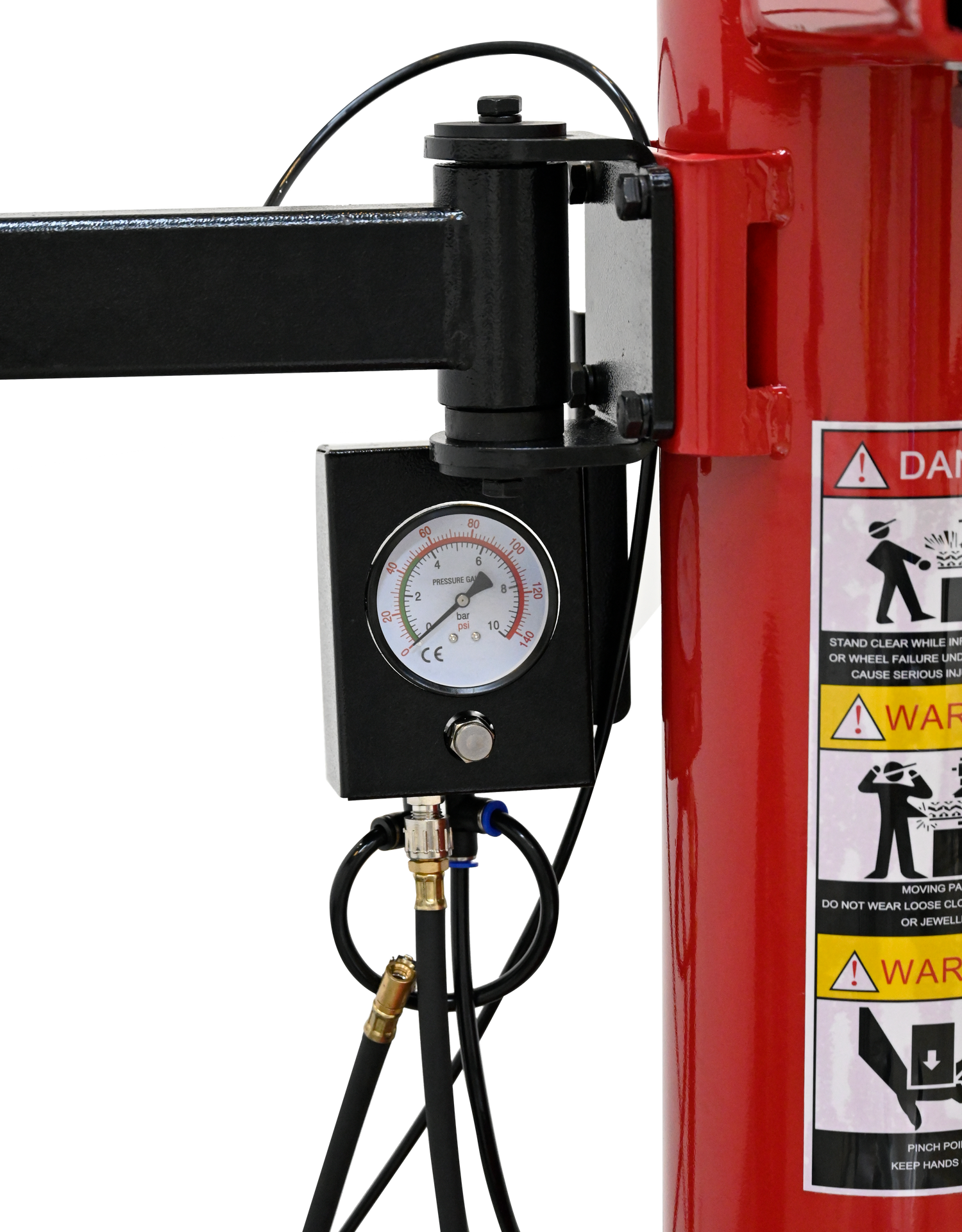

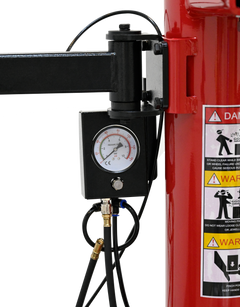

• Direct-connect turbo blast pipe delivers more inflating power to the bead seating area
• One-piece machined chuck base gives high rigidity and prevents deformation over time

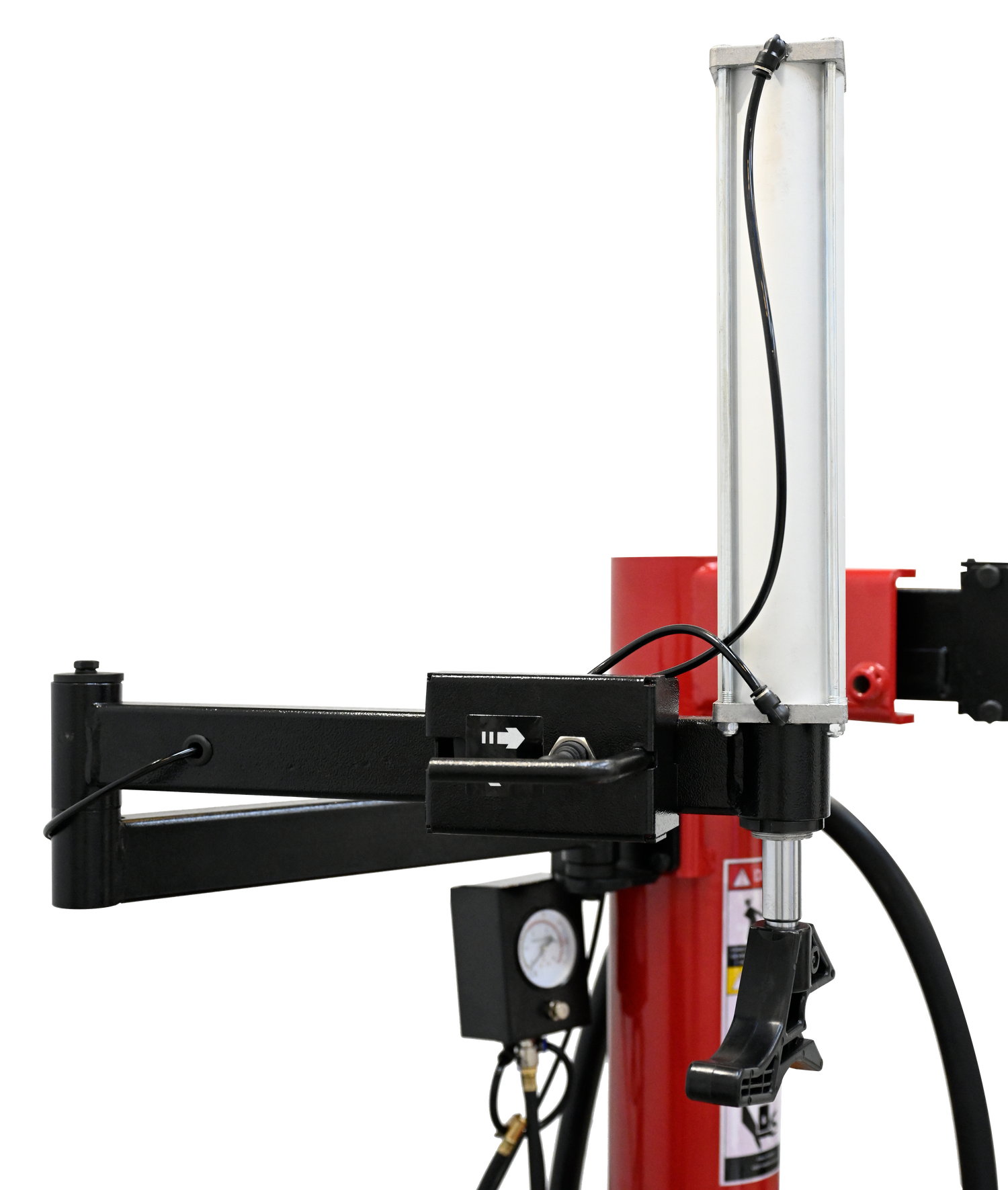

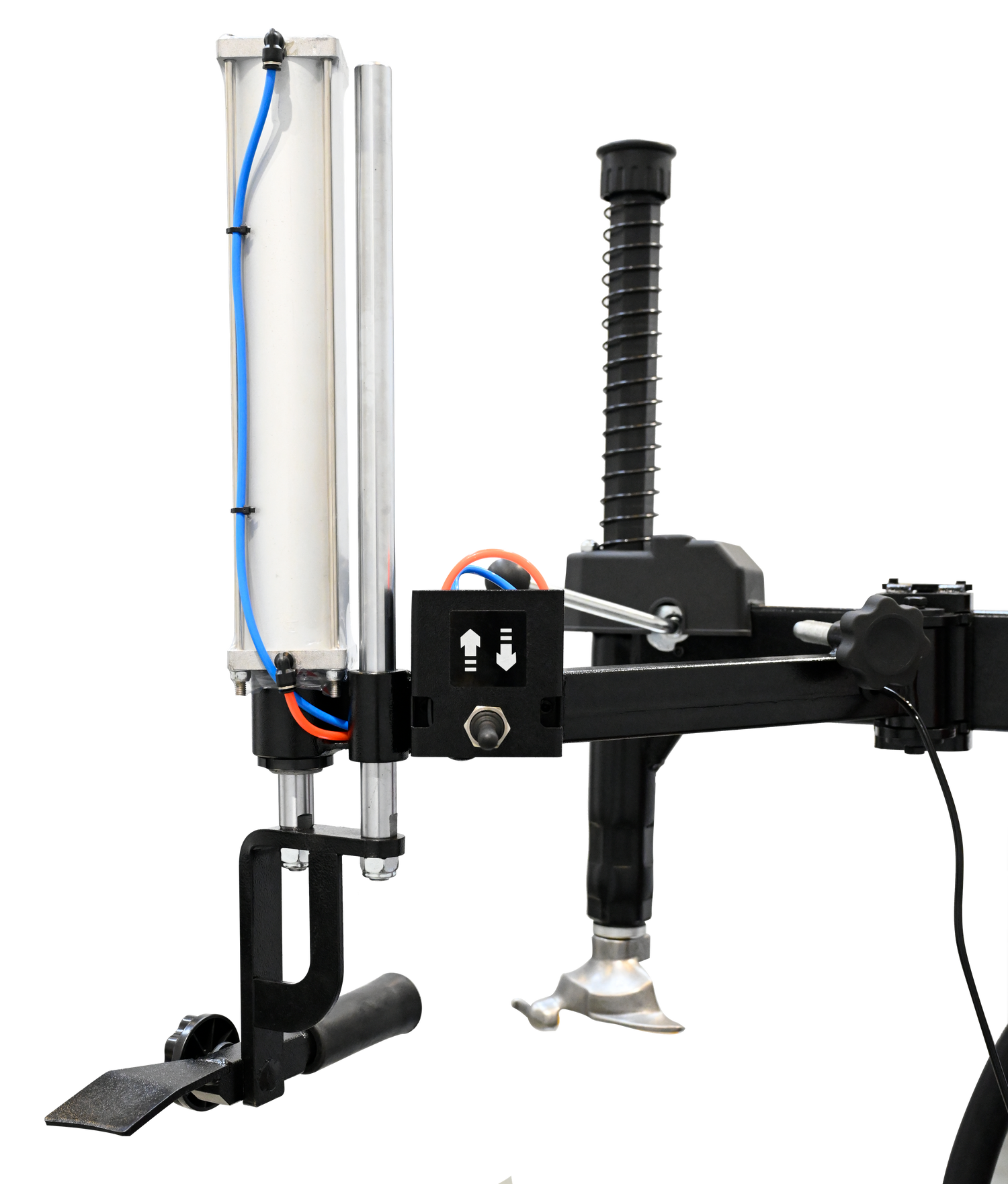

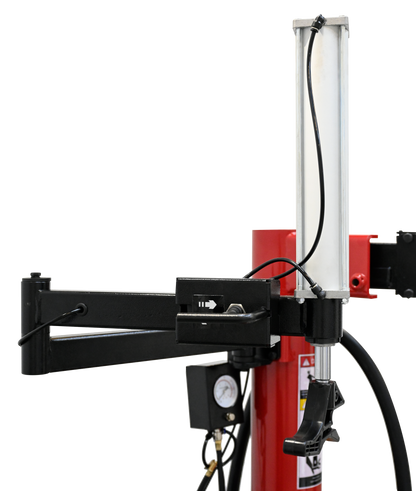

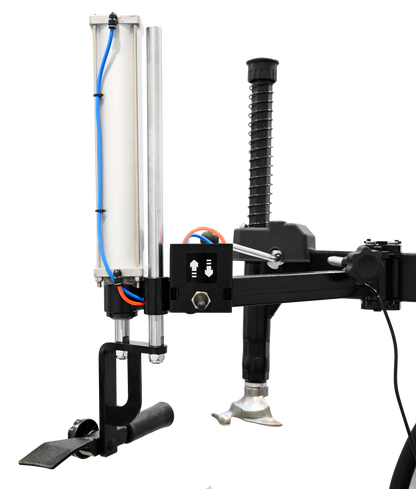

• Dual swing arm connects to the column and can both push and pull the tire
• Swing arm is fixed to the rod rather than the cylinder, eliminating the risk of cylinder explosion

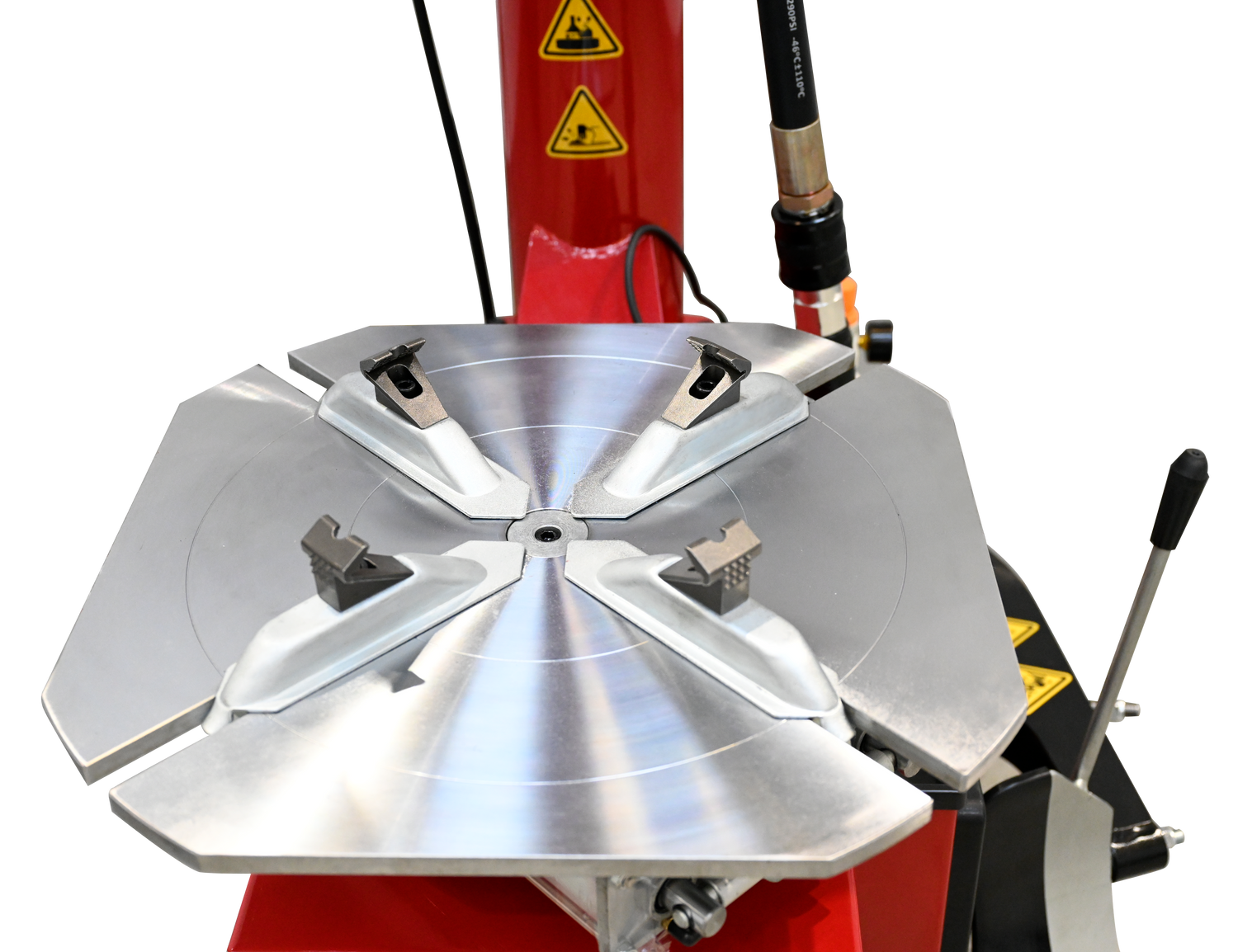

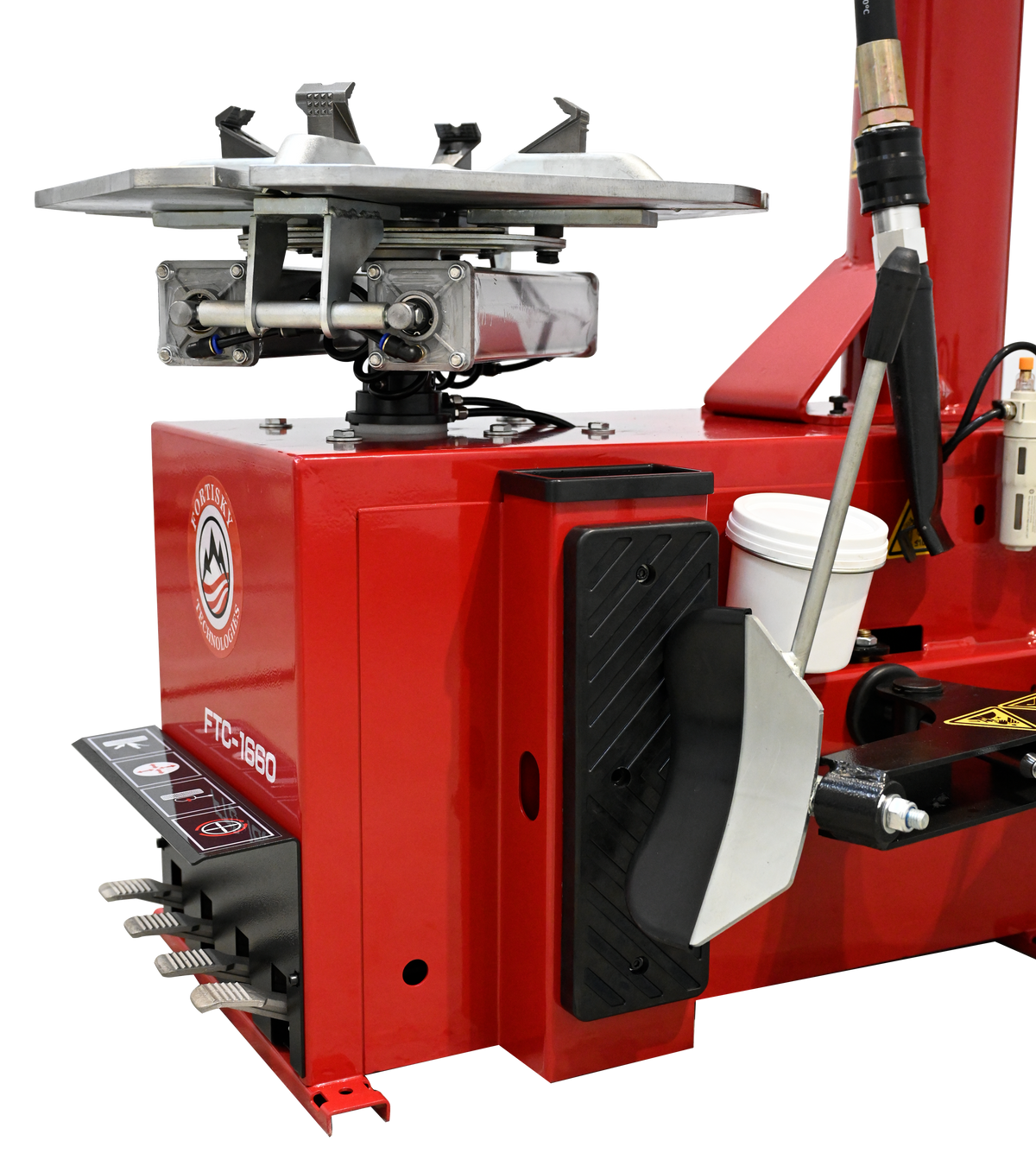

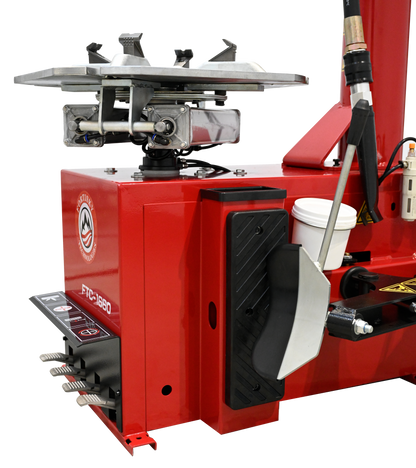

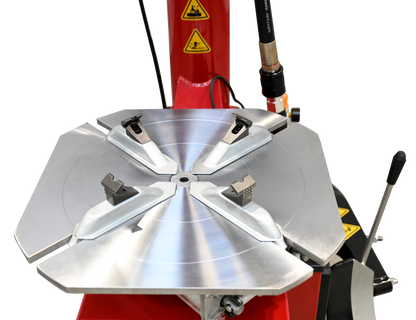

• Four-jaw auto-centering turntable with synchronized linkage centers from the outside in
• Working head design handles run-flat tires without scratching the wheel
• High-power motor with reduced noise output
• Embedded plastic covers on bead breaker, claws, and working head protect the rim and prevent slipping

• Model: FTC-1660
• Applicable rim size — outer: 10 inches – 22 inches
• Applicable rim size — inner: 12 inches – 24 inches
• Maximum tire diameter: 1,040mm (41 in)
• Maximum tire width: 380mm (15 in)
• Pressing force at 10 bar: 2,500kg (5,511 lbs)

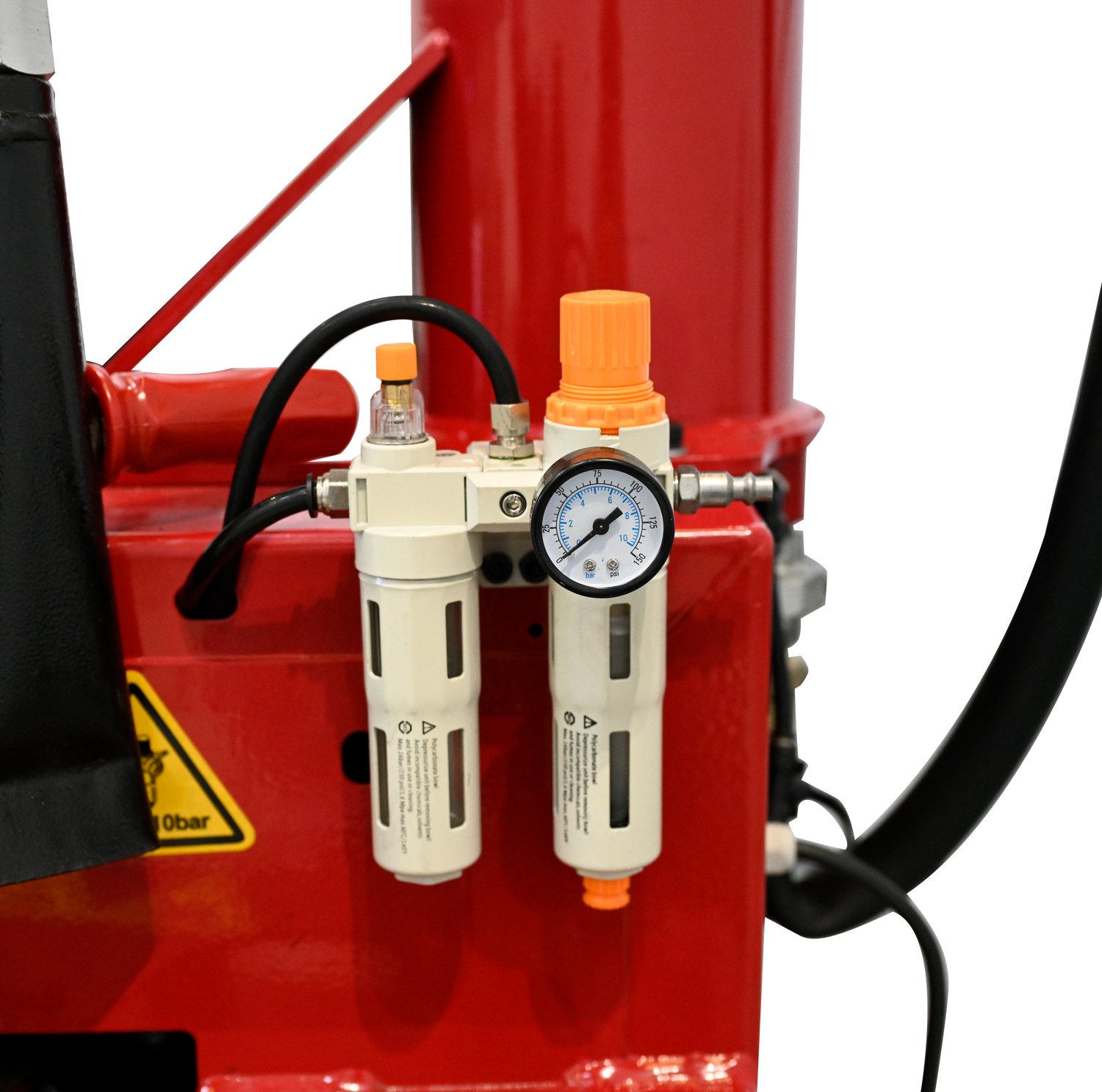

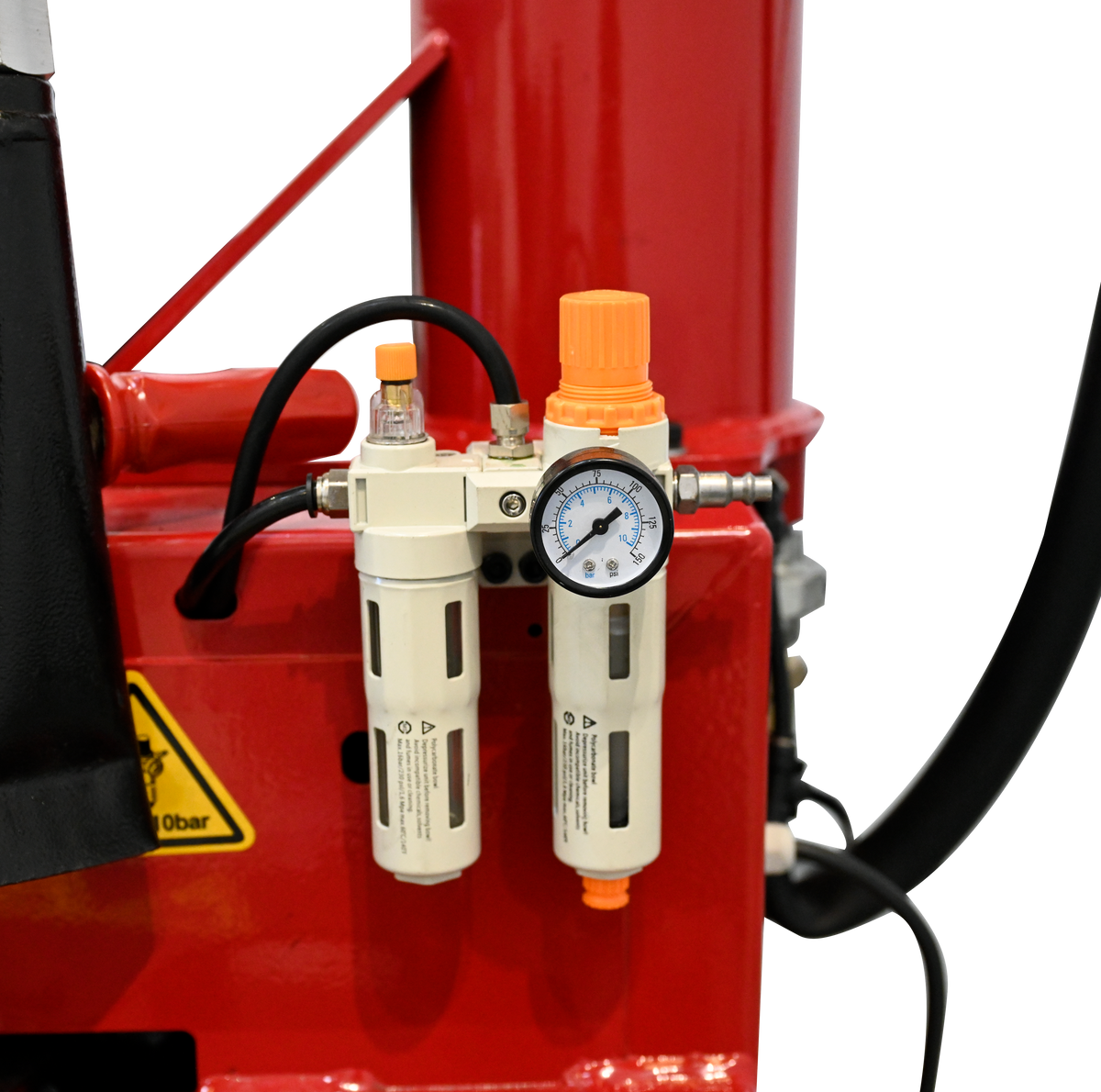

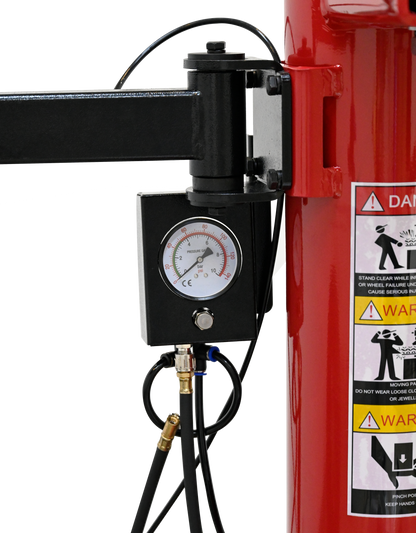

• Operating air pressure: 8 bar – 10 bar (116 – 145 psi)
• Maximum charge (inflation) pressure: 3.5 bar (50 psi)
• Motor power: 1.1 kW / 0.75 kW / 1.5 kW
• Bead breaker cylinder: 186-steel construction
• Working head: High-frequency quenched, hard chrome plated
• Turbo blast: Direct-connect pipe design for maximum inflation power
• Chuck base: One-piece machined — high rigidity, deformation resistant
• Turntable: Four-jaw synchronized linkage — auto-centering from outside in
• Swing arm: Dual assist — push and pull capable, rod-fixed for cylinder safety
• Rim protection: Embedded plastic covers on bead breaker, claws, and working head
• Run-flat compatible: Yes
• Power supply: 110V single phase / 220V 3-phase
• Noise level: Less than 70dB (A)
• Net weight: 220kg (485 lbs)
• Dimensions: 1,120 × 750 × 860mm (L × W × H)

Your Garage Deserves Better Than a Tire Iron

The FTC-1660 is the machine that turns tire day from a battle into a job. Mount it, set it up, and never pay a tire shop for a basic mount again.
