FortiskySKU FWB-8823

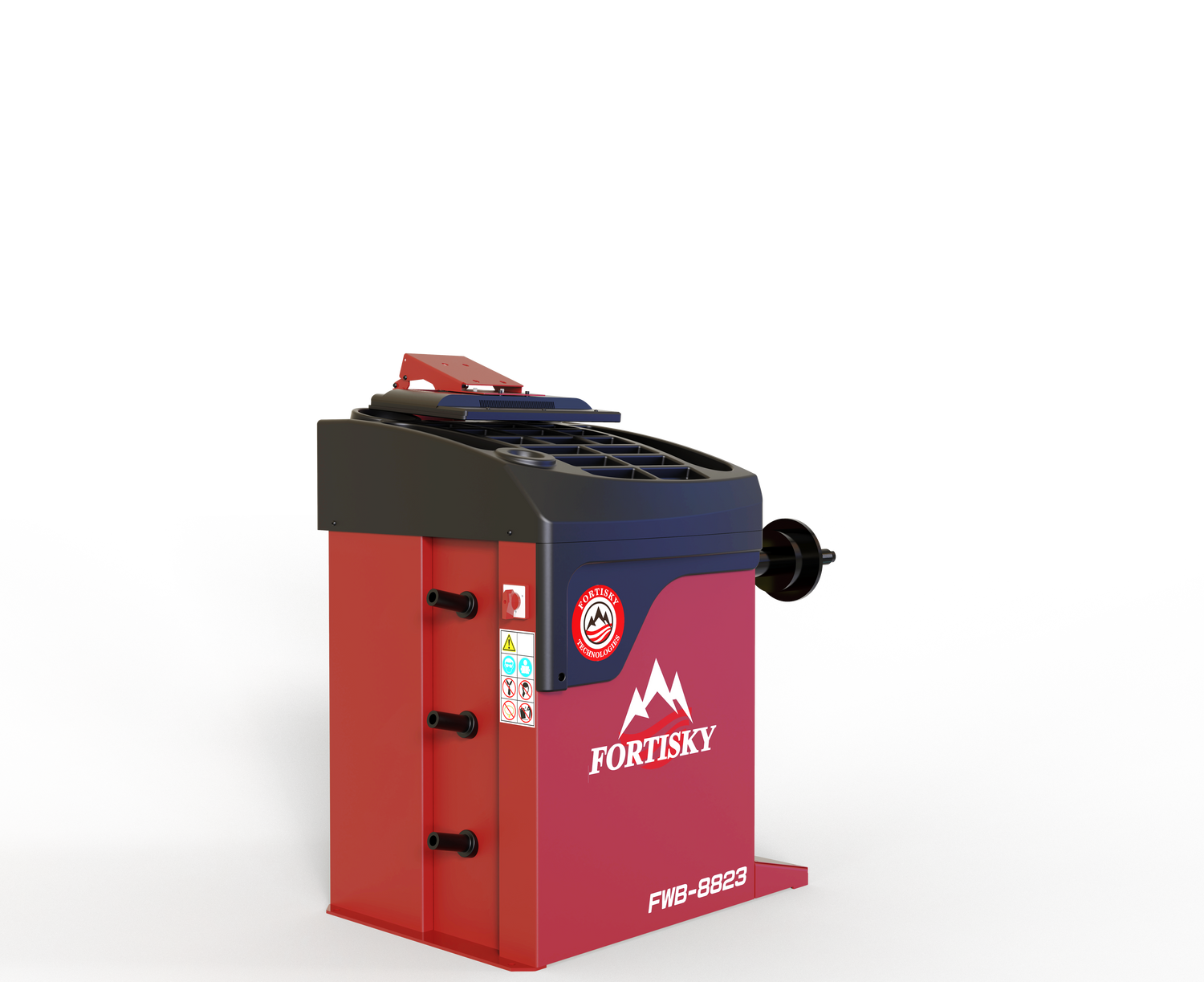

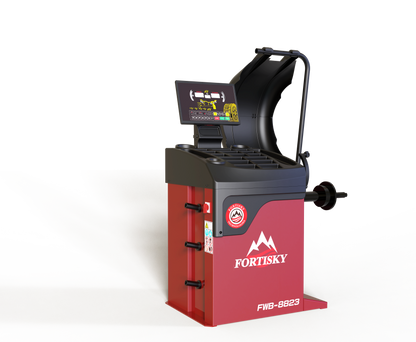

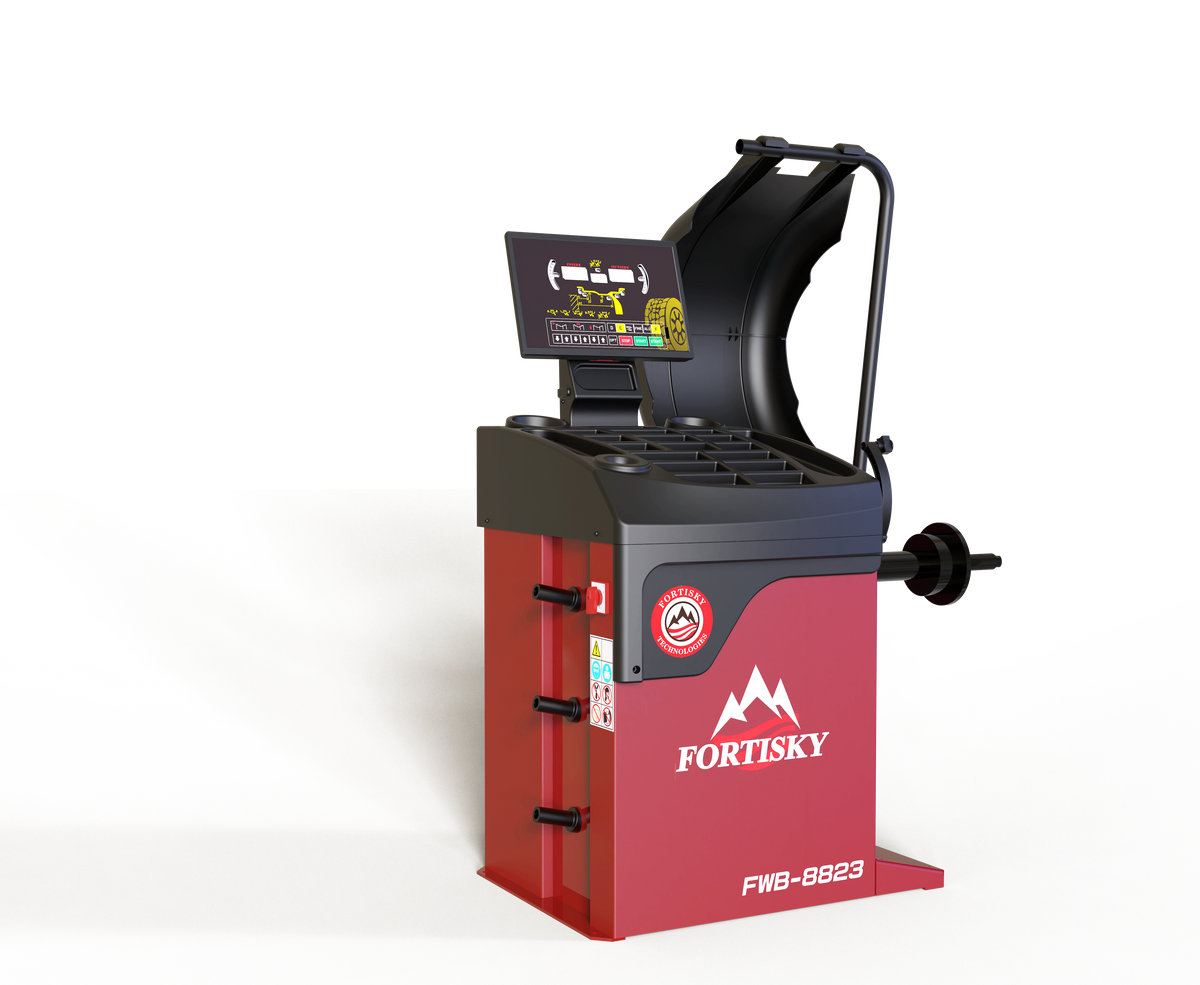

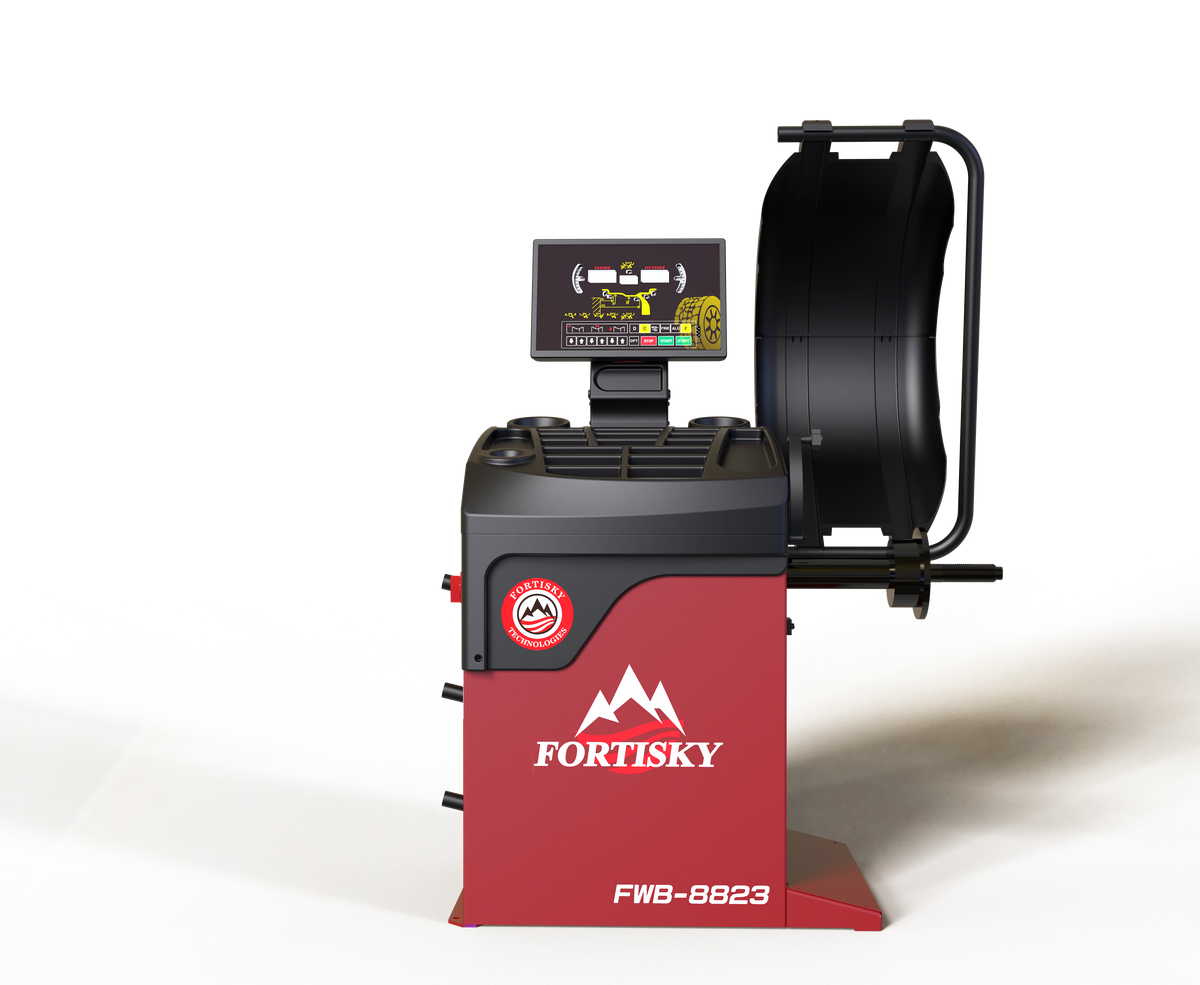

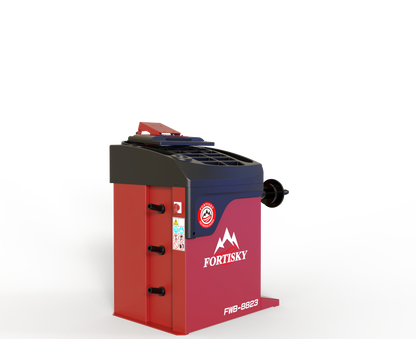

Fortisky | 2D Auto Wheel Balancer Self-Calibration with Laser Guidance FWB-8823

Fortisky | 2D Auto Wheel Balancer Self-Calibration with Laser Guidance FWB-8823

$1,767.00
$1,767.00
Sale Sold out
Shipping calculated at checkout.
Applicable rim size
up to 30 inches
Wheel width range
1.5 inches – 15 inches
Maximum tire weight
75kg (165 lbs)
Balance accuracy
±1g
Equilibrium speed
200 RPM
Equilibrium cycle time
7 – 10 seconds
Ships by freight · free to commercial addresses. Residential delivery $50, liftgate $75, or both $125, chosen at checkout.
Ships in 3–5 business days · 5–10 business days in transit, curbside delivery. The carrier calls to schedule.
Questions before you buy? Call 862-356-6869
View full details
Description

The FWB-8823 is a wheel balancer with 2D automatic data entry and laser-guided weight placement, making the process faster and more accurate than anything that relies on manual input. It reads the wheel, finds the spot, and lights it up for you.

Built for the DIY mechanic or enthusiast who wants professional results. SKU: FWB-8823

Features
  • 2D fully automatic data entry: gathers rim measurements via a linear grating measurement scale
  • No entering diameter or distance by hand: drop the guard, press start, and it spins
  • Smart balance-point positioning rotates the wheel to the correct position with a single key press
  • Built-in visual laser puts a light exactly on the weight placement spot
  • Built-in LED fill light for reading the wheel in low-light conditions
  • Multiple balance modes for standard steel rims through complex alloy profiles
  • Self-calibration keeps readings accurate over time

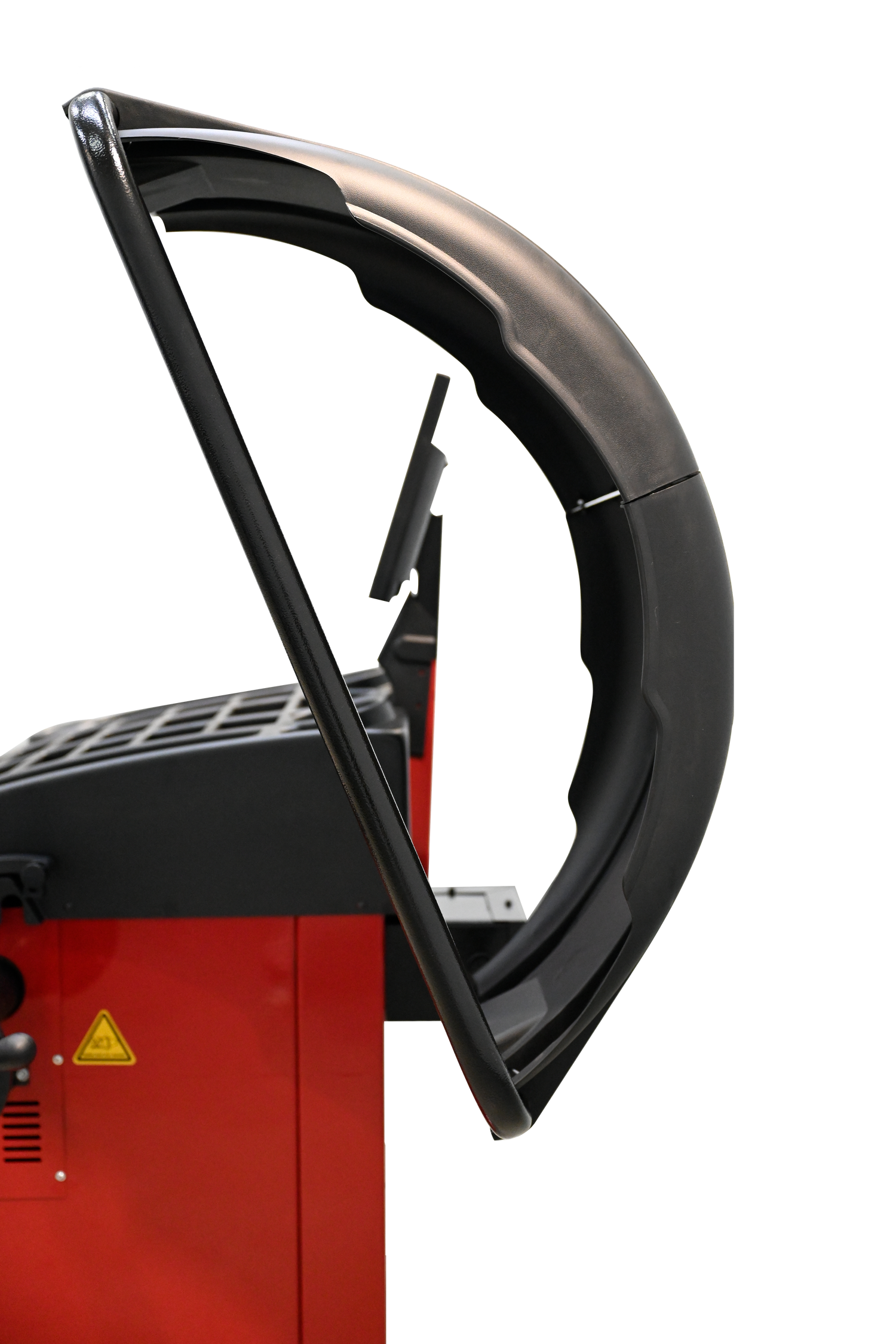

  • Ships complete with the wheel guard
Specs
  • Model: FWB-8823
  • Applicable rim size: up to 30 inches
  • Wheel width range: 1.5 inches – 15 inches
  • Maximum tire weight: 75kg (165 lbs)
  • Balance accuracy: ±1g
  • Equilibrium speed: 200 RPM
  • Equilibrium cycle time: 7 – 10 seconds
  • Measurement system: Linear grating scale — auto-captures rim diameter and distance
  • Data entry: 2D fully automatic
  • Display: LED screen
  • Laser guidance: Visual laser pinpoints exact weight placement location
  • LED fill light: Built-in — improves visibility in low-light environments
  • Balance point positioning: Smart auto-rotate and lock — one key press
  • Electronic brake: Yes — holds wheel stationary during weight application
  • Auto-start: Yes — activates when wheel guard is lowered
  • Self-calibration: Yes

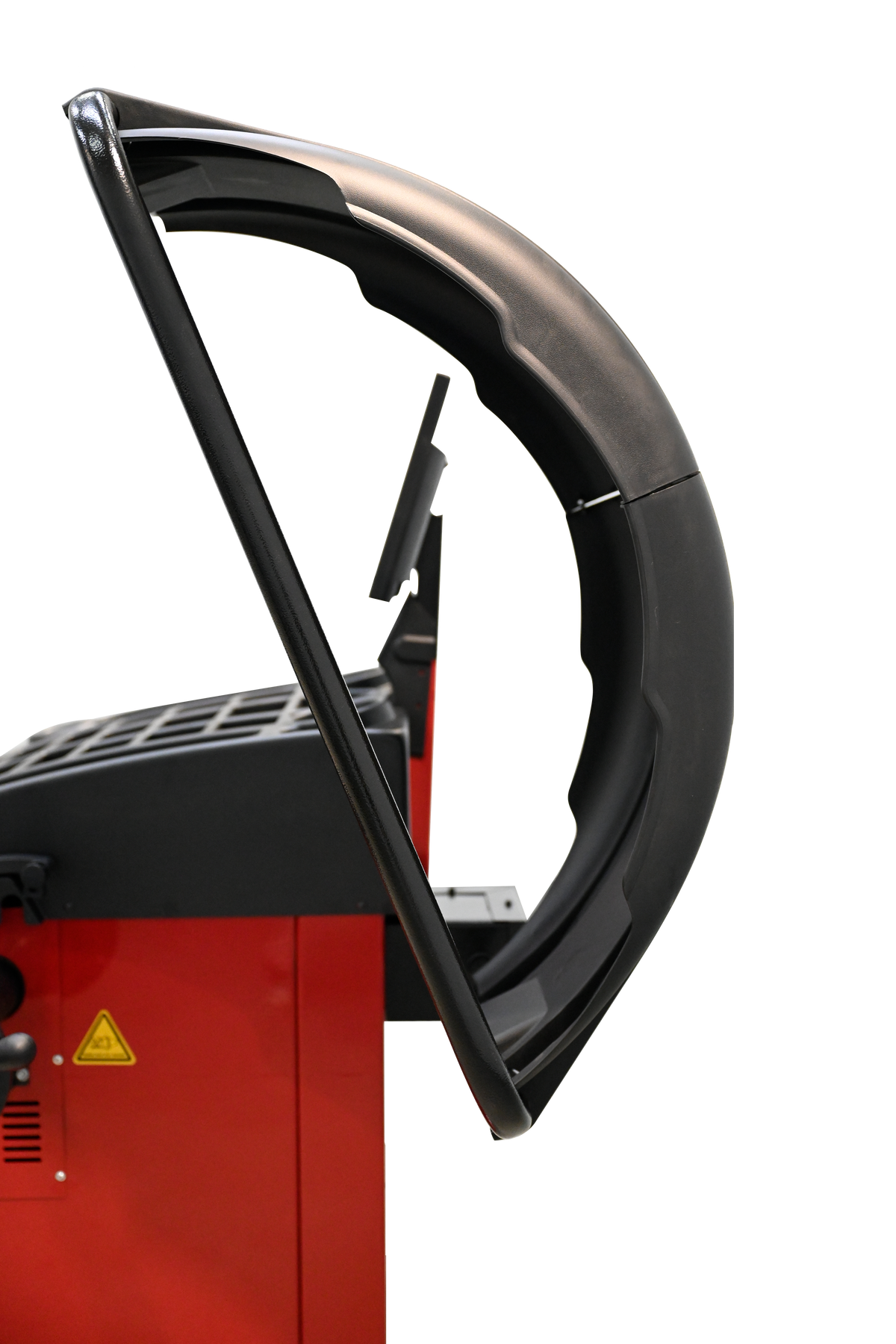

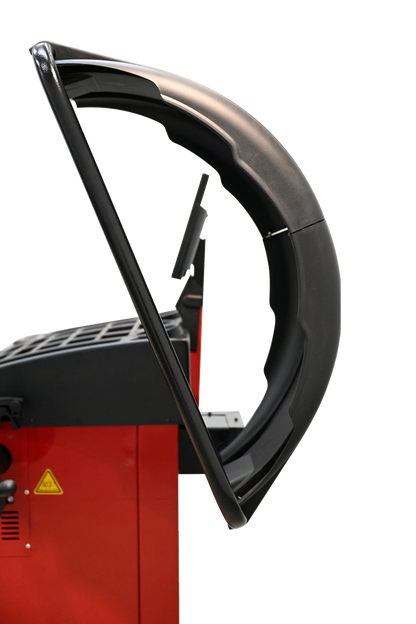

  • Wheel guard: Included
  • Motor power: 250W
  • Power supply: 110V | 60Hz | Single phase
  • Noise level: Less than 70dB (A)
  • Net weight: 114kg (251 lbs)
  • Working environment temperature: 0~50℃
Why Buy

Stop Chasing Steering Wheel Vibrations

The FWB-8823 is the balancer that makes every tire mount a clean one. If you're tired of repeat visits and wasted weights, this machine pays for itself fast.

FWB-8823 Manual

PDF

Technical Manual

 

Operations Demo

 
Video demonstration of assembly parameters and automated hardware setup sequences.
Fortisky Technologies | Warranty Policy

Warranty

Limited Warranty Coverage

  • Fortisky Wheel Service Equipment is covered by a 1-Year Limited Warranty against defects in materials and workmanship.

  • During the warranty period, Fortisky Technologies will repair or replace defective parts at its discretion.

  • Approved warranty replacement parts ship free of charge.

Warranty Exclusions

This warranty does not cover:

  • Normal wear and tear

  • Shipping damage

  • Abuse, misuse, or negligence

  • Improper installation or maintenance

  • Unauthorized modifications or repairs

  • Damage caused by operating the product outside intended use

Warranty Claims

To submit a warranty claim, please provide:

  • Proof of purchase

  • Product model number

  • Serial number

  • Description of the issue

  • Photos if requested

Contact Information

For warranty claims or product support, please contact Prime Shop Supply

Phone: 862-356-6869

Email: support@primeshopsupply.com

Address: 8401 Mayland Dr, Suite S, Richmond, VA 23294

Fortisky Technologies reserves the right to modify or update these policies at any time without prior notice.
